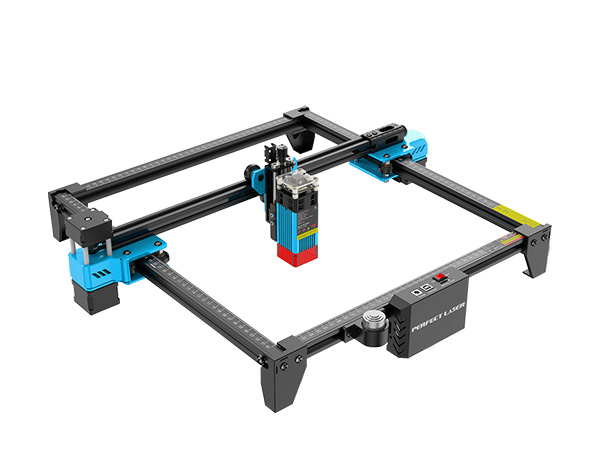

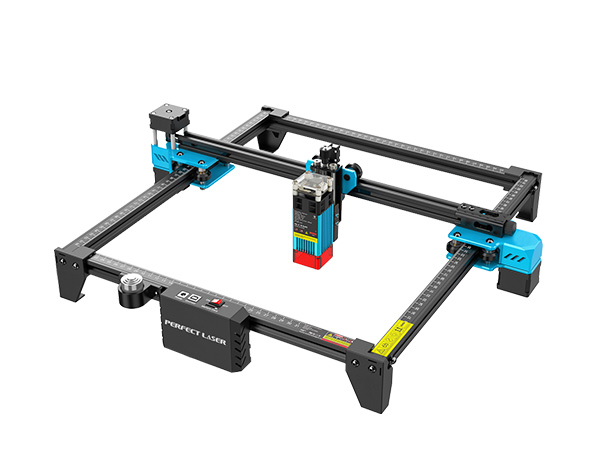

10W Intelligent Automatic Portable Desktop Small Laser Cutter Engraver

Model: PEDK-10


Product Introduction


Perfect Laser Intelligent portable small desktop laser cutter engraver adopts the new compressed laser technology, which makes the laser beam more fine and concentrated, and the engraving effect is more delicate.

Belt drive endows the machine with high-efficiency engraving, greatly improves the stability of engraving, and the desktop laser cutter engraver is more suitable for high-speed cutting.

The modular design of the whole machine, the main board adopts a high-speed intelligent module to integrate WiFi and Bluetooth functions, a variety of engraving connection methods, simple installation and easy to use, and effectively improve the user's engraving experience and engraving efficiency.


Product Features


1. Perfect Laser intelligent portable small desktop laser cutter engraver its whole machine adopts modular design and weighs only 4.3kg. Its easy to install and occupies a small area, which is convenient for placement and transportation. It can be placed on the table for operation.

2. Compression laser technology utilizes FAC lens - collimating light function, the minimum light spot value can be reached up 0.08mm, with a longer effective energy range, higher energy density, stronger cutting ability, can guarantee higher engraving speed and higher engraving accuracy at the same time.

3. Y-axis two stepper motors run simultaneously, which can accurately position the desktop laser engraving machine and make the carving lines more smooth.

4. Support computer online and wireless network control engraving, Support TF card engraving, Support mobile phone app. Multiple engraving connections to improve user engraving experience and engraving efficiency.

5. The light and handy protective cover adopts modular magnetic suction design, easy to disassemble, installation is very simple.

6. The filter adopts the funnel-shaped design of fluid physics, which can effectively prevent the smoke from spreading upward and prevent the smoke from damaging the laser.

7. Low noise, no consumables, minimal pollution to the environment.The desktop laser engraving machine is a high quality environmental protection engraving machine.

8. Stable frame and axis controls ensure precise detail during engraving. The engraved picture is clear and beautiful.


Application


Support engraving materials of the desktop laser engraving machine include plywood, acrylic board, pine board, paper (not white), Kraft paper, carton, leather, some dark plastic boards, pebbles, powder-coated metal, painted metal, plated metal, anodized Alumina, stainless steel, MDF, etc.

Cutting materials: plywood, acrylic board, pine board, paper, Kraft paper, carton, leather, MDF,etc.


Technical Data


Product Name

10W Intelligent Automatic Portable Desktop Small Laser Cutter Engraver

Model

PEDK-10

Laser Power

10W

Laser Wavelength

445±5nm

Engraving Area

300 × 300mm

Engraving Accuracy

1mm

Spot Size

0.08×0.08mm

Main Control Board

EPS 32-bit motherboard

Engraving Method

Computer/ Mobile APP

Data Transmission

USB / WiFi Connection

Document Format

NC/DXF/BMP/JPG/PNG/G code

Engraving Mode

image engraving, text engraving,

contour engraving, pixel engraving

Operating Software

Laser GRBL, LightBurn

Software Support Languages

Chinese, English, Italian, French, Russian

APP support Languages

Chinese, English

Support Systems

Windows XP/Win7/Win8/Win10/

Win11 and Mac System(LightBurn)

Product net weight

4.3KG

Product size

510mm*570mm


×
