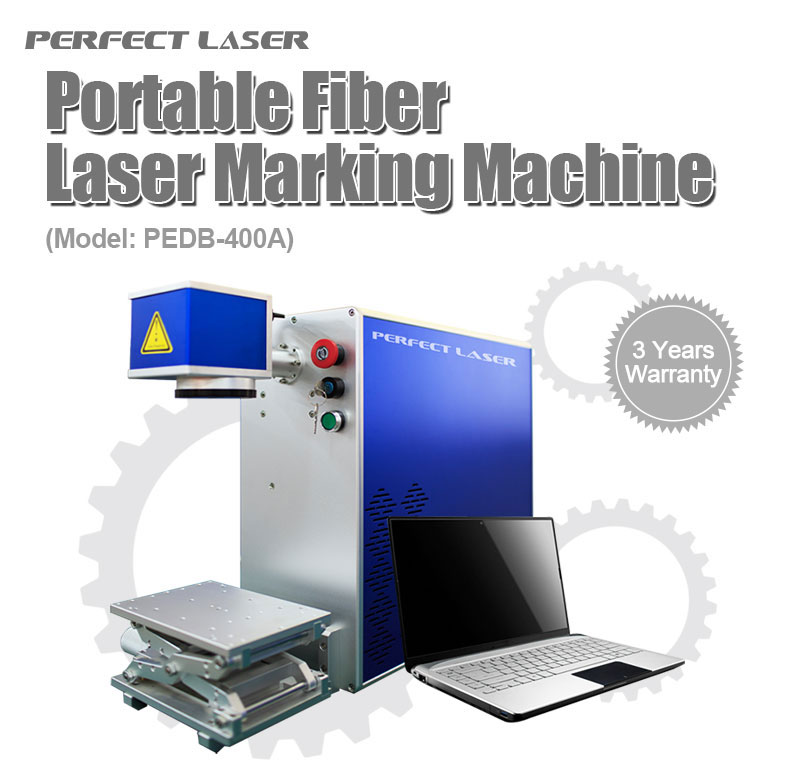

PEDB-400A High Quality Portable Fiber Laser Marker Machine

Style NO. :

Description

Perfect Laser is a world famous manufacturer and supplier of portable laser marking machine.

Perfect Laser adopts the most advanced international technology and the highest quality laser source, combined with German IPG fiber technology, and is committed to innovating a unique portable fiber laser marking machine. After an interview, this portable laser marking machine has won praise from customers both at home and abroad. Rated as "mobile portable laser marking machine". Its compact size and easy handling are the most praised advantages. It can meet the various needs of customers and is definitely a necessary model for portable fiber laser marking machine.

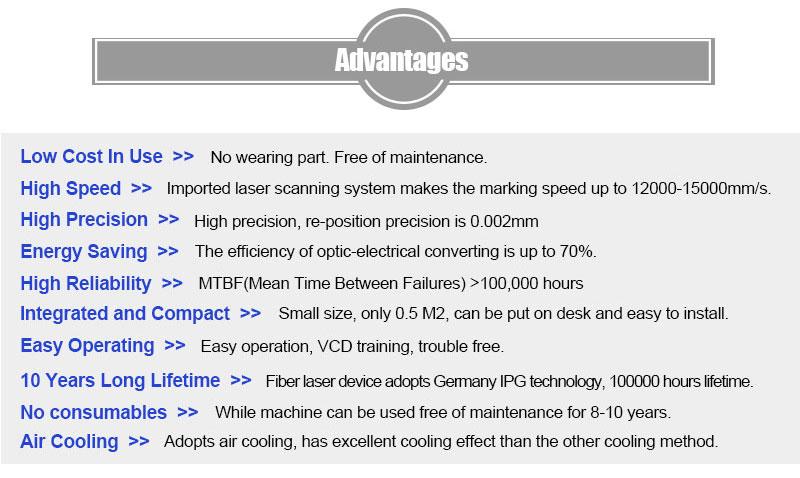

Product Features

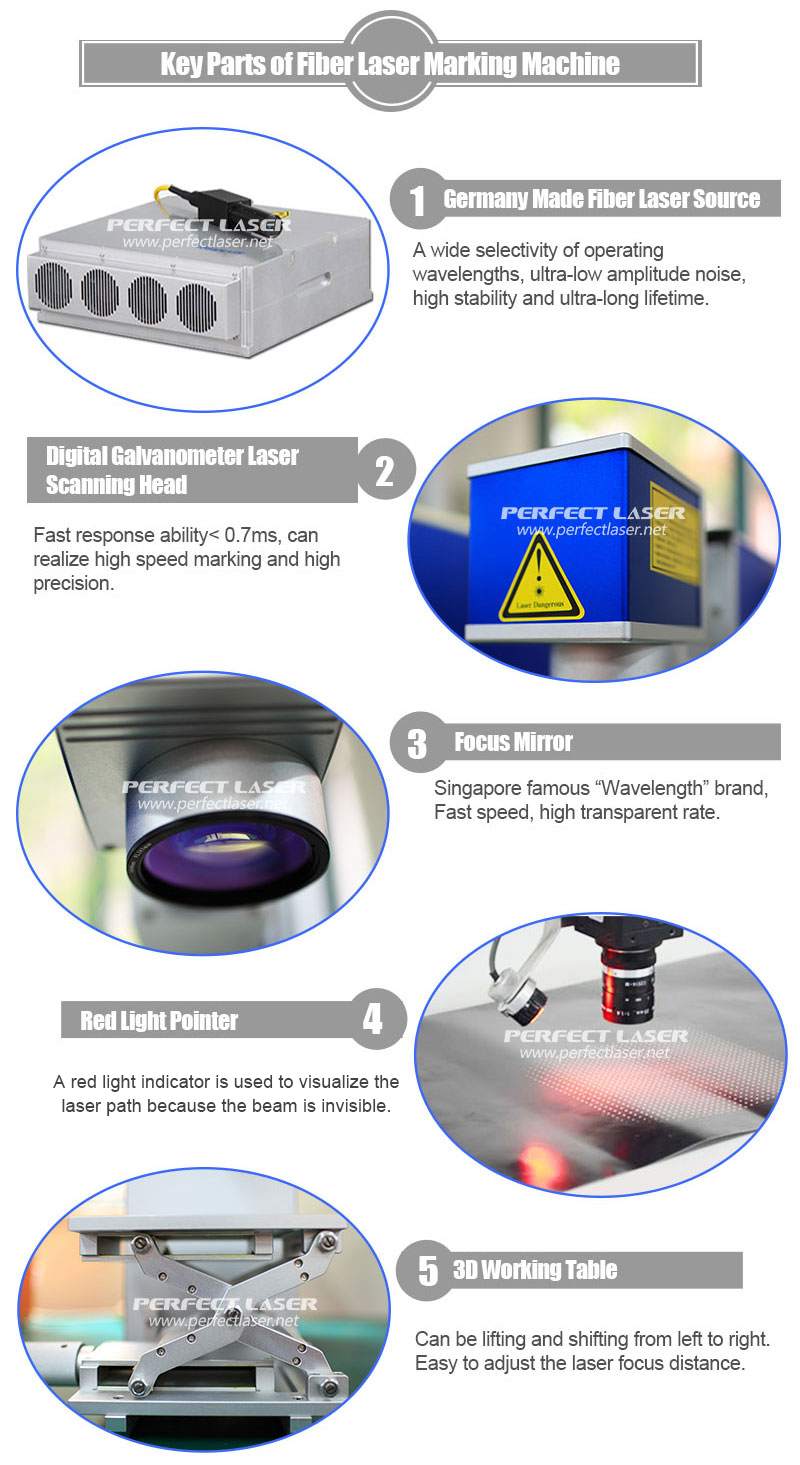

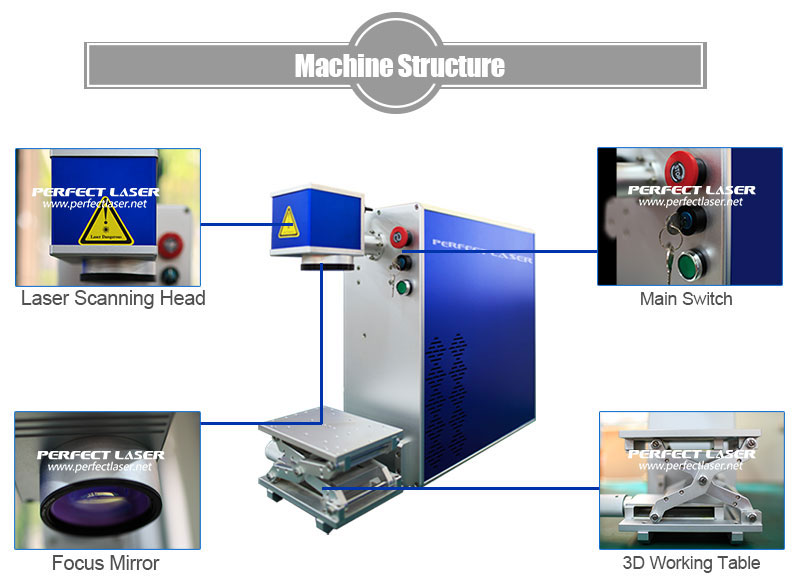

1. Adopt fiber laser to output the laser, and the super high-speed scanning galvanometer system of this CNC laser marking machine is used to implement the marking function.

2. High photoelectric conversion rate.

3. The portable fiber laser marker adopts air-cooled cooling, which is better than water cooling.

4. Compact size, the CNC laser marking machine is easy to handle and install.

5. The output beam of the portable fiber laser marker has good quality and high reliability.

6. The marking depth of the portable fiber laser marking machine is up to 1mm.

7. 10 years of operating life, this energy-saving model CNC laser marking machine are more affordable.

8. The marking speed of the CNC laser marking machine is 3 to 12 times that of the traditional first-generation lamp-pumping marking machine and the second-generation semiconductor portable fiber laser marker.

9. No consumables, low power consumption, maintenance-free.

10. Permanent super clear mark, the portable laser marking machine has irreplaceable advantages.

Application

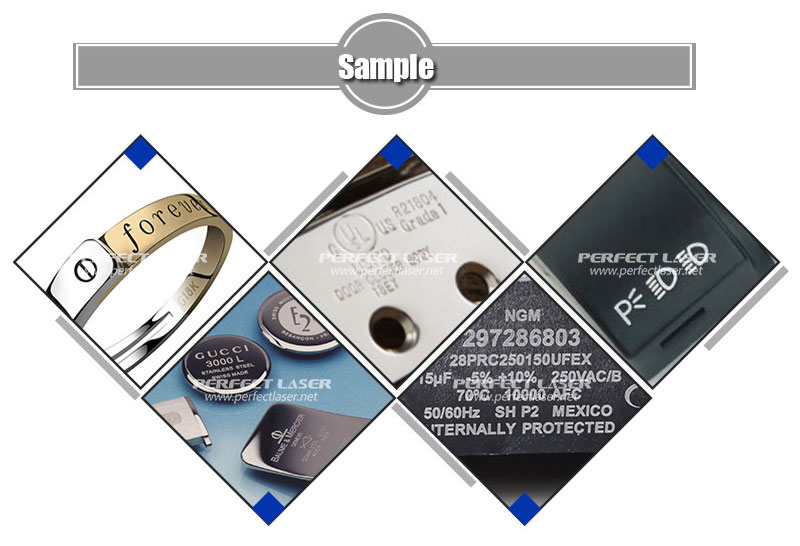

This portable fiber laser marking machine is widely used in Electronics and communication tools , IC chips, computer accessories and electrical appliances, all kinds of precise conponents, hardware tools, instrument and meter, aerospace devices, jewelry, clocks, gifts, office supplies, trademark signs, sanitary ware, table ware, food, beverages , tobacco and alcohol and many other industries for marking logos, symbols, words, and the portable fiber laser marker also can be used in production line for mass quantities work.

Technical Data

Model No

PEDB-400A

PEDB-400B

PEDB-400C

PEDB-400D

Type

Portable

Desktop

Colorful

Standby

Computer

Not includes PC

Includes PC

Laser Source

IPG Series

Pulsed, High Energy Ytterbium Fiber Lasers

Mode of operation

Pulsed

Polarization

random

Nominal average output power

10W - 30W For PEDB-400A /400B /400C

10W - 50W For PEDB-400D

Central emission wavelength

1060-1070 nm ,Q-switched operation Output power adjustment range 10%-100%

Emission Bandwidth

(FWHM)

<10 nm

Long-term average power instability

<5%

Pulse width, (FWHM)

100 ns

Laser switching ON time

180 μsec

Laser switching OFF time

180 μsec

Pulse Repetition Rate* kHz

20-80 kHz

Energy per pulse (PRR = 20 kHz)

0.95 mJ

Typical beam quality, M2

<1.8

Output fiber delivery length

3m

Operating voltage

220V

Max. Power consumption

600W

Net Dimensions

70*20*50cm

80*38*72cm

70*20*50cm

143*62*101cm

Net Weight

44 kgs

53 kgs

44 kgs

130 kgs

Gross Weight

60 kgs

70 kgs

60 kgs

200 kgs

Laser system

Scanning Speed

0-10000mm/s

Marking Speed

0-7000mm/s

Marking size

110mm×110mm (F-theta 160)

Spot size

≤ 40 micron (F-theta 160)

Cooling unit

Air cooled

Pilot laser

650nm diode laser, visible red light for marking guide

Continuous working time

≥16h

Humidity

4585% (no condensation)

Operating temperature

0~40℃

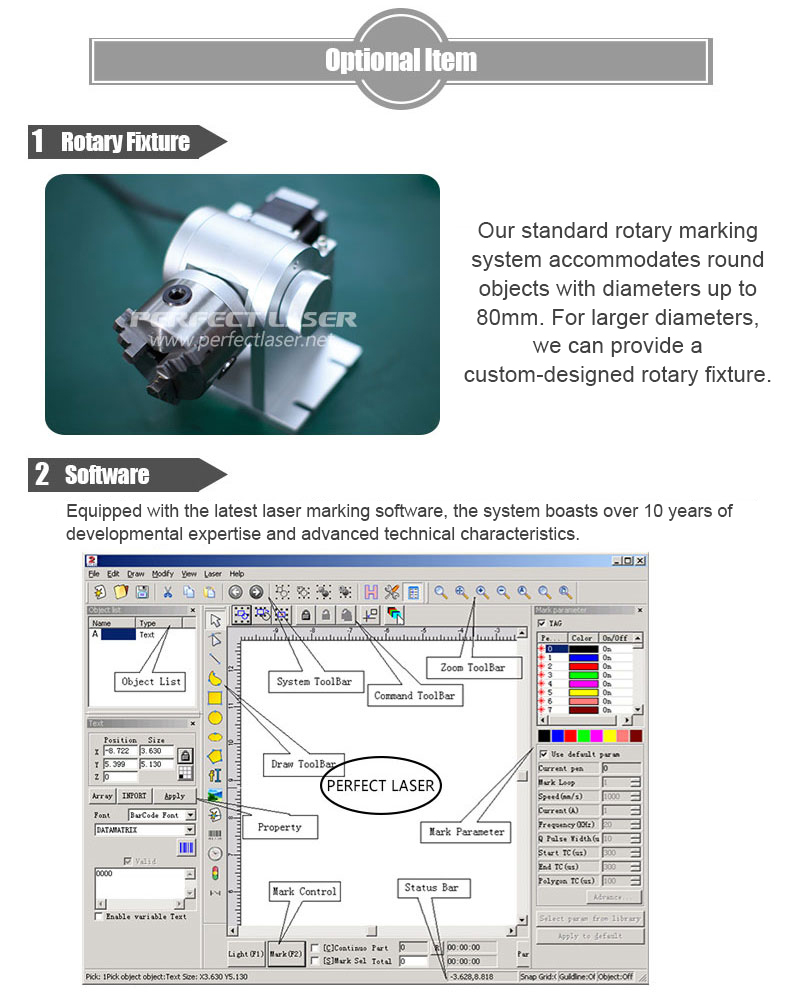

Control units

Laser Mark (English Version)


Video
