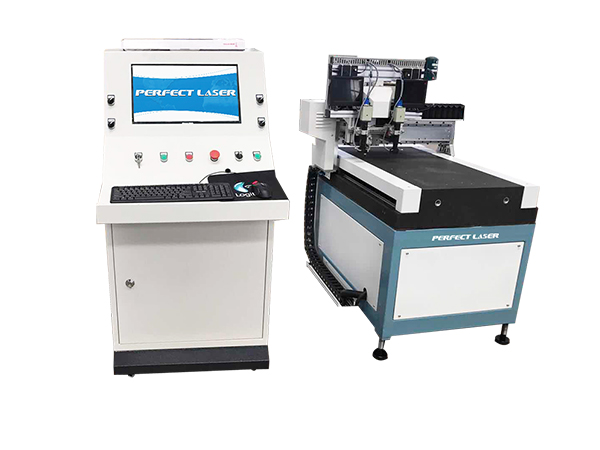

CCD Automatic Ultra-thin Glass Cutting Machine-PEG-6060

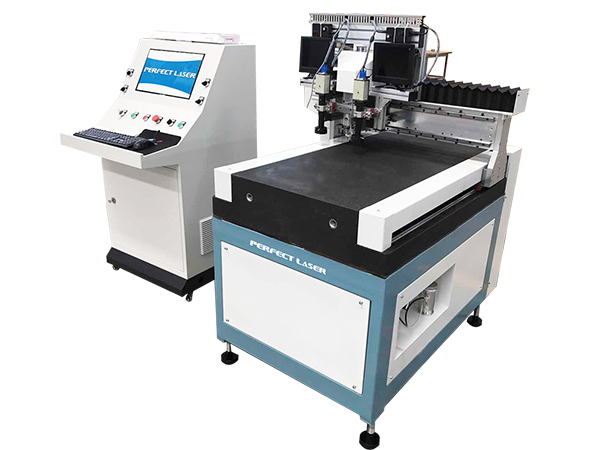

CCD Automatic Ultra-thin Glass Cutting Machine-PEG-6060
CCD Automatic Ultra-thin Glass Cutting Machine-PEG-6060
CCD Automatic Ultra-thin Glass Cutting Machine

Model: PEG-6060


Product Introduction


Perfect Laser’s fully automatic ultra-thin glass cutter machine is engineered for precision and efficiency. Featuring a dual-CCD positioning system with 50x to 200x magnification, it ensures pinpoint accuracy in every cut. Built with high-quality imported components and professional intelligent software, it optimizes cutting paths for high efficiency, precision, and yield. Designed for ease of use, it requires no technical expertise, making it the perfect solution for seamless ultra-thin glass cutting.

Product Features


1. The automatic glass cutter machine undergoes rigorous aging treatment to effectively ensure that the worktable remains deformation-free with precise parallelism.

2. A Grade 0 marble worktable with a thickness of 200mm is selected, ensuring flatness controll within ±0.02mm, providing a stable foundation for cutting operations.

3. The cutting head has a 360-degree rotation function and adopts an up-and-down cutting method, which can accurately cut any straight line and various special-shaped glass. Paired with a Japanese-imported servo motor, it ensures higher efficiency and stable cutting.

4. The automatic cnc glass cutter is equipped with imported components, including a U.S. Galil control card and a Japanese SMC pneumatic proportional valve, ensuring stable and durable operation. It responds quickly, instantly adjusting gas flow and pressure according to control signals to maintain cutting quality.

5. A high-precision dual-CCD positioning system, combined with an electronic lens, LCD display, and optical magnifier, enables accurate detection and positioning of the cutting path.

6. The cnc glass cutter has the function of automatically adjusting the cutting knife pressure, and the cutting process is fast, accurate and stable. During shape glass cutting, automatic pressure adjustment enhances cutting quality effectively.

7. The software supports flexible combination and sequencing of cutting dimensions, automatically generating the optimal cutting plan to enhance efficiency. It also allows for secondary manual adjustments, further improving material utilization.

Application


1. Application industries

Fully automatic mirror cutting machine is widely used in multiple industries, including the construction industry, automotive industry, electronics industry, furniture and home decoration industry, etc


2. Application materials

The mirror cutting machine is suitable for cutting ultra-thin glass with OGS process, OLED glass, display glass, photoelectric glass, liquid crystal glass, mobile phone glass, and touch screen glass.

Technical Data


Equipment Specifications

Maximum Glass Cutting Size

600*600mm

Workbench Height

900±30mm

Equipment Weight

0.75T

Cutting Thickness

0.08~6mm

Cutting Parameters

Straight Line Parallelism

≤±0.05mm/500mm

Diagonal Accuracy

≤±0.10mm/300 (Accuracy based on cutting line before breaking)

Cutting Bridge Speed

0~60m/min. (Adjustable)

Cutting Bridge Acceleration

≥3.0m/s²

Cutter Head Carrier Speed

≥60m/min

Cutter Head Carrier Acceleration

≥6.0m/s²

Cutting Head Positioning Accuracy Error

≤±0.001 mm

Power/Power Requirements

Installation Power Requirement

380V/50HZ

Actual Equipment Power

4KW

Breaking Machine

0.75KW Fan

Compressed Air

0.6MPA

Equipment Performance

Cutting Tool Holder

Cutter head can rotate 360 degrees, up-down cutting

Oil Supply Method

Pneumatic automatic oil injection, synchronized with cutting

Conveying Device

Air floatation

Mechanical Components

Lead Screw Guide Rails

Taiwan HIWIN, grinding grade

Cutting Wheel/Clamp

Japan Nikken, lifespan 30,000-50,000 meters per piece (straight line)

Bearings

Japan NSK

Workbench Surface

Grade 0 marble, thickness 200mm, flatness ±0.02mm

Fans

Aerators, capable of blowing and sucking; breaking station fan only has blowing function

Electrical Components

Voltage

380V/50HZ, equipment with transformer device

Motors

Japan YASKAWA servo motors, 400W and 850W

Control Card

Imported from Galil, USA

Main Electrical Components

AC contactors from Schneider Electric, France

Pneumatic Proportional Valve

Japan SMC

CCD Positioning System

Produced by Daheng, Beijing, magnification 50-200x, field of view 0.01-25mm, visible MARK size above 0.2mm


×
