100 Watts Portable Laser Paint Removal Machine with JPT laser source

Model: PE-100J


Introduction


The laser cleaning equipment relies on the advantages of the MOPA structure and it adopts 100 watts JPT brand pulsed fiber laser source as the cleaning light source.

This MOPA type fiber laser source has the characteristics of independently adjustable pulsed width and frequency.

It can maintain a high and stable peak laser power output even when the pulse width and frequency are changed to adapt to a wide range of cleaning situations.

The portable laser head is small and light, and the machine can be used for a long time. The button and handle are integrated design, which is simple and easy to use.

This laser paint removal machine with portable and integrated design, super integrated injection molding body, slow down attacking design, it is compressive, anti-drop and wear-resistant.

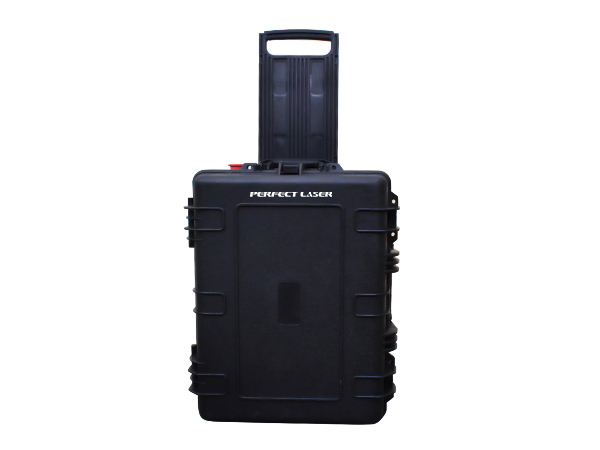

The laser cleaning equipment adopts draw-bar box design, can be carried easily for high-speed railway or air shipment.


Features


1. The laser metal cleaner can be run offline and can be cleaned after power on.

2. Laser output spot size can be customized according to your demands. (default laser spot is 4mm).

3. The laser cleaning head is extremely lightweight, it’s only 620g (without fiber cable), and can be operated by hand for a long time.

4. The laser metal cleaner adopts red light assisted focusing technology with national patent. It can adjust the focus position according to different focus lens.

5. Wireless remote control function can realize parameter setting and laser beam control at a long distance, and update parameters at any time.

6. It adopt draw-bar box design, the weight of the whole machine is 28 kgs, it can be delivered easily in high-speed railway or air shipping.

7. With super integrated injection molding body, slow down attacking design design, the machine structure is stable, wear resistance, shock resistance and drop resistance.


Application


Applicable Materials:

This laser paint removal machine has a good cleaning effect on all kinds of metals, including: iron, carbon steel plate, stainless steel plate, steel rail, aluminum plate, die steel gear, steel pipe, copper alloy and many other materials.

It can be used to clean oxide layer, oil surface, stains, and dirt, to remove surface plating and coating.

Applicable Industries:

Machinery processing, mould cleaning, cultural relics restoration, electronic circuits, food processing and other industries.


Technical Data


Product Name

100 Watts Portable Handheld

Laser Paint Removal Machine

Model

PE-100J

Focus Length

254mm

Scanning Width

170 mm

Scanning Speed

10000 mm/s

Output Working Method

Pulse / Continuous

Output Fiber Cable Length

5 Meters

Average Output Power

>100 Watts

Cooling Method

Air Cooling

Voltage

220 V

Max Power Consumption

<450 Watts

Whether Anti-high Reflection

Yes

Working Temperature Range

0 - 40℃

Storage Temperature Range

-10 - 60℃

Laser Cleaning Machine Size

617mm x 469mm x 291mm

Whole Machine Weight

28 kgs

Laser Head Weight

0.62 kgs
