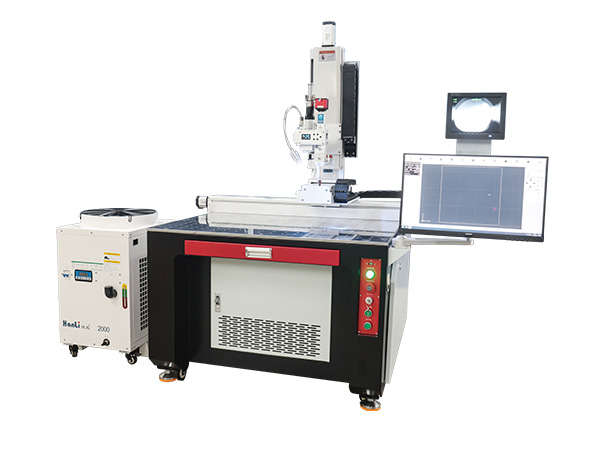

The high-power fiber laser welding machine has a modular design, is capable of spot and continuous welding, and can weld any shape seam.

The welding effect can be observed in real time with the high-definition industrial CCD camera observation system, the welding path can be automatically generated, and the operation is simple and stable.

With 2000W high-quality laser and a large working platform of 800*300mm, the fiber laser welding machine can process continuously and steadily for an extended period of time, making it ideal for industrial mass production.

1.Laser beam welding machine adopts a high-quality fiber laser with a high beam quality, fast welding speed, smooth welding seam, convenient and flexible processing, and simple maintenance.

2.High-precision operation mode of three-axis linkage, combined with software programming, can realize welding automation.

3.The welding process can be observed in real time with a CCD liquid crystal monitoring and observation system, allowing operators to make timely adjustments to ensure the welding effect.

4.Controlled by an industrial PC, the workpiece can move in a plane trajectory and can weld any plane graphics composed of points, straight lines, circles, semicircles, triangles, inverted triangles or straight lines and arcs.

5.High electro-optical conversion rate and low energy consumption. Long-term use can save heavy processing costs for users.The laser beam welding machine can be 24 hours continuous and stable processing to meet the needs of industrial mass production and processing.

6. The stainless steel soldering machine can manually set the welding path and save it. No special drawing of file text is required, and the operation is simple.

7. 800×300mm large size workbench with holes ,which can be equipped with tooling to clamp workpiece.It’s suitable for mass production.

8. There are 2 types of welding heads that can be replaced depending on the material’s flatness.The long nozzle welding head is suitable for the flat workpiece, while the short nozzle can be welded uneven workpiece.

9. The stainless steel soldering machine with 360°rotation function, welding can be performed according to the shape and size of the material.

10.Optional wire feeder, it can be selected according to the size of the weld, beautiful and fast welding.

1.Application materials:

The laser beam welding machine is widely used stainless steel, die steel, carbon steel, nickel, zinc, aluminum, etc

2. Application industries

The laser beam welding machine can be used in automotive, electronics, steel, aerospace, shipbuilding and other industries
