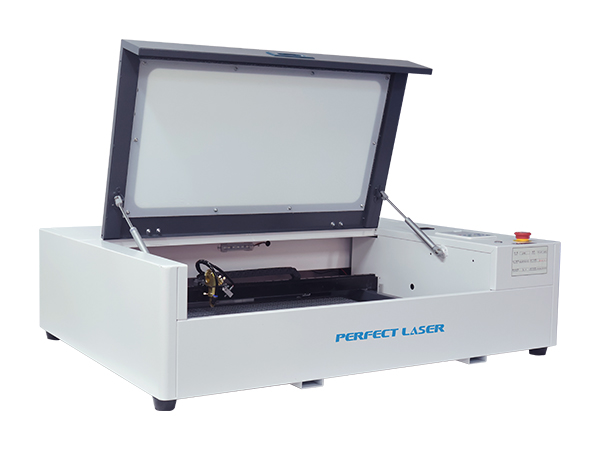

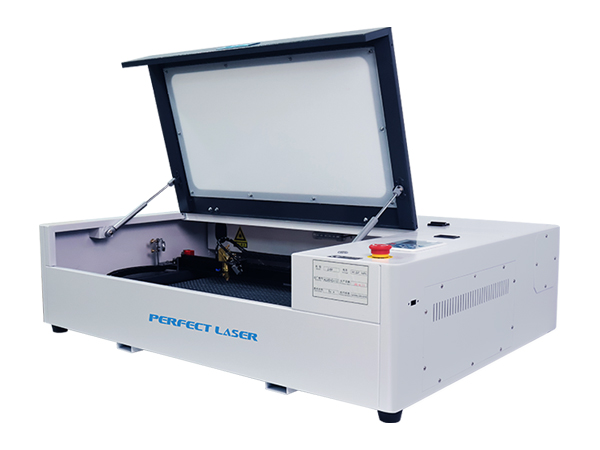

6040 Portable Desktop Hammer Painting Glass Painting Laser Engraving Machine

Model: PEDK-6040S


Product Introduction


The hammer painting glass laser engraving machine is an innovative device that combines traditional glass hammering skills with modern laser engraving technology, aiming to achieve artistic processing of non-metallic materials such as glass and acrylic. The hammer painting glass laser engraving machine's core principle is to form controllable cracks or patterns on the surface of the material through high-precision laser, combining industrial precision with artistic randomness.


Product Features


1. The small laser engraver has a dual-mode function, which can engrave and cut in one operation. Improve work efficiency and reduce operation procedures;

2. The hammer painting small laser engraver has been carefully designed and strictly tested, and the device can be used stably for a long time without frequent replacement, reducing the cost of use;

3. It can accurately restore complex patterns and delicate texts, meeting the needs of high-end artistic creation and industrial production;

4. Its equipped with an intelligent offline system and can work independently without networking;

5. In case of sudden power outage, the device can accurately record the current engraving progress, and there is no need to restart when power is restored, avoiding material waste and time loss;

6. The body is made of thickened aviation aluminum, which has high strength and stability, can effectively resist external impact and vibration, and ensure engraving accuracy;

7. Equipped with an industrial-grade laser head, the hammer painting small laser engraver not only shortens working time, but also improves production efficiency to meet market demand;

8. The closed laser tube can extend the service life of the laser tube. High borosilicate glass tube ensures the stability and accuracy of laser output;

9. Equipped with branded stepper motor, the hammer painting engraving machine has powerful power and stable performance.The hammer painting small laser engraver can work continuously for 24 hours.


Application


1. Applicable industries

The hammer painting desktop laser engraving machine is suitable for the fields of artistic creation, commercial customization scenarios such as cultural tourism souvenirs and intangible cultural heritage revitalization, and industrial design fields such as architectural glass and lighting fixtures.


2. Applicable materials

Its suitable for glass, acrylic, two-color board, light wood (micro wood board), hardwood (red wood board), hollow cardboard (corrugated), medium density cardboard (hard), leather (genuine leather), leather (imitation leather), cloth, rubber board, resin, density board MDF, etc.


Technical Data



Product Name

6040 Portable Desktop Hammer Painting Glass Painting Laser Engraving Machine

Laser Type

CO Sealed-off Laser Tube

Laser Wavelength

10.64 μm

Processing Area

600 × 400 (mm)

Operating Voltage

220V / 110V

Power Adjustment

Precision to 0.01%

Worktable

Honeycomb Worktable

Engraving Accuracy

0.01 mm

Cutting Thickness

0 – 15 mm

Water Temperature Requirement

0 – 45°C

Supported Systems

Win7 / 8 / 10 / XP

Machine Weight

55kg

Warranty

Lifetime Maintenance Service

Positioning Accuracy

0.01 mm

Cooling Method

Water Cooling (Chiller Optional)

Engraving Speed

0 – 400 mm/s

Cutting Speed

0 – 30 mm/s

Minimum Engraving Size

Chinese Characters: 2×2 mm, Letters: 1×1 mm

Machine Size

1050*750*280(mm)


×
