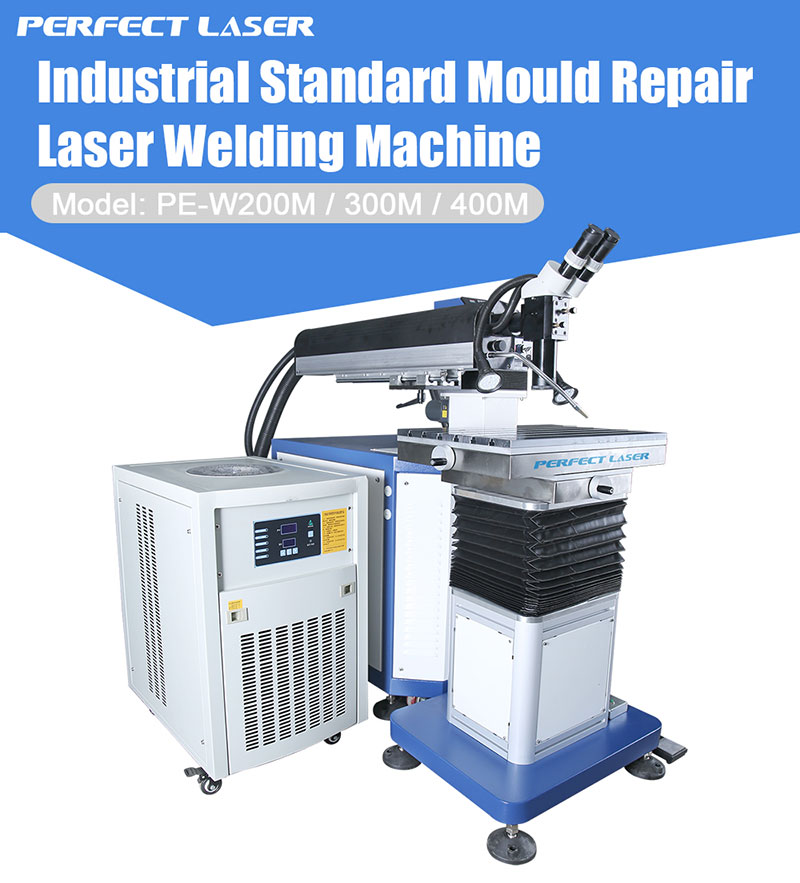

Industrial Mould Repair Laser Welding Machine PE-W200M

Model: PE-W200M 300M 400M


Product Description

Perfect laser, offering laser application solutions, its laser mould welding machine series has been developed for more than 10 years. Self developed and core international key parts,the mould laser welding machine with lowest failure rate win trust from customers at home and abroad. You are sure to be satisfied with our mould laser welding machine.


The laser mould welding machine equipped with industrial touch screen control system, the welding joints diameter is only 0.2-0.5mm. No deformation and the material can be etched without any damage. No trachoma,no stomata with smooth welding edge. You can re-use the original mold after repair, which will greatly improve efficiency and reduce cost.

Application

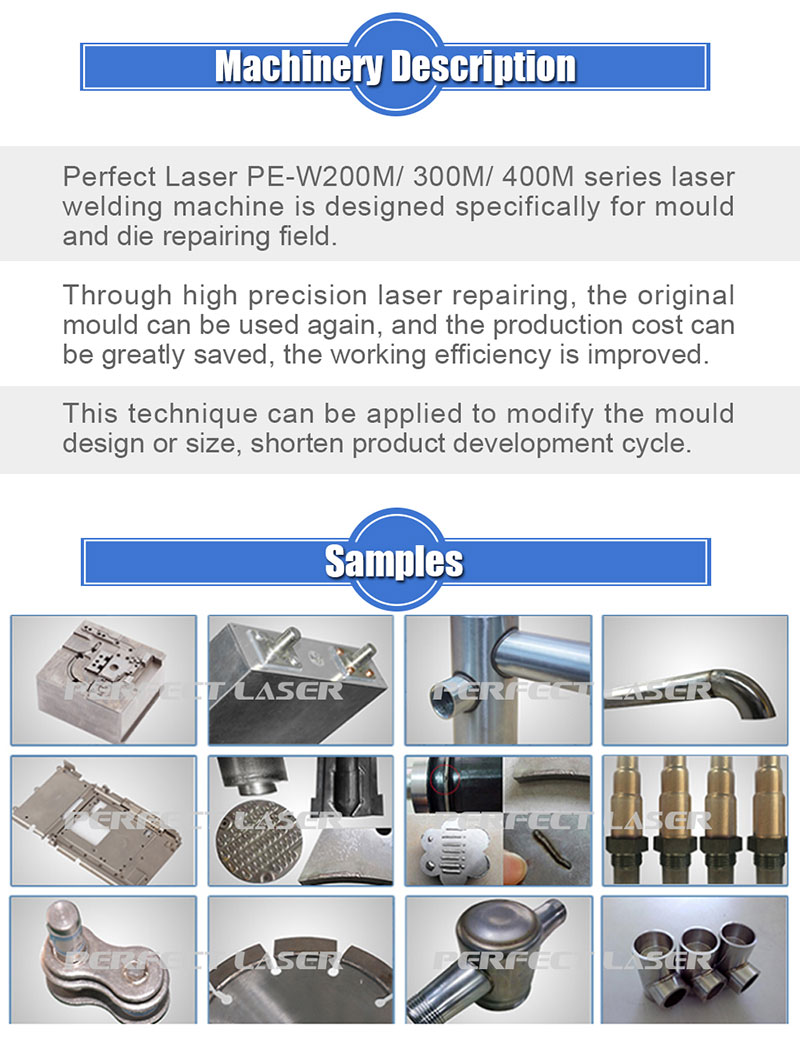

Applicable materials: high alloy steel, hot forging high alloy steel, nickel steel, high-grade steel, copper alloy, beryllium copper, high strength and toughness aluminum alloy and other metal materials.

Applicable industry:digital products , mobile phones, toys, automobiles, motorcycles and other mould marking industries.

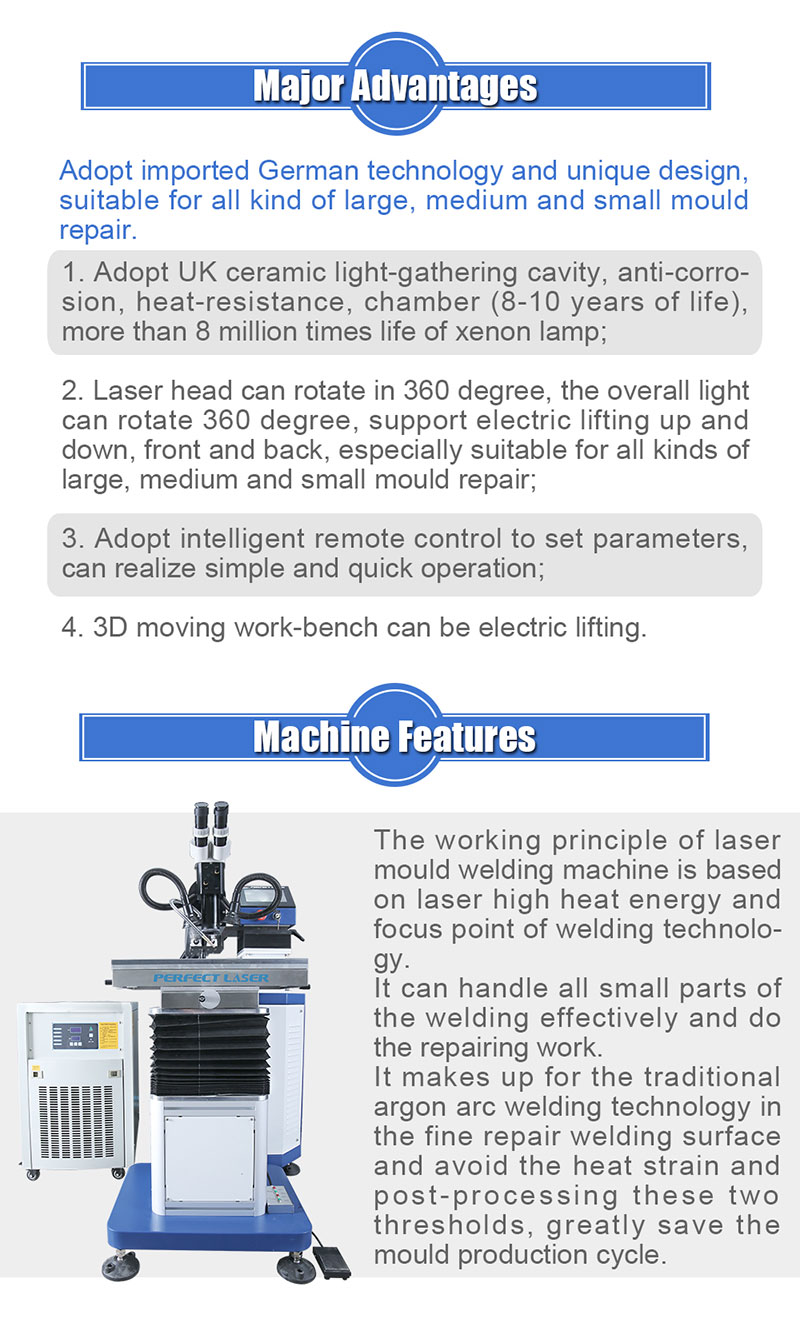

Features

1.Specifically designed for mould industry, the laser mould welding machine has introduced German technology and adopted unique structure design, and is suitable for all kind of large, medium and small mould repair.

2.The laser mould welding machine adopt UK ceramic light-gathering cavity, it is anti-corrosion and heat-resistance, the mould laser welding machine`s service life is up to 8-10 years, and more than 8 million times life of Xenon lamp.

3.Using the World’s most advanced automatic shading system, the mould laser welding machine eliminates the stimulation to the eyes in work.

4.The laser head can rotate 360 degrees, overall light path can rotate 360 degrees ,and the laser mould welding machine is more convenient for different objects position welding.

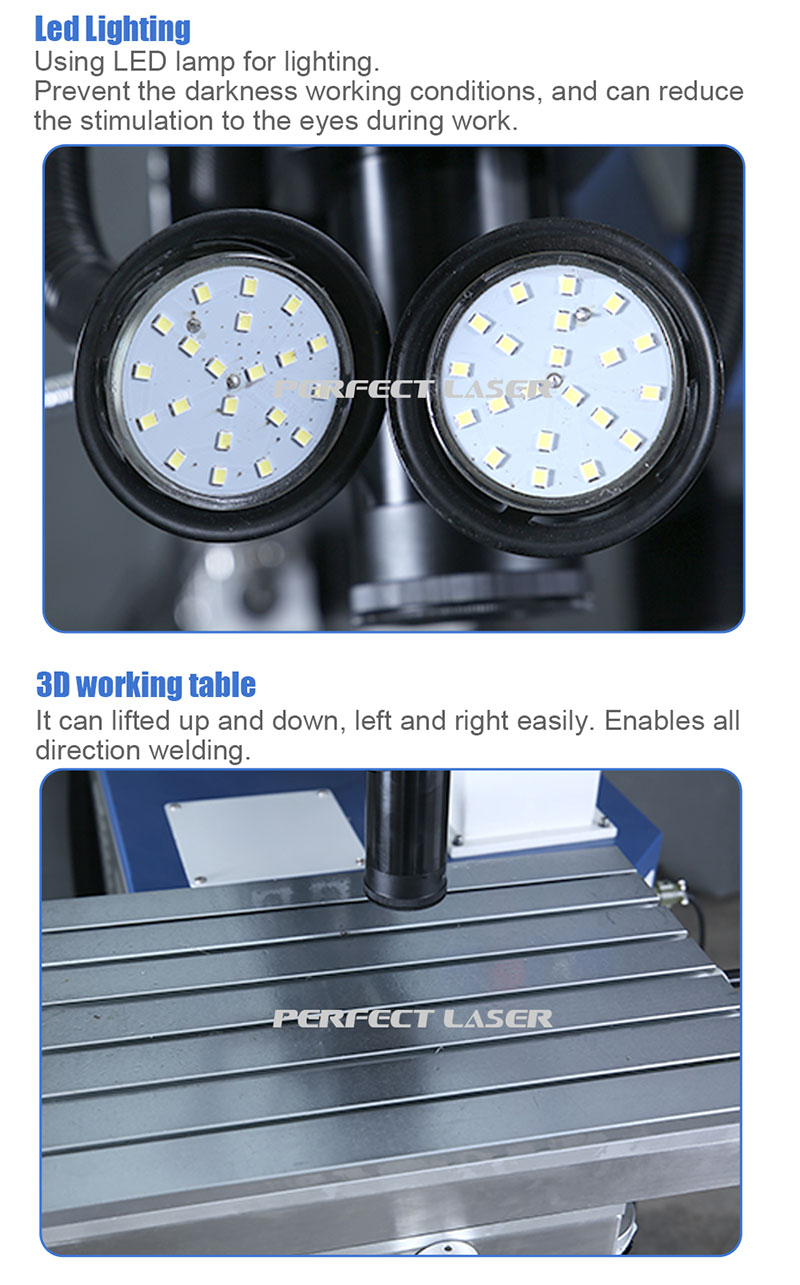

5.The mould laser welding machine`s workbench adopts electric hoist and fixes focus more quickly.

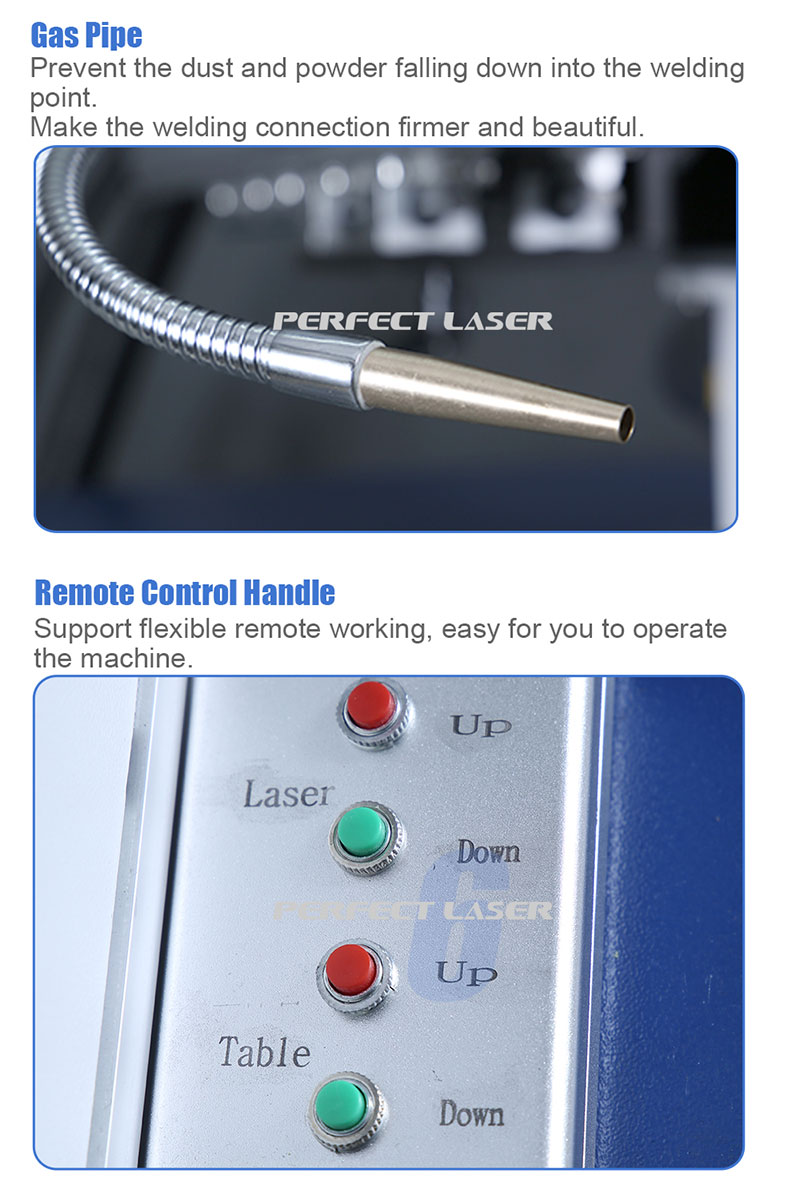

6.The laser welding machine for mould repair`s parameter adjustment adopts intelligent remote control, the operation is simple and quick.

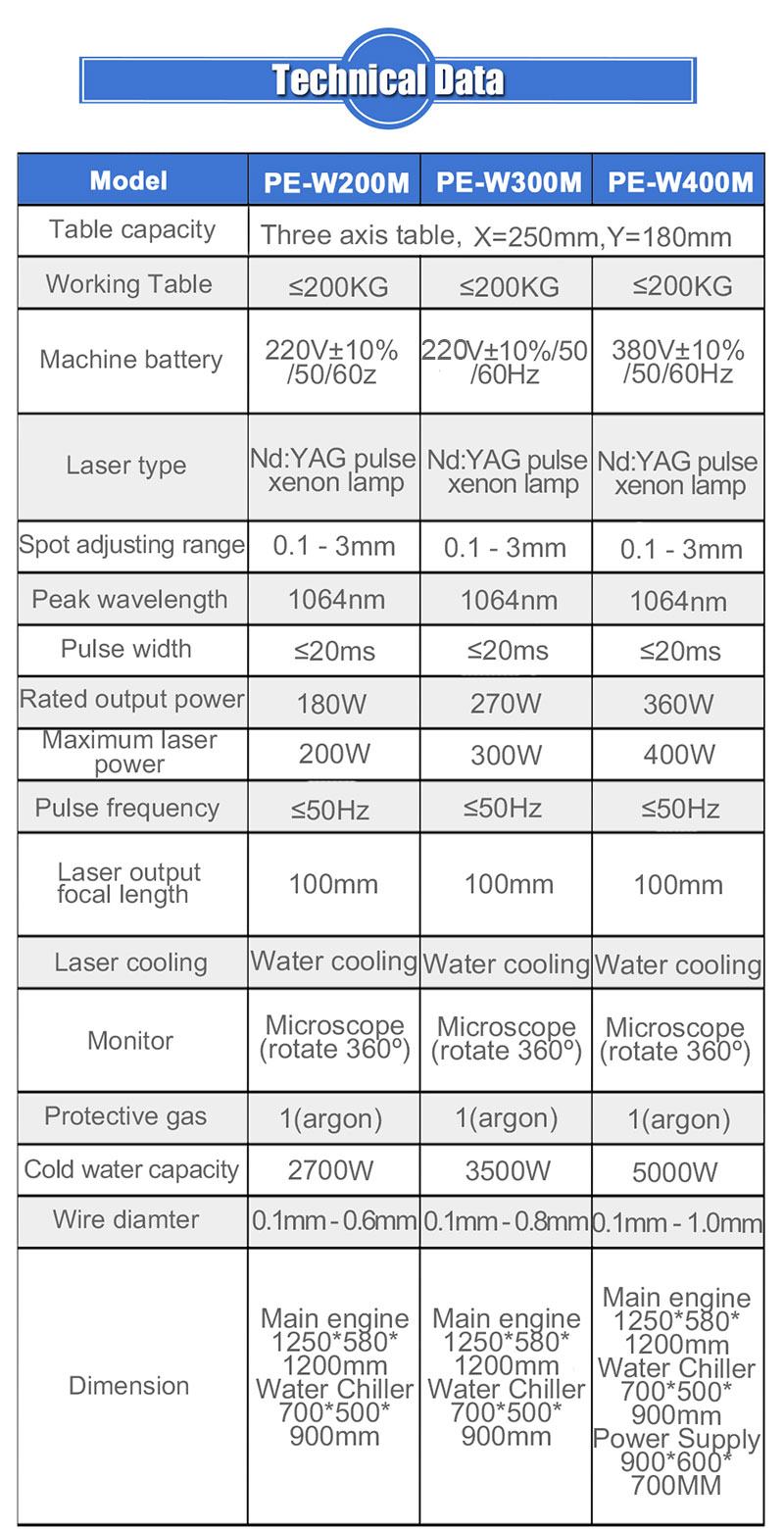

Model Parameters

Type

PE-W200M

PE-W300M

PE-W400M

Three axis table

X=250mm,Y=180mm

Table capacity

≤200KG

≤200KG

≤200KG

Machine battery

220V±10%/50/60z

380V±10%/50/60Hz

380V±10%/50/60Hz

Laser type

Nd:YAG pulse xenon lamp

Nd:YAG pulse xenon lamp

Nd:YAG pulse xenon lamp

Rotary Device

Optional

Spot adjusting range

0.13mm

0.13mm

0.13mm

Peak wavelength

1064nm

1064nm

1064nm

Pulse width

≤20ms

≤20ms

≤20ms

Rated output power

180W

270W

360W

Maximum laser power

200W

300W

400W

Pulse frequency

≤50Hz

≤50Hz

≤50Hz

Laser output focal length

100mm

100mm

100mm

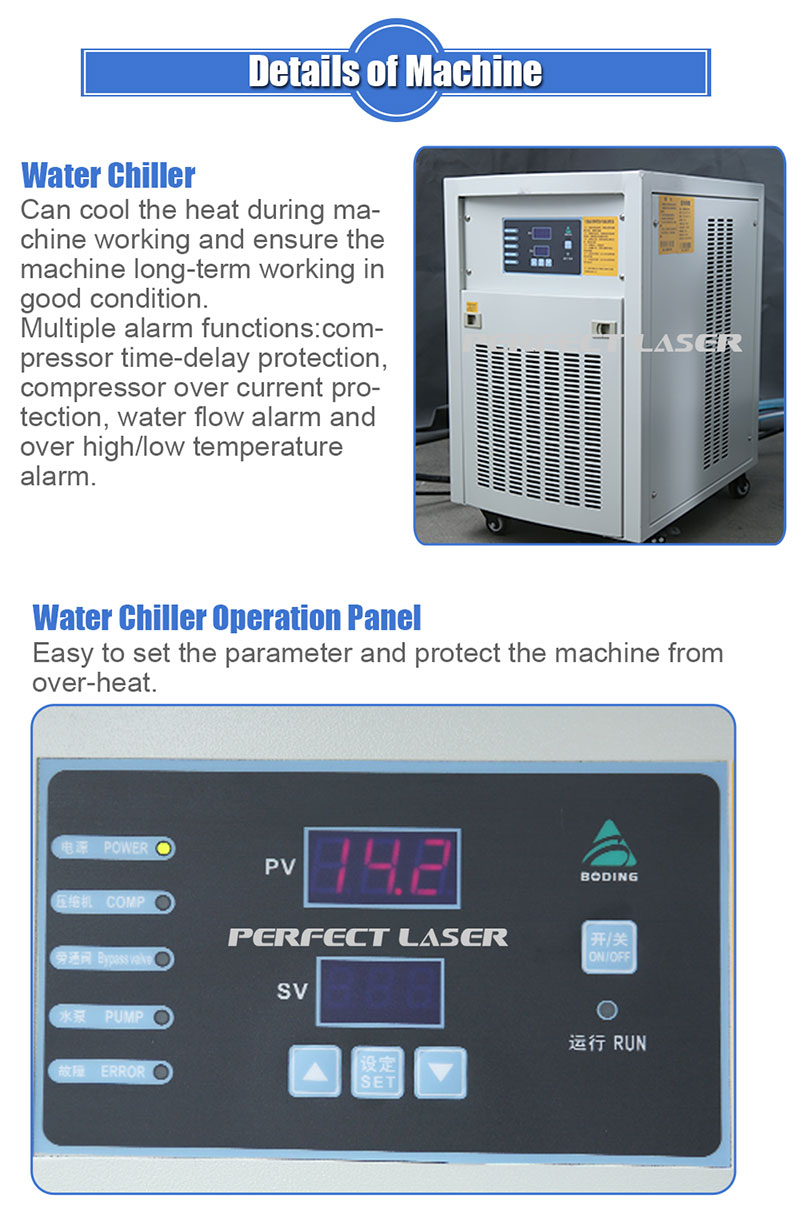

Laser cooling

Water cooling

Water cooling

Water cooling

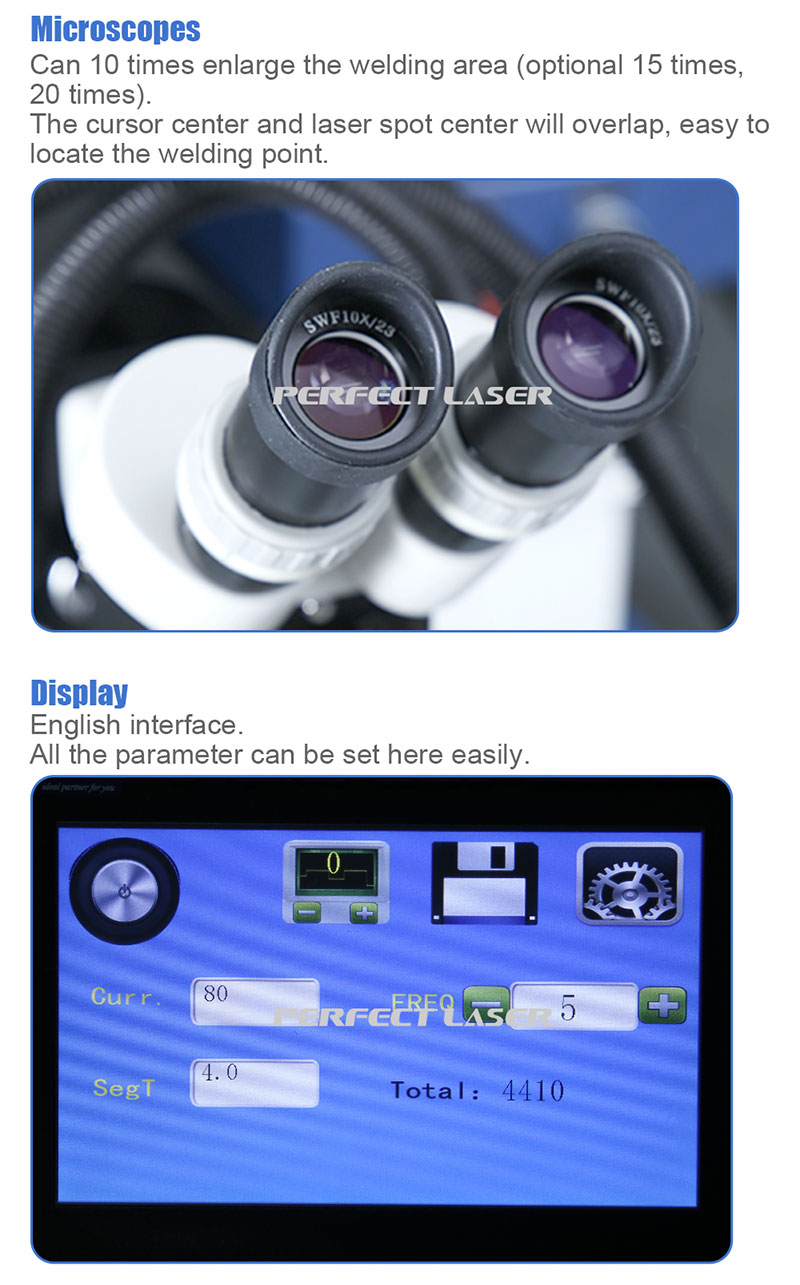

Monitor

Microscope(rotate 360º)

Microscope( rotate 360º)

Microscope(rotate 360º)

Protective gas

1(argon)

1 (argon)

1 (argon)

Cold water capacity

2700W

3500W

5000W

Wire diamter

0.1mm~0.6mm

0.1mm~0.8mm

0.1mm~1.0mm

Dimension

Main engine

1250*580*1200mm

Chiller

700*500*900mm

Main engine

1250*580*1200mm

Chiller

700*500*900mm

Main engine

1250*580*1200mm

Chiller

700*500*900mm

Power

900*600*700MM
