1000W 1500W 2000W 3000W Handheld Double-head Fiber Laser Cleaning Machine

Home > Metal Cutting Machinery > Laser Cleaning Machine > PE-1000Z

1000W 1500W 2000W 3000W Handheld Double-head Fiber Laser Cleaning Machine-PE-1000Z
1000W 1500W 2000W 3000W Handheld Double-head Fiber Laser Cleaning Machine-PE-1000Z
1000W 1500W 2000W 3000W Handheld Double-head Fiber Laser Cleaning Machine-PE-1000Z

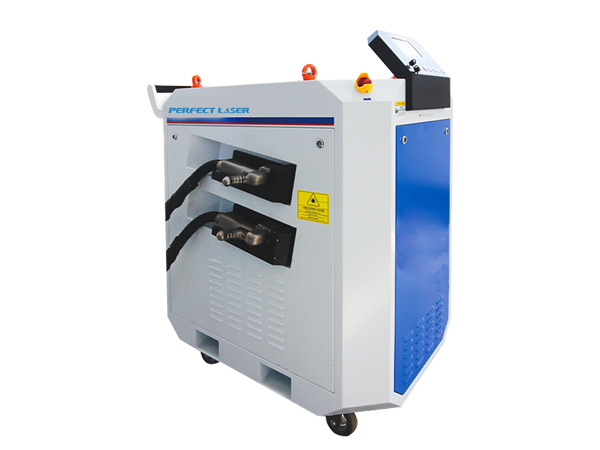

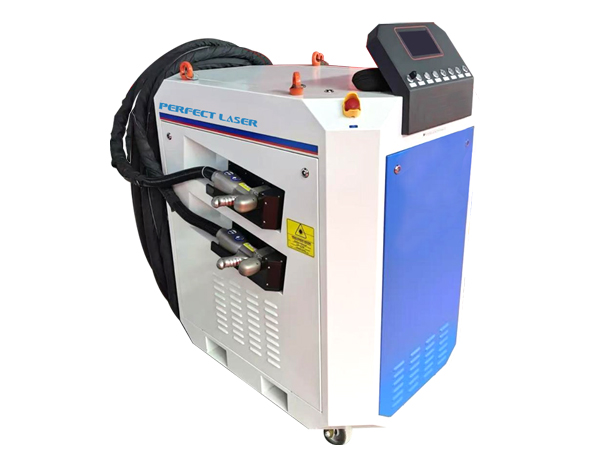

1000W 1500W 2000W 3000W Handheld Double-head Fiber Laser Cleaning Machine

Model: PE-1000Z


Product Introduction


The integrated dual-head laser rust removal machine produced by Perfect Laser is simple to install and use. It supports preset multiple modes for rust removal, paint stripping, and oil stain removal, enabling one-click activation of chemical-free cleaning processes. Its automatic focusing and surface contouring technology effectively removes tough stains like oil, rust, and coatings.

Product Features


1. The dual-laser cleaning head design delivers twice the cleaning efficiency of a single-head system.

2. The laser rust removal machine does not rely on any chemical cleaning fluids and uses zero consumables, ensuring safe and environmentally friendly operation.

3.It’s equipped with a partitioned independent control system, allowing flexible adaptation to the cleaning needs of the same or different products. It also supports single-head or dual-head synchronous operation.

4. The cleaning process is highly accurate and can be selectively cleaned for specific locations and sizes.

5. The fiber laser cleaning machine is easy to operate, just turn on the power to start and turn on the preset mode to clean with one click.

6.The fiber laser cleaning machine occupies a small area, only requires a single machine space, and effectively saves site resources.

7. Non-contact cleaning, basically no loss of parts and bodies.

Application


1. Application industries

The laser rust removal machine can detect mold industry, semiconductor industry, sports equipment, automobile industry, metal manufacturing industry, sheet metal industry, and electronics industry.

2. Application materials

This laser paint stripping machine delivers good cleaning performance on various metal materials, including iron, carbon steel plates, stainless steel plates, steel rails, aluminum plates, mold steel gears, steel pipes, and copper alloys.

Technical Data


Product Name

Handheld Double-head Fiber Laser Cleaning Machine

Model

PE-1000Z

Laser Type

Domestic (H) Fiber Laser / Imported (I) Fiber Laser

Laser Wavelength

1064nm

Cooling Method

Water Cooling

Fiber Length

3~15m (Customizable)

Laser Power

1000~3000W

Power Supply Voltage

AC~220V

Machine Power

4.6~14kW

Cabinet Dimensions

1504*790*1496MM

Machine Weight

410KG

Chiller

Dual Temperature Optional

Optional Accessories

Handheld (SC) / Automation (JX)

Handheld Head Weight

Standard: 1.4~2.3KG

Operating Temperature

0~45°C

Certification Standard

CE Certification


×
