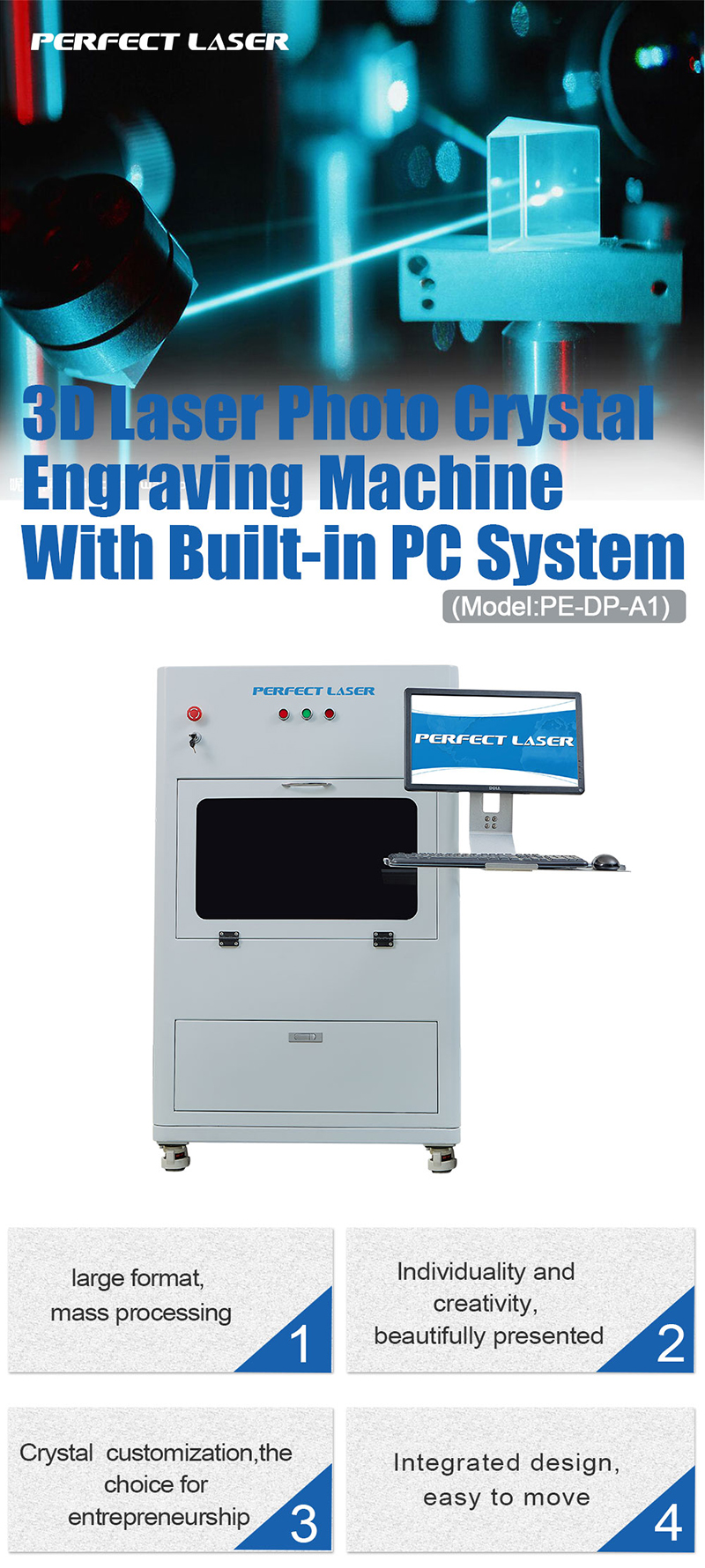

3D Laser Photo Crystal Engraving Machine Price With Built-in PC Control System

Model: PE-DP-A1


Introduction

Perfect Laser's new 3D laser photo crystal engraving machine adopts imported air-cooled laser system,it is stable for engraving 3d crystal and easy to maintain.

The laser photo crystal engraving machine is equipped with a built-in industrial computer (including monitor & keyboard), the 3d engraving software is installed well also, so user can use it directly when receiving it, no extra installation.

And the core components of the 3D laser engraving machine price uses imported materials with better quality and longer service life.

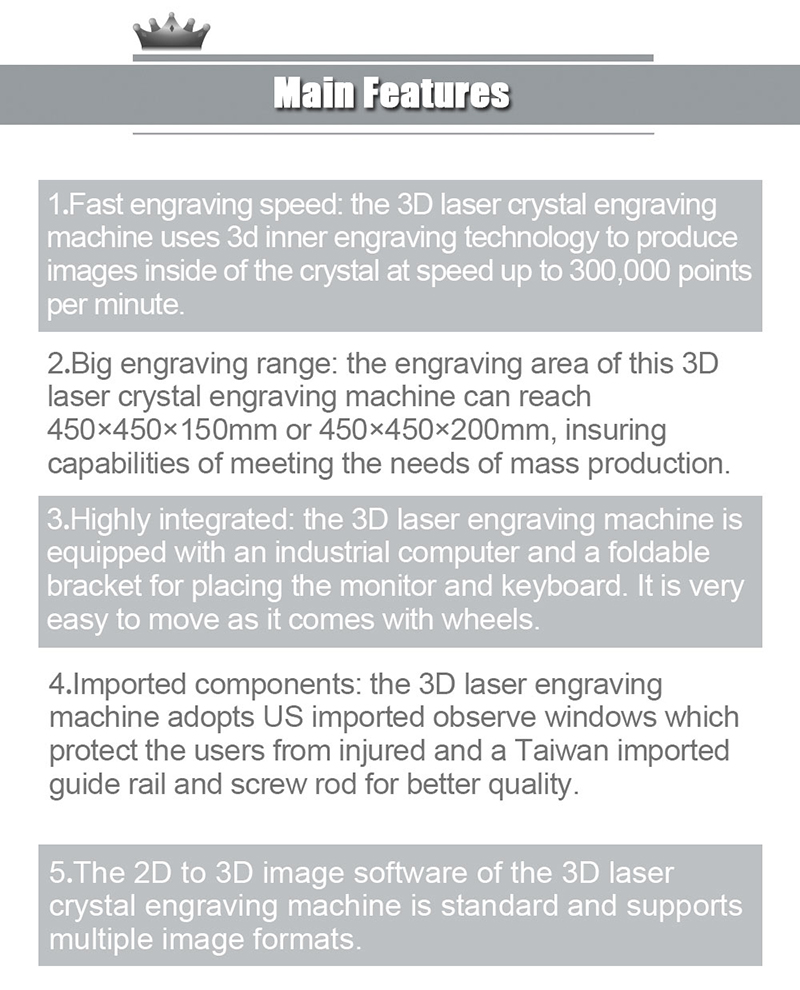

Features

1. Fast engraving speed: the 3D laser photo crystal engraving machine uses 3d inner engraving technology to produce images inside of crystal, the engraving speed is up to 300,000 points/minute.

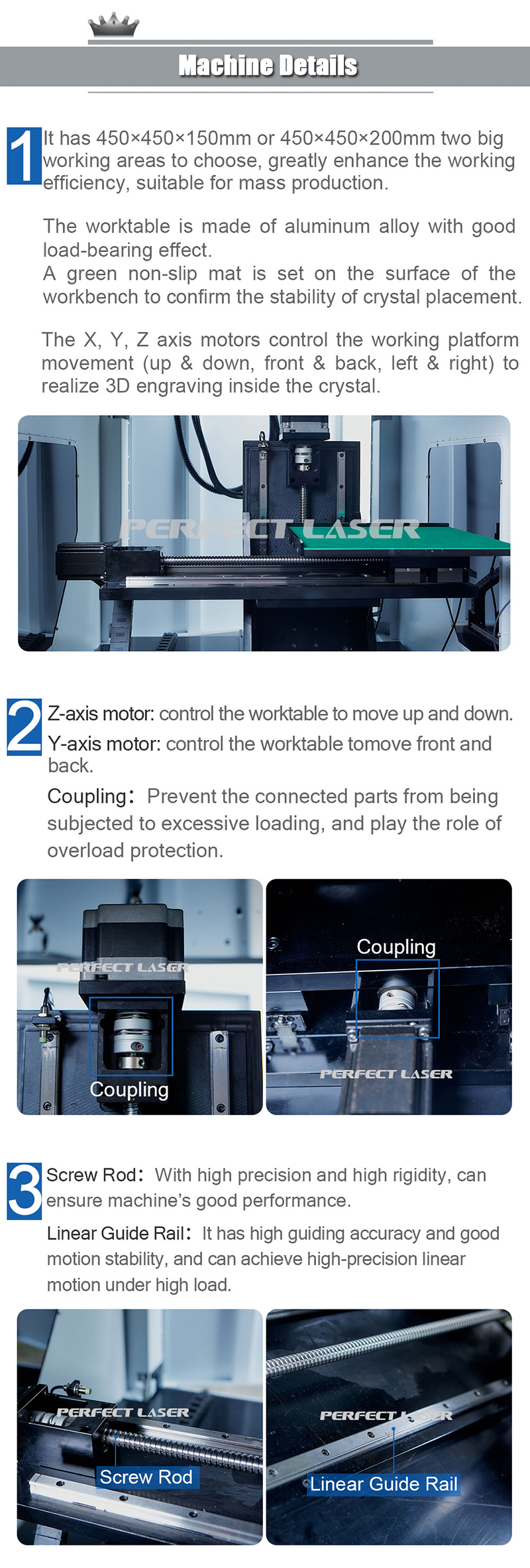

2. Big engraving range: the engraving area of the laser photo crystal engraving machine can reach 450mm×450mm×160mm, which can meet the needs of mass production.

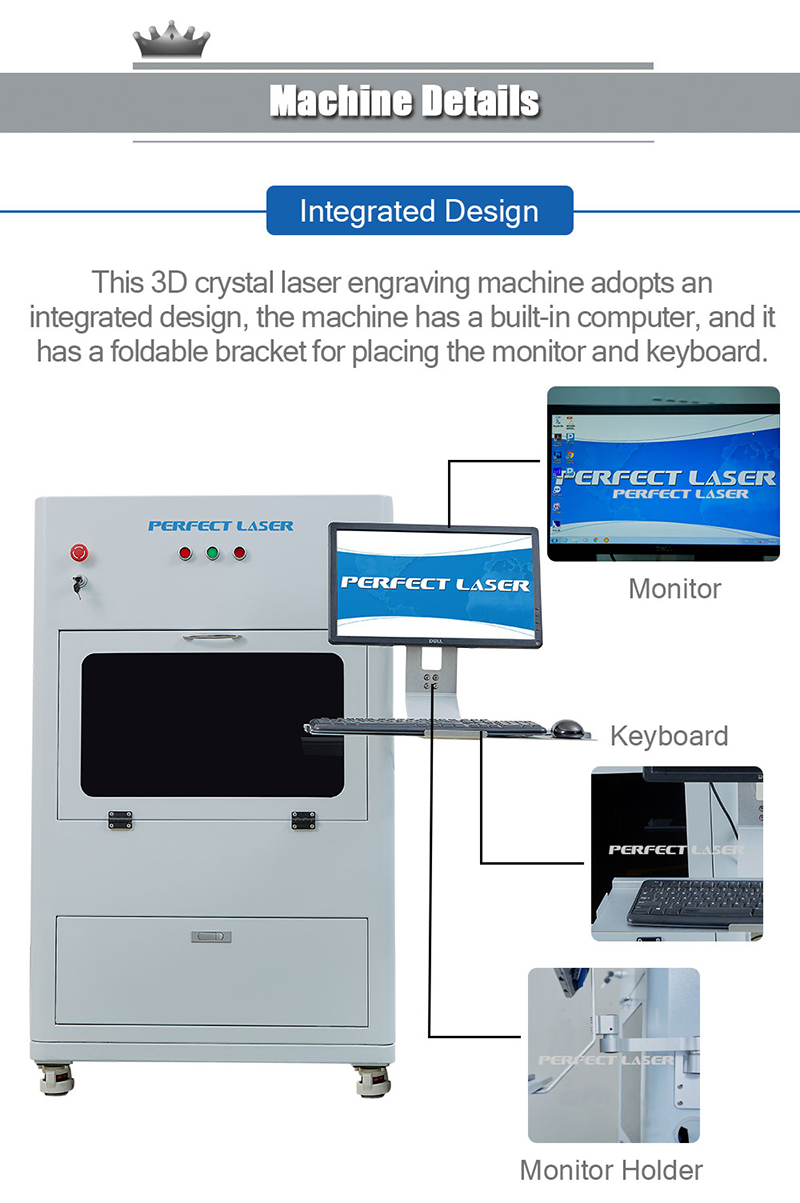

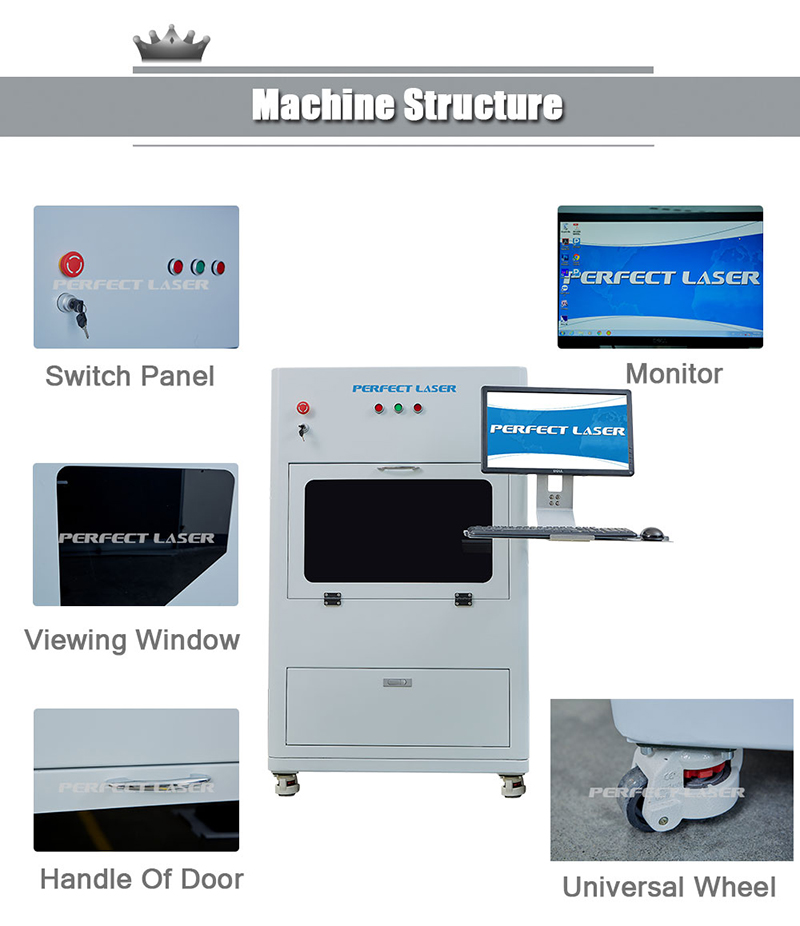

3. Highly integrated: the 3D laser engraving machine price is equipped with an industrial computer. There is also a foldable bracket for placing the monitor and keyboard. It is very convenient to move with universal wheels.

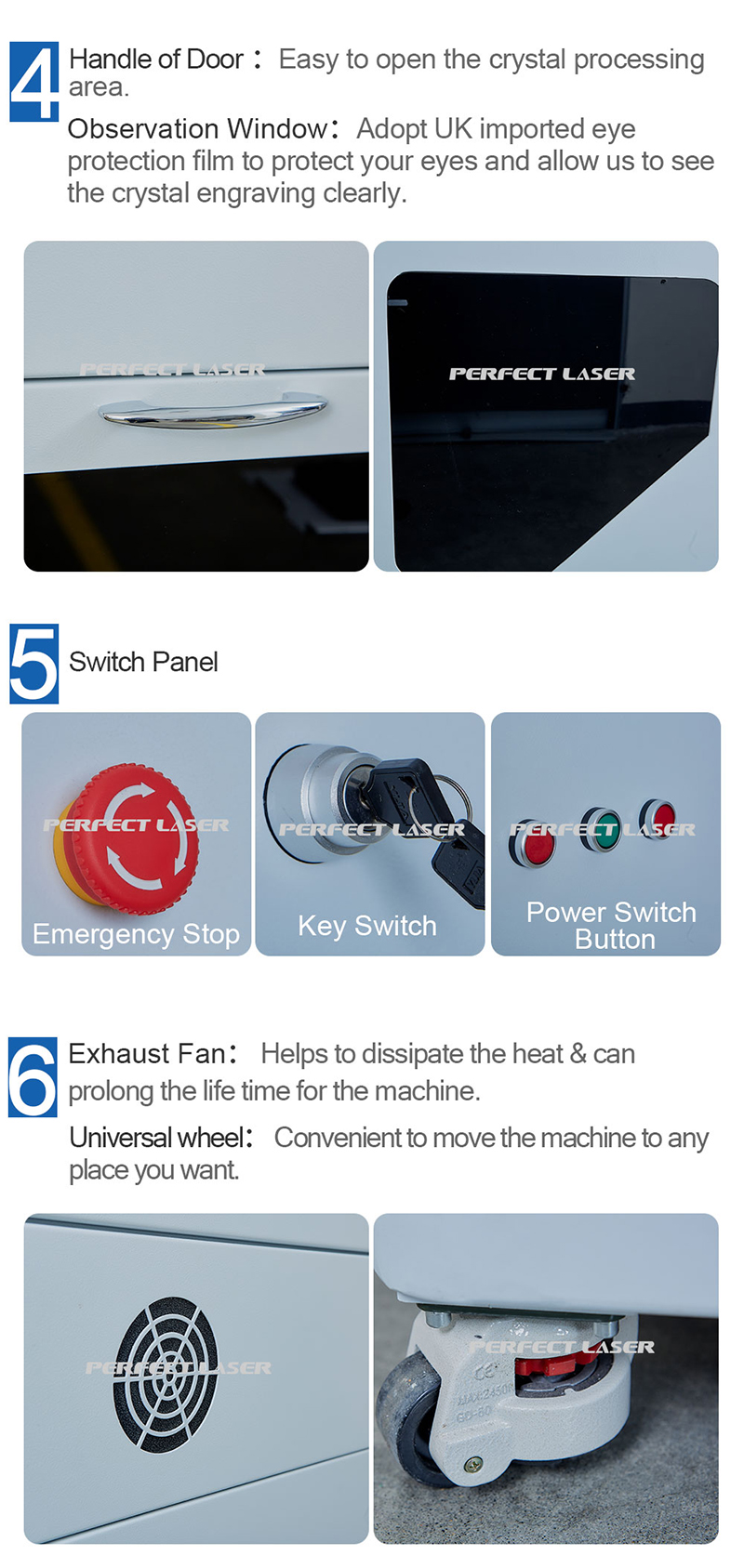

4. Imported components: the 3D 3D laser engraver price adopts US imported observe windows which can protect us from injured, and Taiwan imported famous brand guide rail and screw for better quality.

5. The 2D to 3D image software of the 3D laser engraver price is standard and supports multiple image formats.

6. An optional 3D camera can be used to directly generate 3D images for on-site engraving after taking pictures, which is especially suitable for personalized gift customization in large shopping malls, resorts and other places.

Application

Applicable Materials:

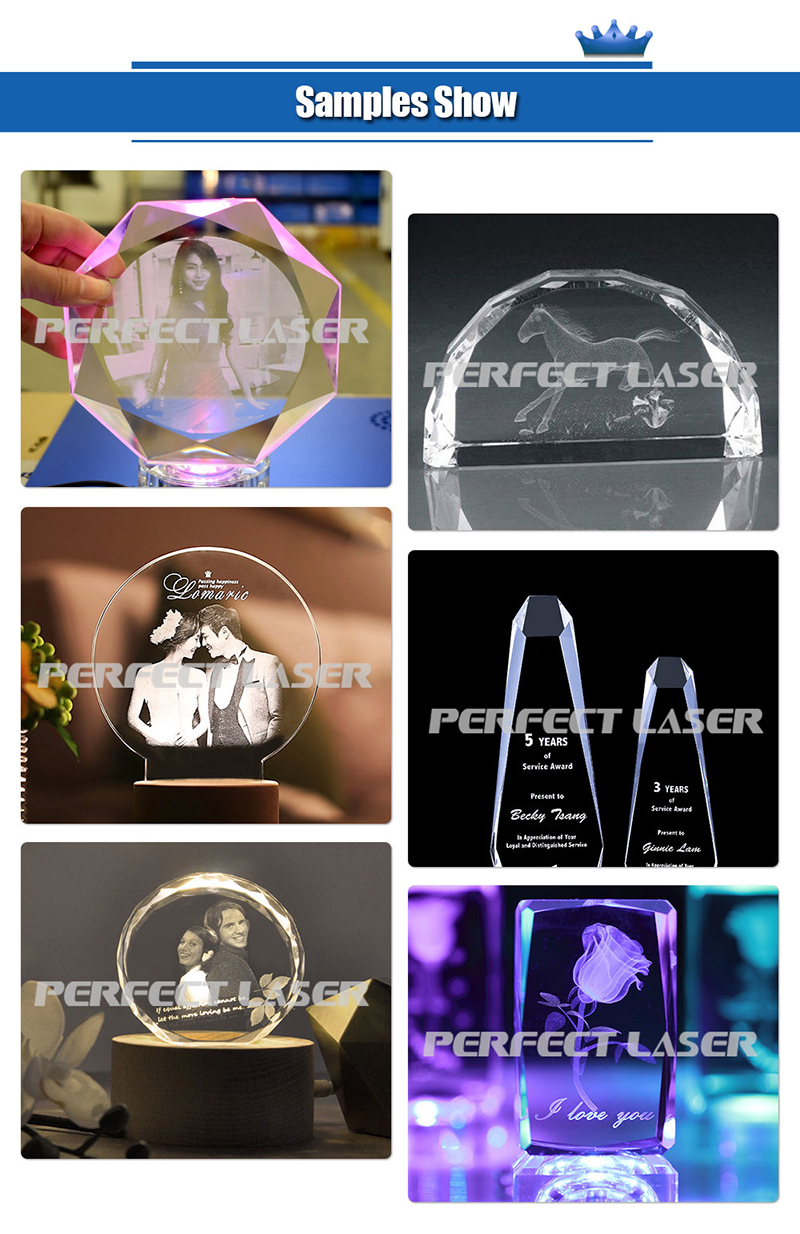

The 3D laser photo crystal engraving machine is widely used in crystal, glass and many transparent materials.

Applicable Industries:

The 3D laser photo crystal engraving machine is widely used in tourism, hotels, photo studios, galleries, advertising, gift customization, toys and other industries.

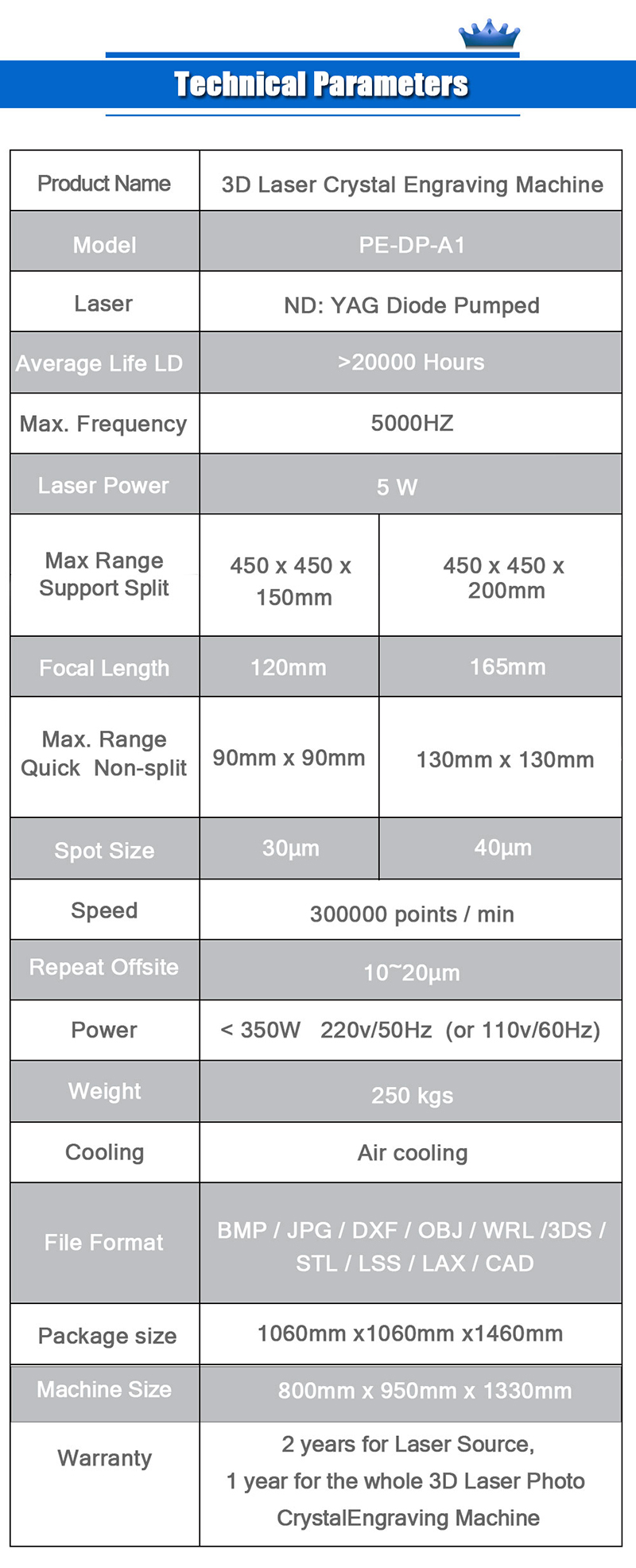

Technical Data

Product Name

3D Laser Photo Crystal Engraving Machine

Model

PE-DP-A1

Laser

ND: YAG Diode Pumped

Average Life LD

>20000 Hours

Max. Frequency

5000HZ

Laser Power

3W

5W

Max Range

Support Split

450 x 450 x 120mm

450 x 450 x 160mm

Focal Length

120mm

165mm

Max. Range

Quick Non-split

90mm x 90mm

130mm x 130mm

Spot Size

30μm

40μm

Speed

300000 points / min

Repeat Offsite

10~20μm

Power

< 350W 220v/50Hz (110v/60Hz)

Weight

250 kgs

Cooling

Air cooling

File Format

BMP / JPG / DXF / OBJ / WRL /

3DS / STL / LSS / LAX / CAD

Machine Size

800mm x 950mm x 1330mm

Warranty

2 years for Laser Source,

1 year for the whole 3D Laser Photo Crystal Engraving Machine
