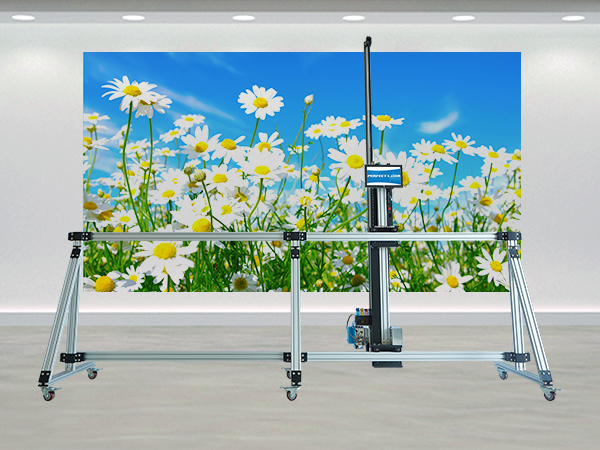

New Generation Intelligent Inkjet Printer For Wall Mural PE-S80

Style NO. :

Introduction


Perfect Laser is a professional manufacturer engaged in the research, development and production of wall printing machine. In order to meet the different needs of different customers, Perfect Laser develops new generation industrial intelligent wall printing machine PE-S80.

The design of industrial 3d vertical wall printer nozzle is different from that of conventional wall printing machine. It has a higher printing speed, can satisfy large-scale work for a long time, and is more stable in performance. And the standard track of the wall printing machine can be up to 6M, more widely used.

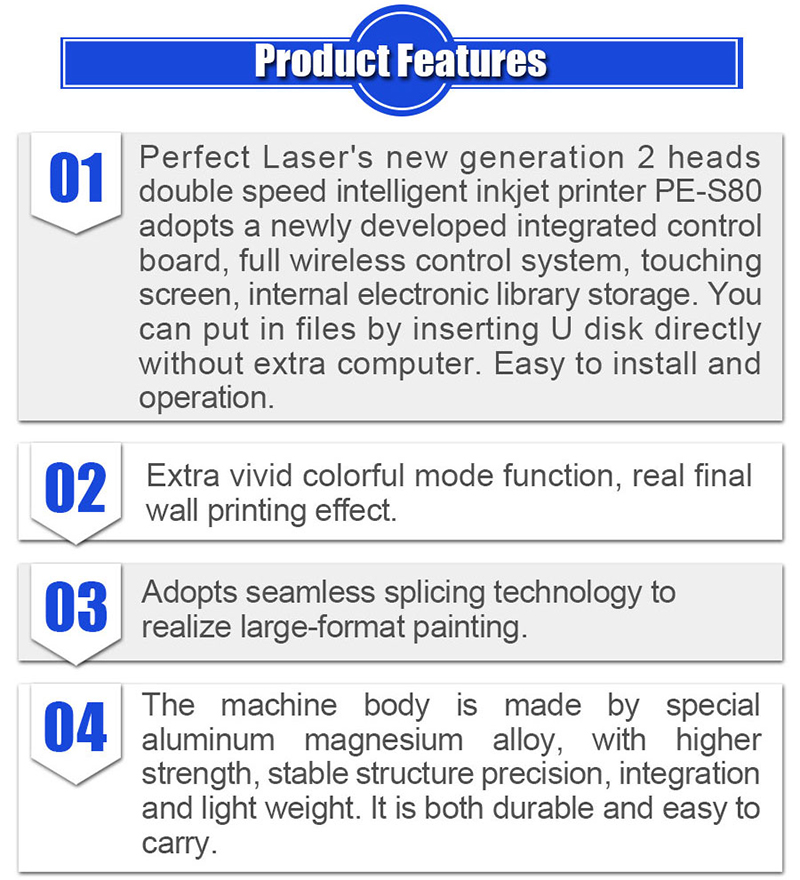

Product features

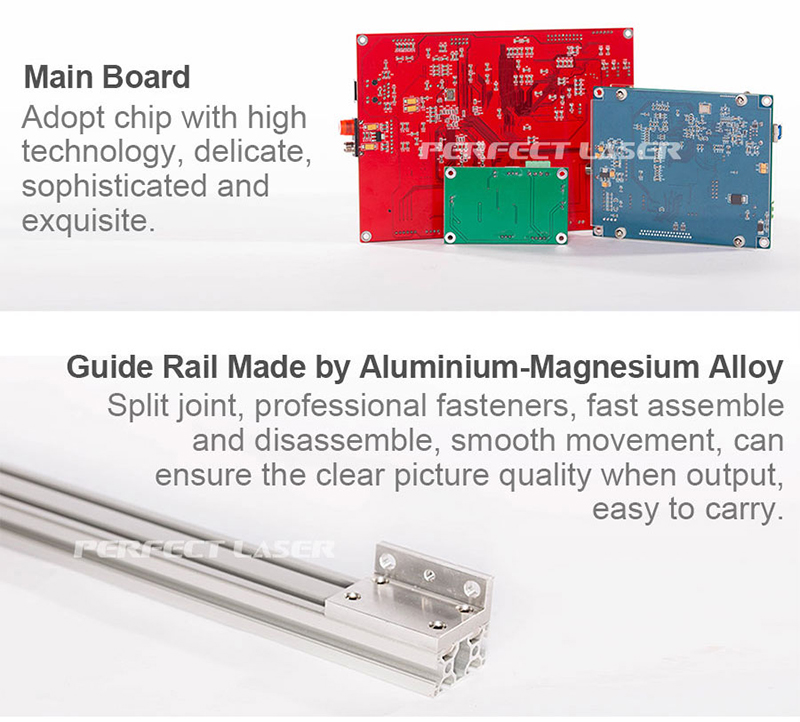

1. Aluminum-magnesium alloy wall printing machine body, which has higher strength, high structural accuracy, light weight and durability.

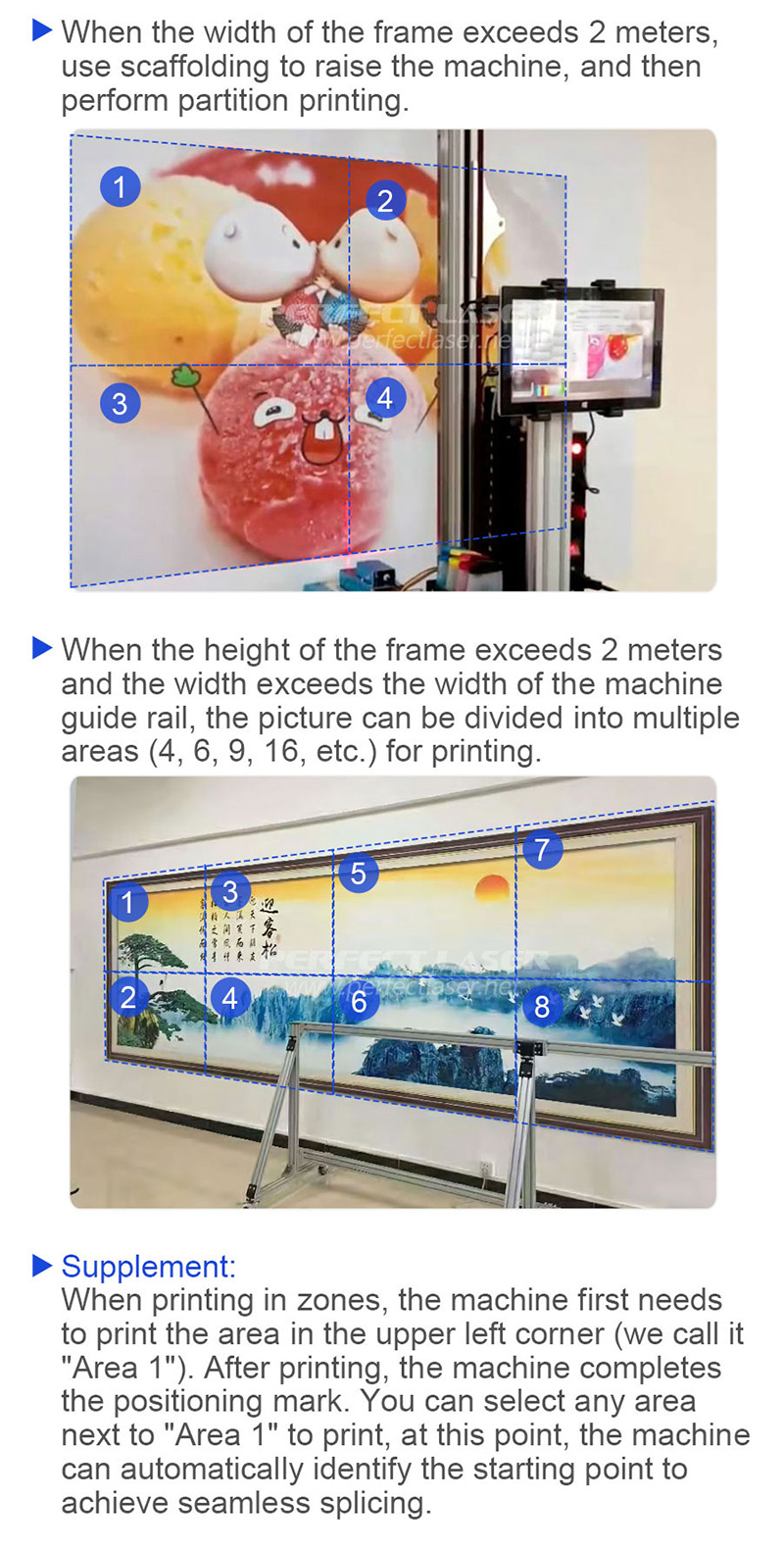

2. The actual printing size of the inkjet printer for wall mural: height 2000mm, the track standard width is 6m and the 3d vertical wall printer can be extended if need.

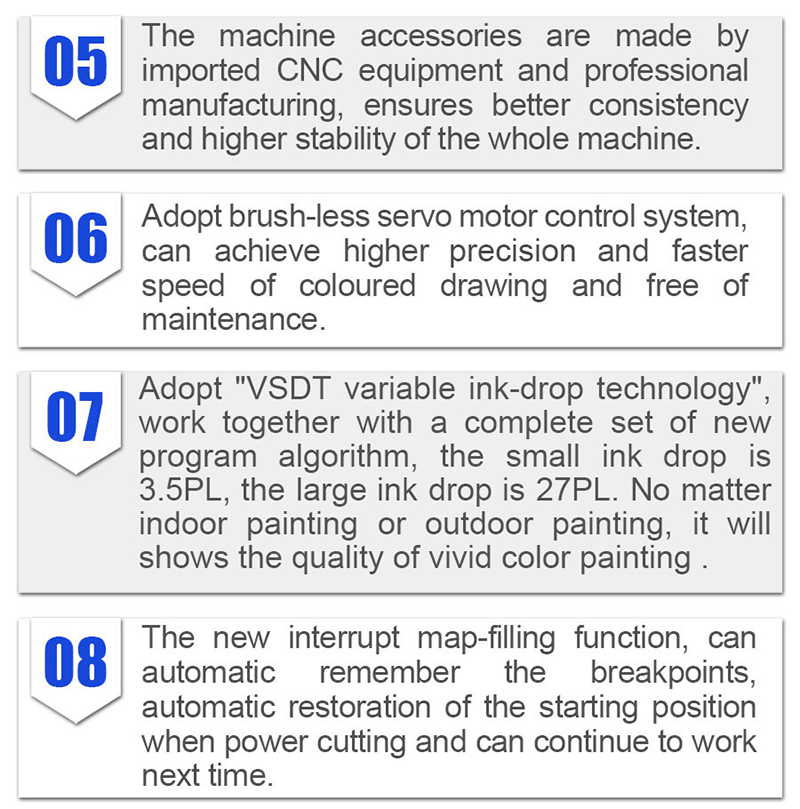

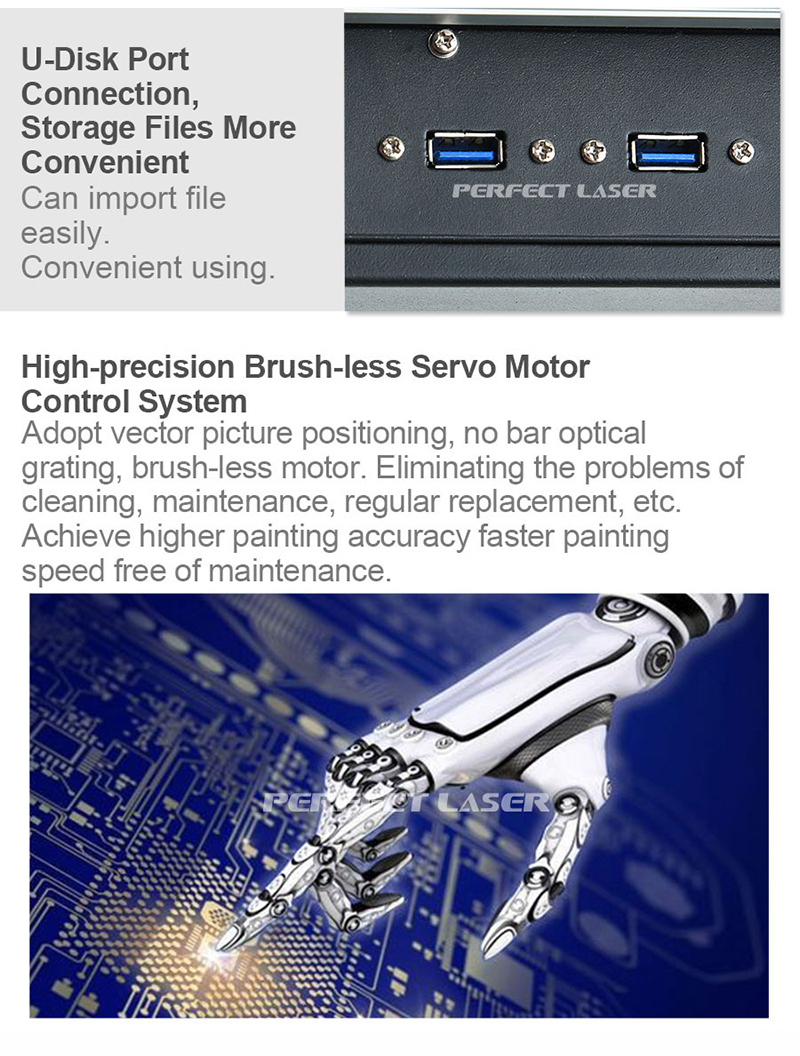

3. High-precision brushless servo motor control system, vector positioning, no strip grating, motor brushless, (avoids cleaning, maintenance, garbled graphics after wear, need to be replaced regularly, etc.) to achieve higher painting accuracy, faster painting speed, and maintenance-free of the inkjet printer for wall mural.

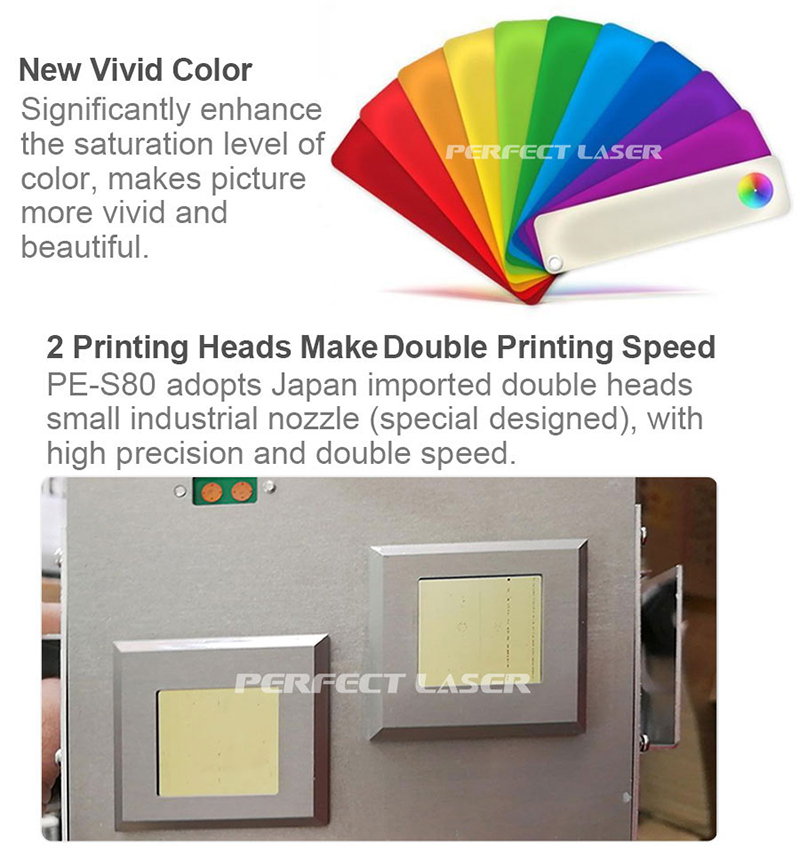

4. The inkjet printer for wall mural using high-definition piezoelectric ink jet technology, high precision, high speed, and durability. Special designed nozzle for industry usage.

5. Adopt VSDT variable ink drop technology, supporting a new program algorithm, the smallest drop of 3d vertical wall printer is 3.5PL, the largest 47PL. The combination of advanced ink drop control method with high fault tolerance feathering technology ensures the output quality is more perfect and the 3d vertical wall printer can adapt to the painting of more special materials, such as: interior and exterior wall putty wall surface, latex paint wall surface, big white, imitation porcelain wall Surfaces, tiles, glass, rice paper, canvas, wall clothing, color coating glaze, shell powder, color grain paint and other walls.

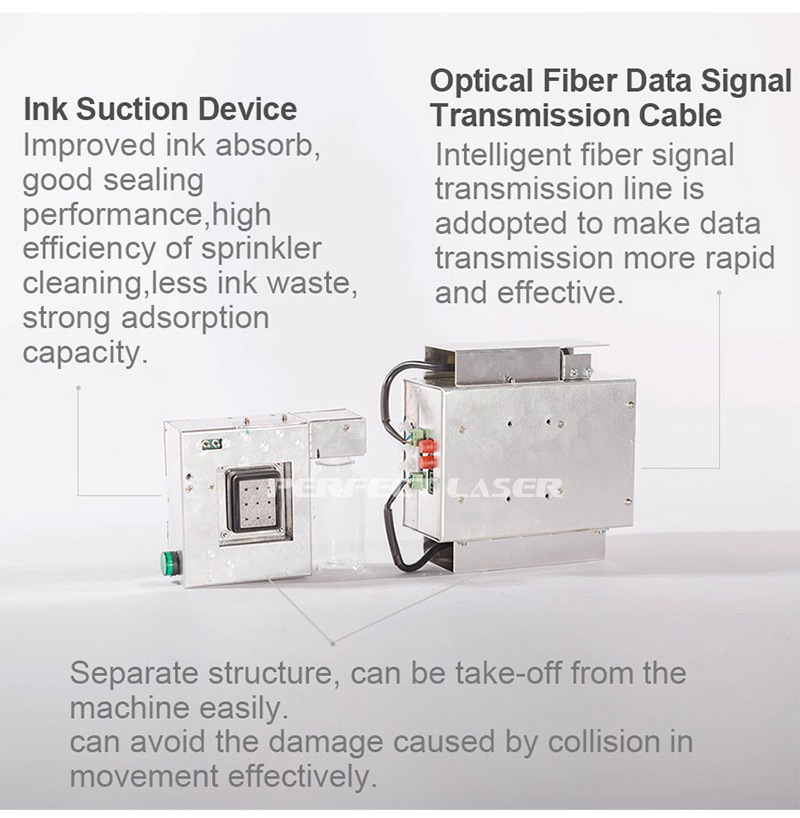

6. The sprinkler data signal of the inkjet printer for wall mural adopts optical fiber integrated transmission (its advantages are: faster speed, strong anti-interference ability, high reliability, more stable transmission data).

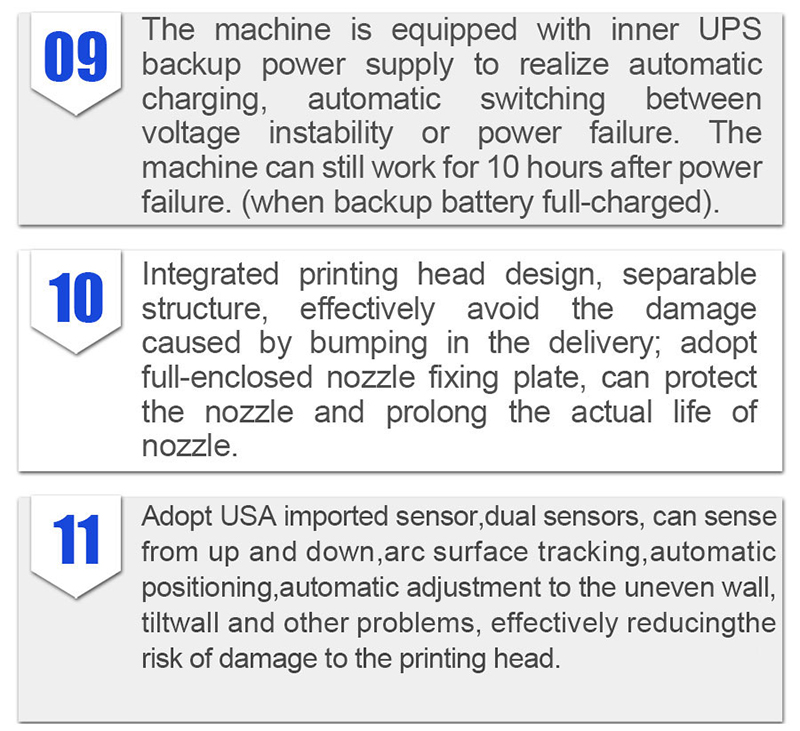

7. Automatic breakpoints memory, automatic recovery of the starting position. The inkjet printer for wall mural can continue to start tomorrow and there is no need to reset, the wall printing machine is equipped with built-in UPS power supply, automatic charging, automatic switching to built in power supply.

8. Self-developed CPLD programmable logic control system, after years of practice, stable performance, in line with military-grade standards.

9. Advanced AC servo control technology to ensure more high-precision printing, better stability and longer service life of the wall printing machine.

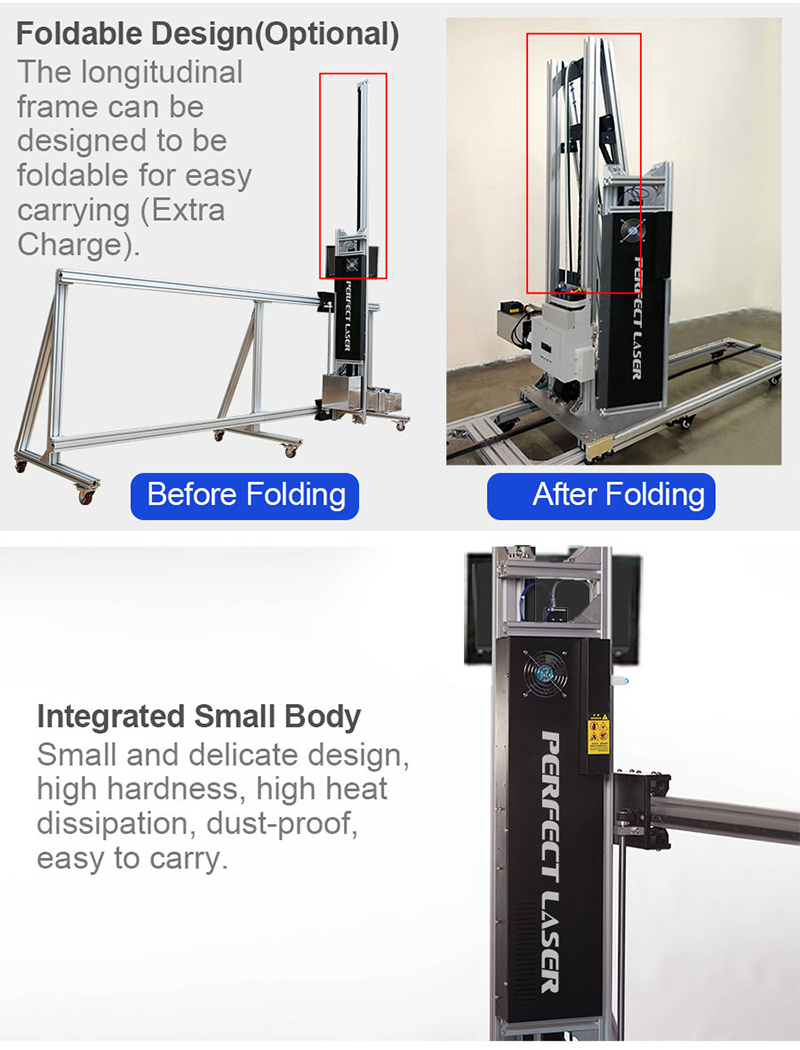

10. Integrated head design and separable structure of the wall printing machine is effectively avoid the damage caused by bumping in the carriage.

11. All-round nozzle protection mounting plate, effectively reducing the damage rate of the wall printing machine nozzle.

12. Simple multi-color ink cartridge ink supply system, stable, convenient, quick and easy to support water and electricity separation of the inkjet printer for wall mural.

13. The improved ink absorber has good sealing performance, high cleaning efficiency of the 3d vertical wall printer nozzle, less ink consumption, and strong adsorption of the ink absorber, and should not be dropped.

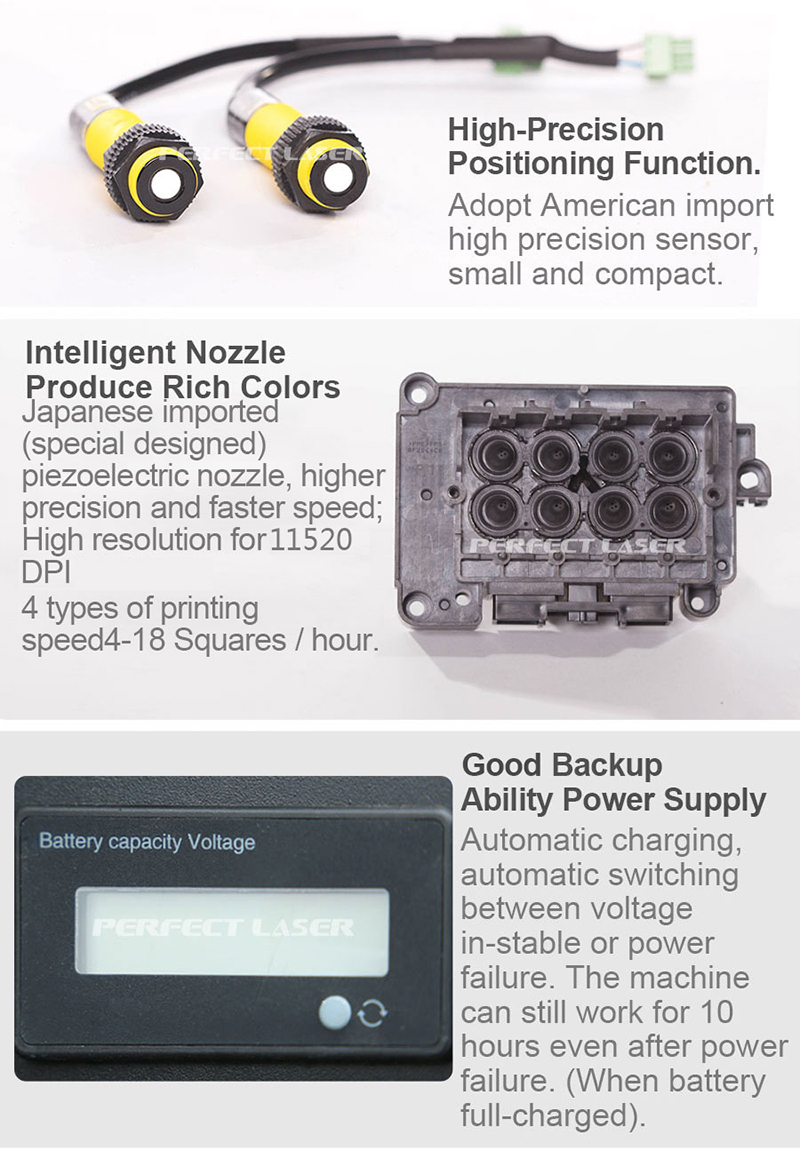

14. The inkjet printer for wall mural using the United States imported sensor system, dual sensors, two-way induction up and down, surface tracking, automatic positioning, automatic solution to the uneven wall, wall tilt and other issues, effectively reducing the risk of damage to the inkjet printer for wall mural head.

15. The output module was upgraded and the output of industrial models increased by 1 time.

Application

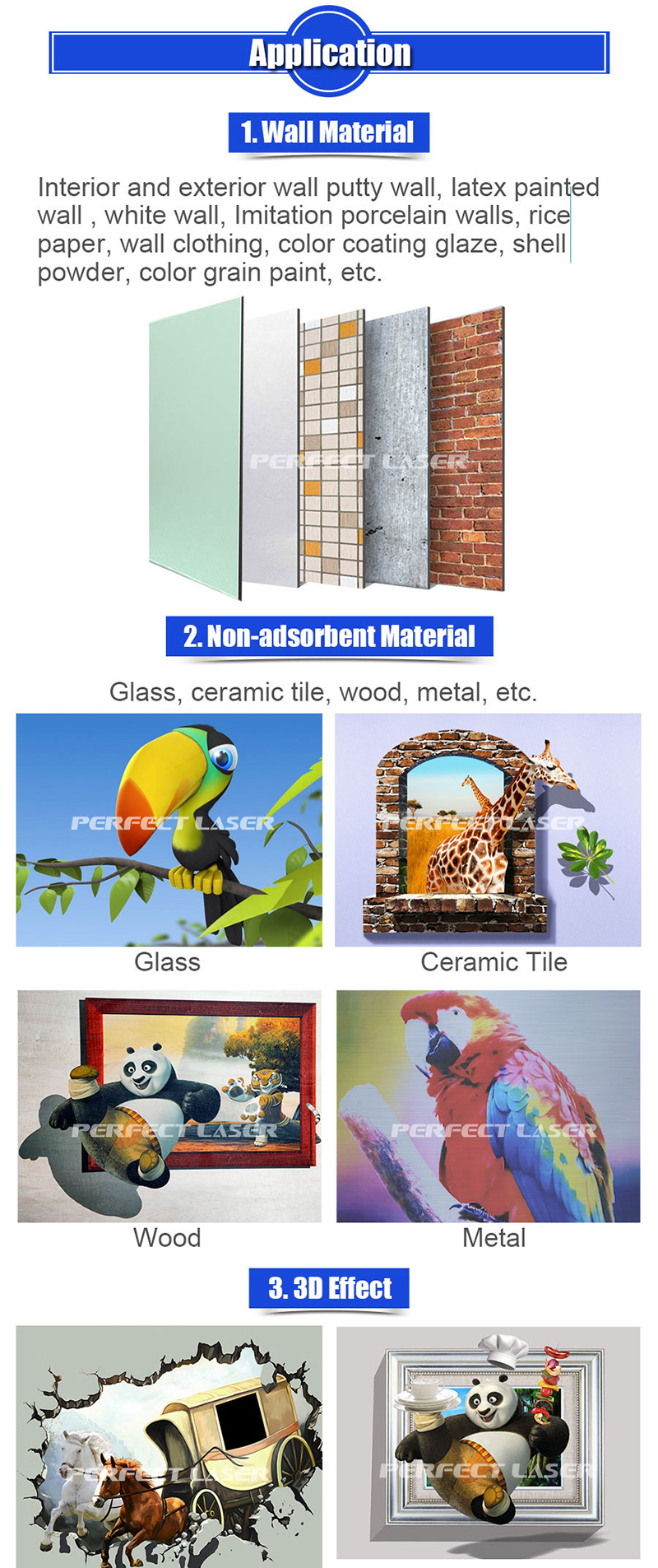

The wall printing machine is widely applied in interior and exterior wall putty walls, latex paint walls, white, imitation porcelain walls, tiles, glass, rice paper, canvas, wall clothing, color coating glaze, shell powder, color grain paint and other walls.

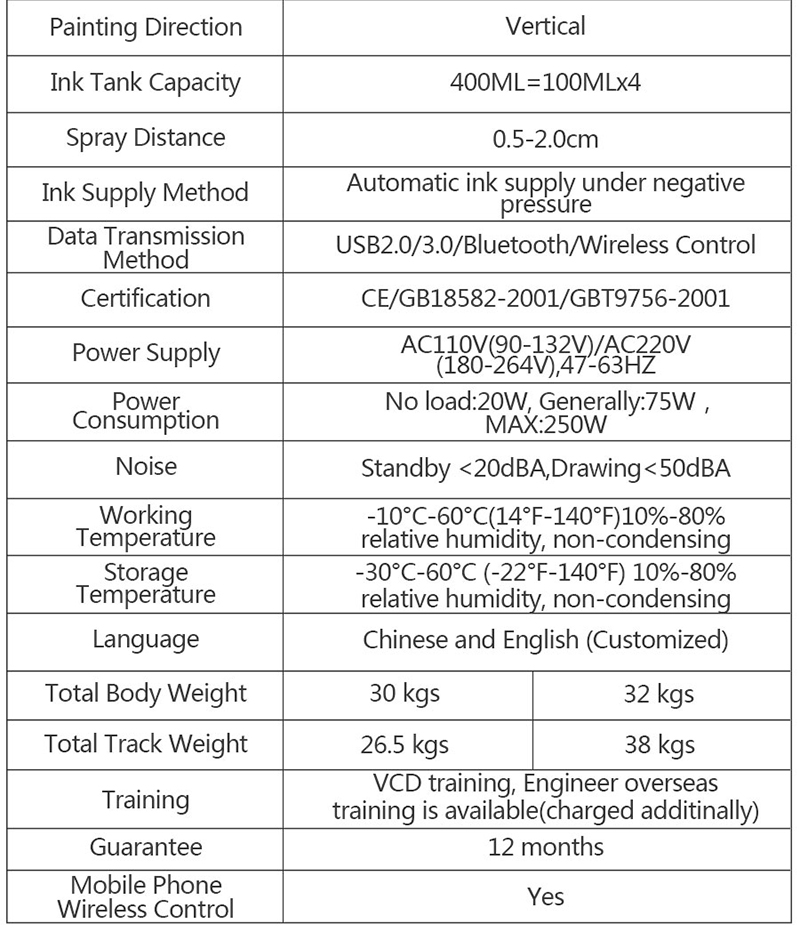

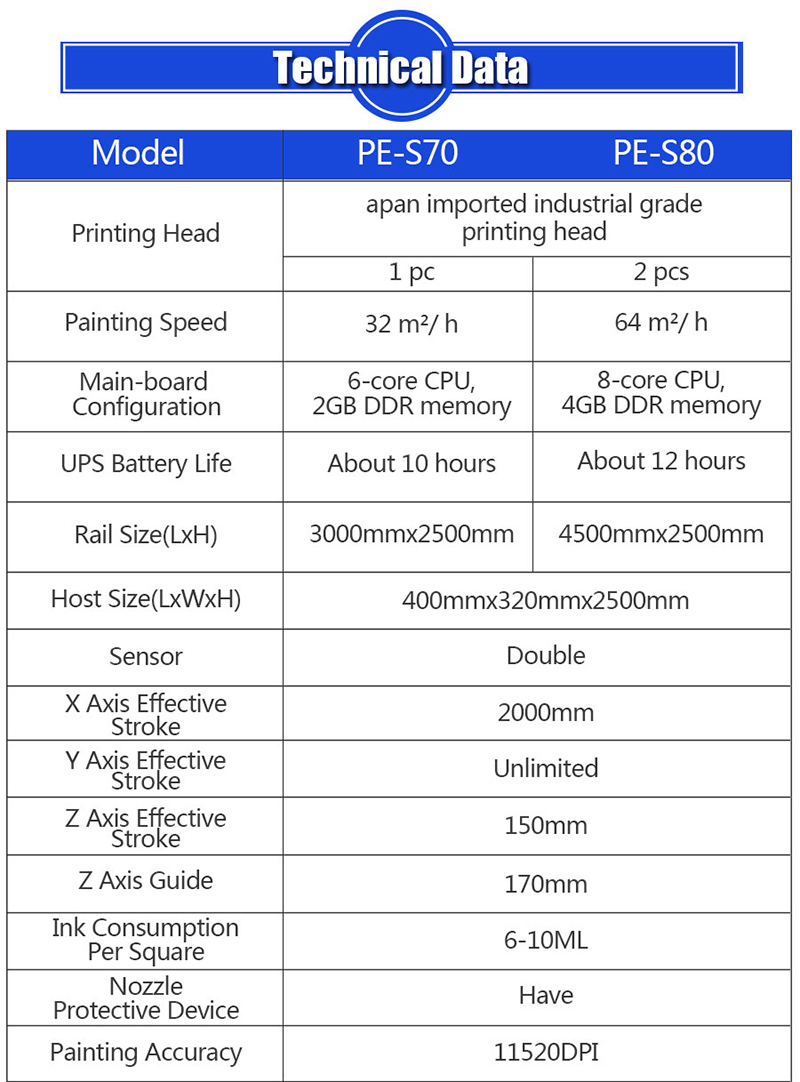

Technical Data

Model

Wall Printing Machine PE-S80

Body

Aluminum magnesium alloy,Frame structure

Mode of Operation

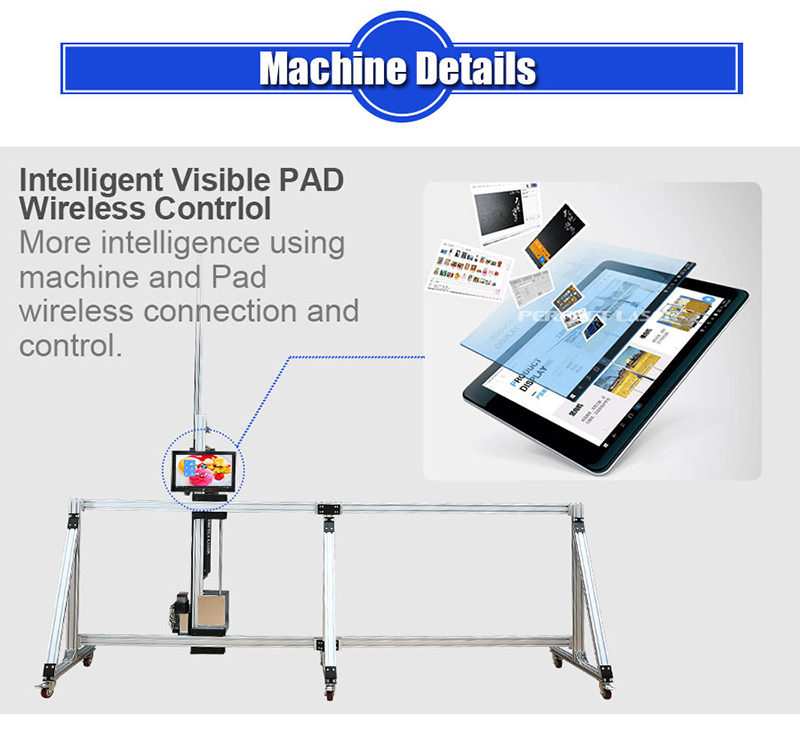

Wireless touch screen

Nozzle type

EMAS small industrial sprinkler (special)

Sprinkler protection

Full - directional sprinkler protection mounting plate, effectively reducing the spray head.Wall damage rate

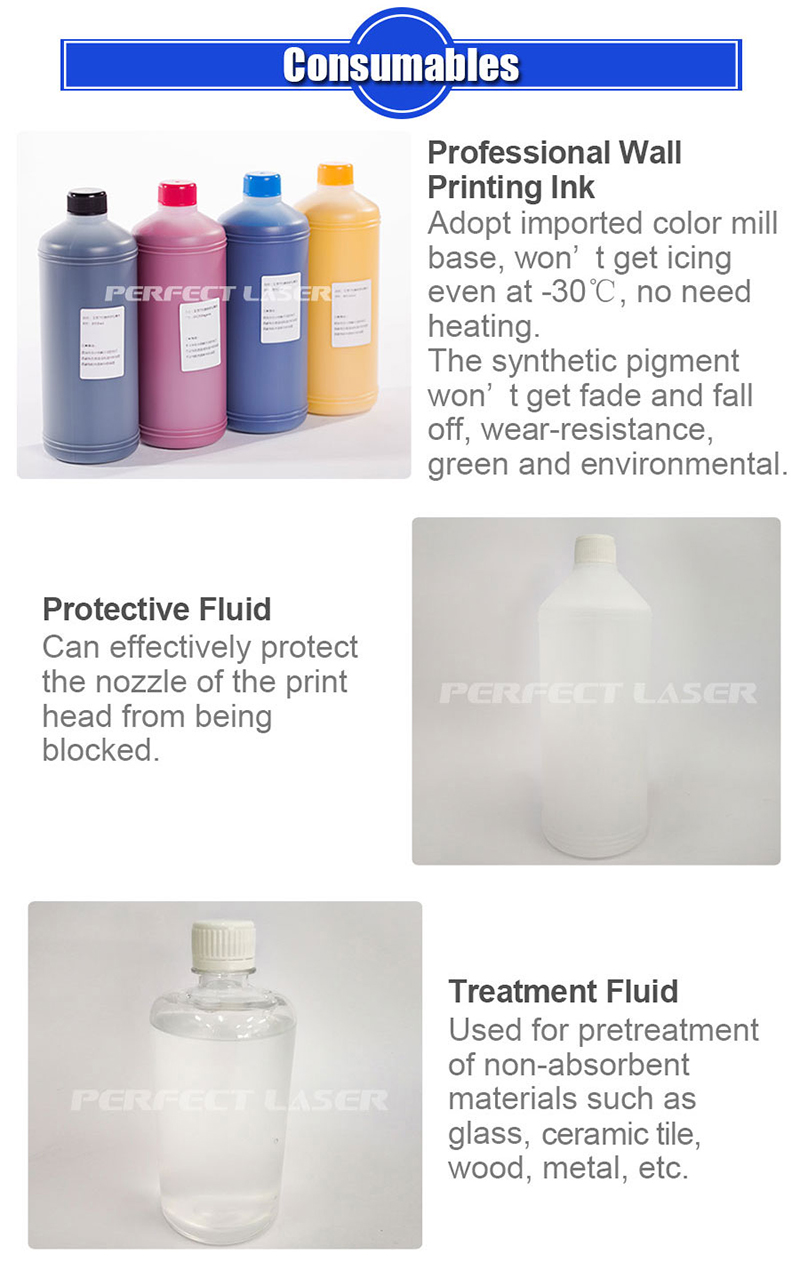

Ink

Special ink for wall printing

The data transfer

Integrated head, telecommunication transmission system with grade optical fiber data

Surface tracking

USA Banner sensor

Motor technology

Brushless motor with no grating bar,non- grating strip cleaning, Free of maintenance.

Feeder system

Automatic feed

Ink absorption technology

Improved ink absorber, good sealing performance, high efficiency of sprinkler cleaning, less wasting of ink , strong adsorption capacity

Technology of coloured drawing

VSDT variable ink drop technology, high fault-tolerant moulding technology.when printinginterrupts, work could recover automatically

Memory recall

New interrupt patch function, automatic memory breakpoint, automatic recovery starting position

Speed of coloured drawing

Three speed adjustable: High ,middle,low

Painted resolution

Indoor:

720X300dpi,

720X600dpi ,

720X1200dpi ,

720X2400dpi

Outdoor:

VL720X300dpi ,

VL720X600dpi ,

VL720X1200dpi ,

VL720X2400dpi

Image type

JPGBMPTIFFPDFAIPSDCDR

Actual painted size

Height: 2000mm ,Width (could be extended)

Atlas type

The machine can store electronic files and external usb drives, Mobile hard disk could use when plug

Power

AC110V90-132V/AC220V180—264VAlternating current47-63HZ

Built-in power supply

Built-in lithium battery UPS system, after power failure, normal work for more than 10 hours

The power consumption

20W(no load), 75W(general) ,250W (maximum)

The noise

Standby < 20dBA, drawing < 50dBA

Operation

-10 -60 (14 F-140 F) 10 -80% relative humidity with non - coagulated state

Storage

-30℃-60℃-22°F-140°F10%-80% relative humidity with non - coagulated state

The system platform

WindowsXP/Win7/Win8/Win9/Win10

The mainboard configuration

8 core CPU, 4GBDDR memory, USB2.0/3.0 data interface

Machine language

Chinese, English (customizable)

Recognize

Green environmental certification, national standard test (gb18582-2001, gbt9756-2001), CE certification

Print mode

Machine speed

Speed (m2/h)

Mode of wall outside

High

18

Middle

14

Low

10

Mode of wall inside

High

6

Middle

5

Low

4

Dazzle colour pattern

Adding dazzle mode, greatly enhance color saturation and the picture is more vivid, beautiful

Equipment features

The actual size

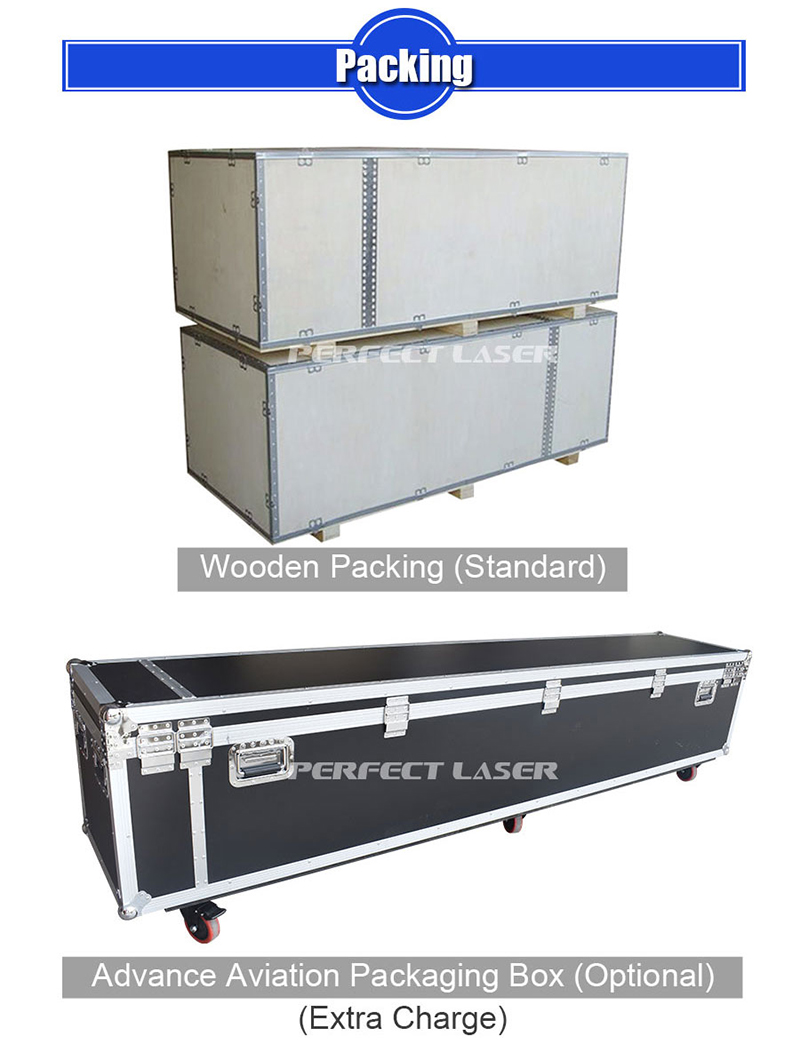

Rack packing size

Horizontal track packing size

Length

6000mm

2610mm

1200mm

Width

670mm

450mm

Horizontal track packing size

Height

2640mm

560mm

390mm
