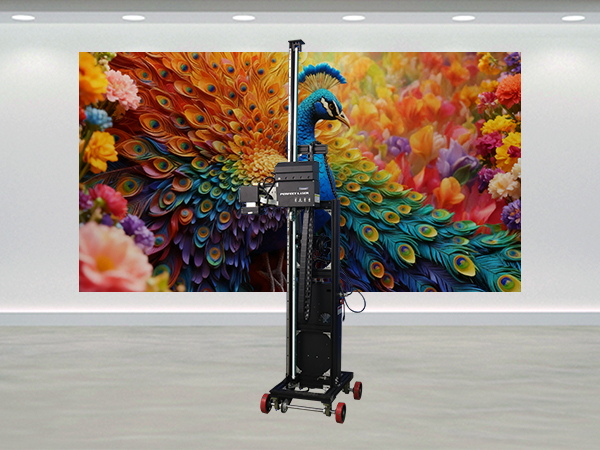

Small Portable 3D UV Ink Vertical Wall Printer Machine

Model: PE-UV50

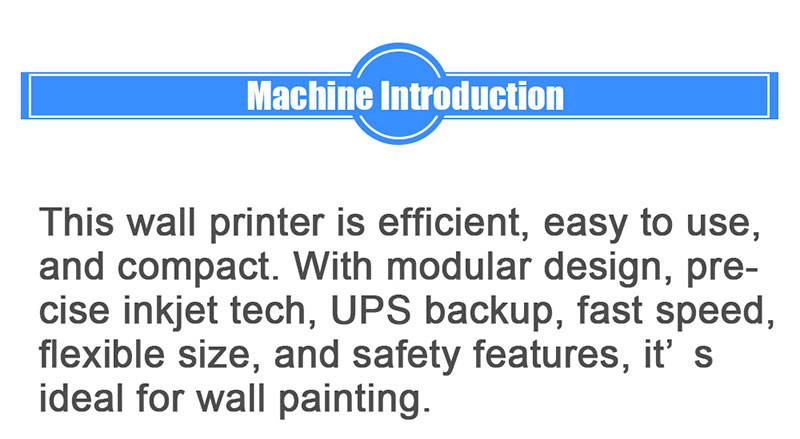

Product Introduction


This small 3d wall printing machine is efficient and convenient. Its modular design allows for easy assembly and maintenance, while the high-precision inkjet technology ensures superior printing quality. It supports multiple operating systems and features intuitive operation. With low power consumption and UPS backup support, it offers fast printing speeds, flexible size adjustment, and stable ink supply, accommodating various ink types. Equipped with curved surface obstacle avoidance, it ensures high safety and has passed stringent certifications. Its compact size and strong adaptability make it a preferred device for wall painting.

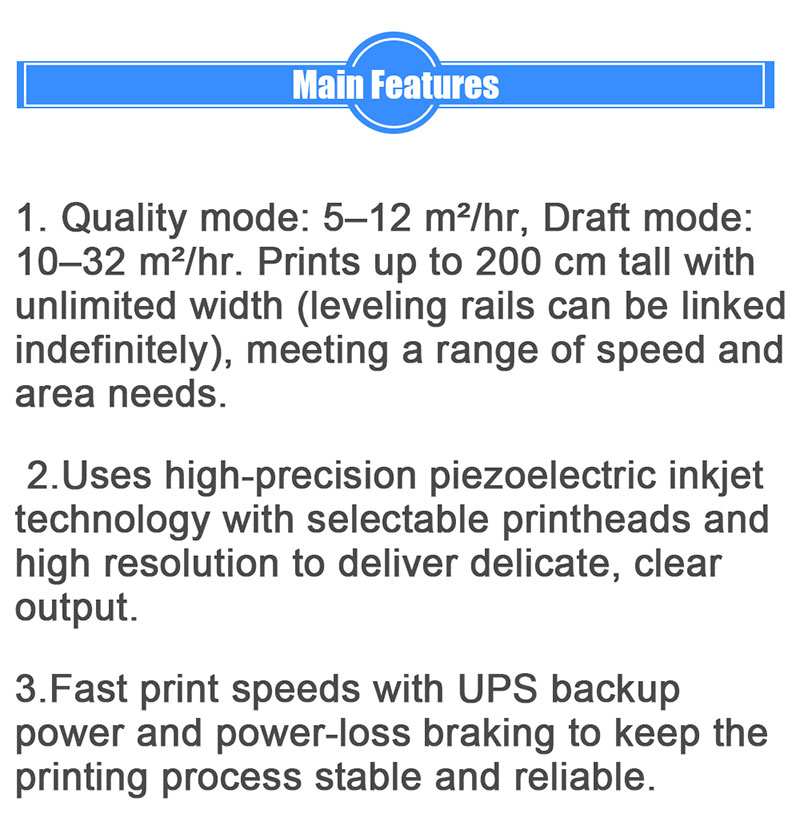

Product Features


1. Quality mode: 5–12 m²/hr, Draft mode: 10–32 m²/hr. Prints up to 200 cm tall with unlimited width (leveling rails can be linked indefinitely), meeting a range of speed and area needs.

2. Uses high-precision piezoelectric inkjet technology with selectable printheads and high resolution to deliver delicate, clear output, it's ideal for a 3d wall printing machine.

3. Fast print speeds with UPS backup power and power-loss braking to keep the printing process stable and reliable.

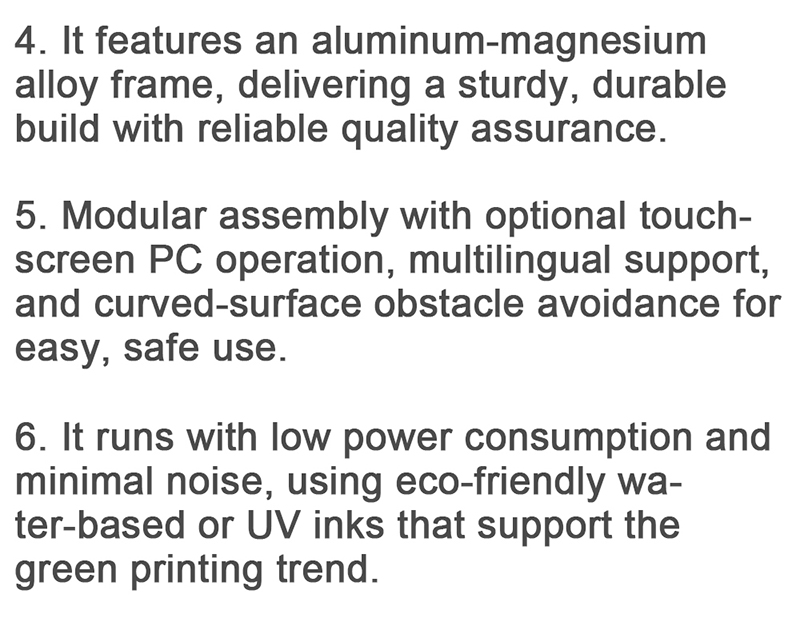

4. The 3d wall printer machine features an aluminum-magnesium alloy frame, delivering a sturdy, durable build with reliable quality assurance.

5. Modular assembly with optional touchscreen PC operation, multilingual support, and curved-surface obstacle avoidance for easy, safe use.

6. The 3d wall printer machine runs with low power consumption and minimal noise, using eco-friendly water-based or UV inks that support the green printing trend.

Application


1. Applicable materials

The wall art printer is suitable for various white walls such as internal and external putty walls, latex paint walls, white, imitation porcelain walls, tiles, glass, rice paper, canvas, wall clothing, color glaze, shell powder, color particle paint ,etc.



2. Applicable industries

The wall art printer is widely used in home decoration, advertising industry, cultural and educational industry, government propaganda, hotel decoration, art experience hall, etc.

Technical Data


Product Name

Multi-functional Wall Printing Machine

Assembly Method

Modular assembly

Painting Technology

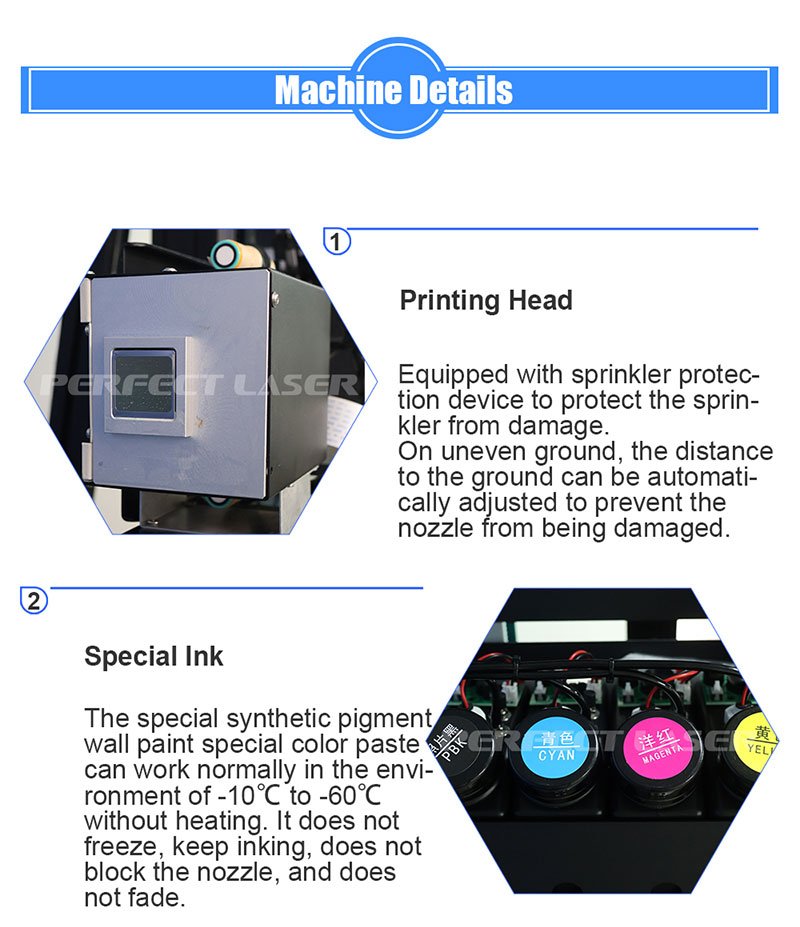

High-precision piezoelectric inkjet technology

Operating System

WIN7 / WIN 10

Power Failure Backup

Connectable to UPS for continued printing

Device Noise

Standby <20DBA, Operating <50DBA

Quality Mode

5-12 sqm/hour

Draft Mode

10-32 sqm/hour

Device Material

Aluminum-magnesium alloy frame structure

Printheads Used

Optional EPSON TX800 /I1600/I3200

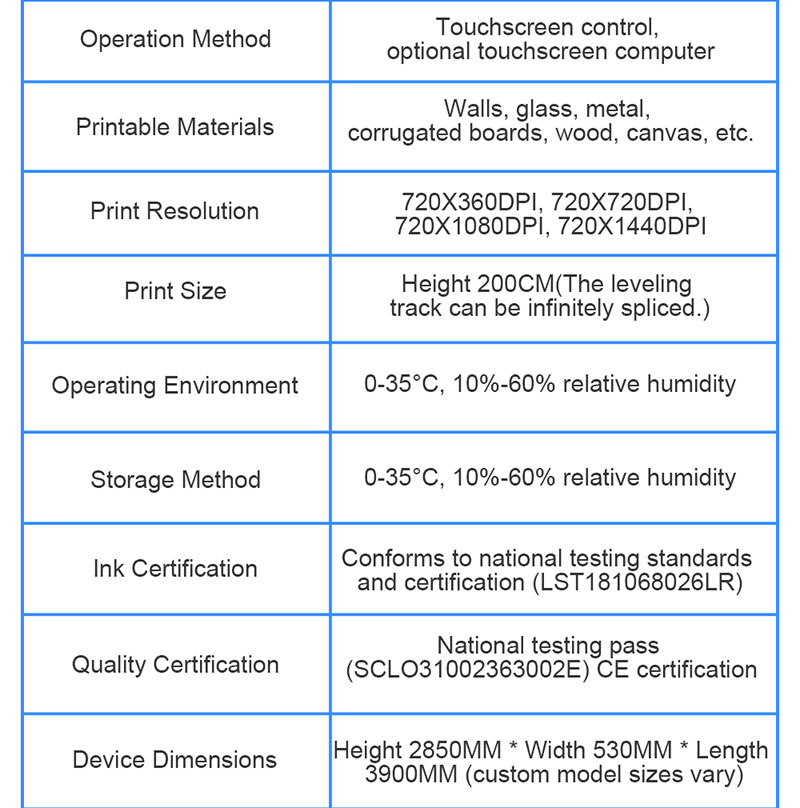

Operation Method

Touchscreen control, optional touchscreen computer

Printable Materials

Walls, glass, metal, corrugated boards, wood, canvas, etc.

Print Resolution

720X360DPI, 720X720DPI, 720X1080DPI, 720X1440DPI

Print Size

Height 200CM

(The leveling track can be infinitely spliced.)

Operating Environment

0-35°C, 10%-60% relative humidity

Storage Method

0-35°C, 10%-60% relative humidity

Ink Certification

Conforms to national testing standards and certification (LST181068026LR)

Quality Certification

National testing pass (SCLO31002363002E) CE certification

Device Dimensions

Height 2850MM * Width 530MM * Length 3900MM (custom model sizes vary)

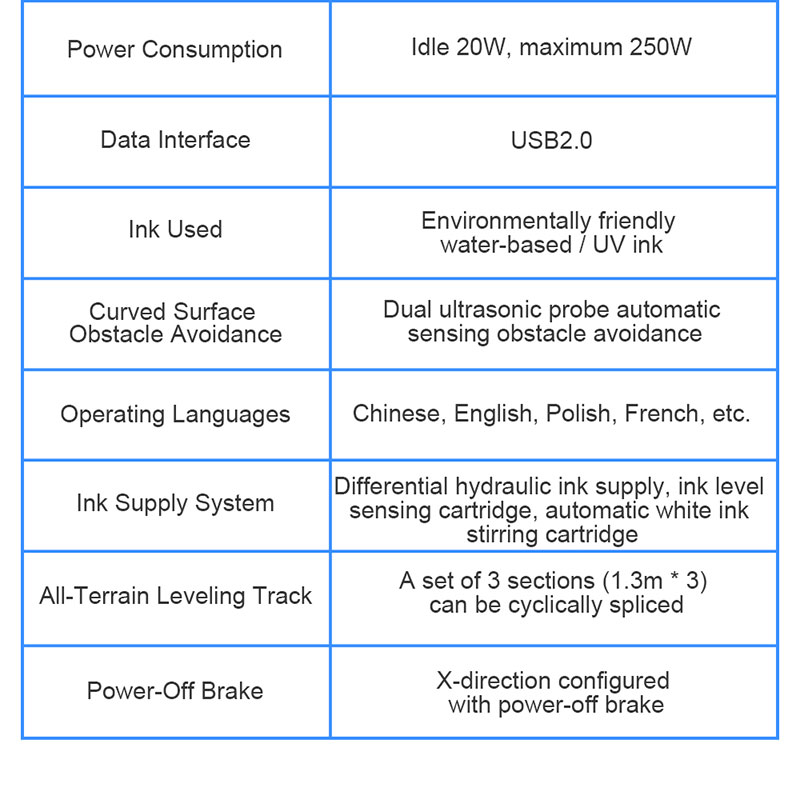

Power Consumption

Idle 20W, maximum 250W

Data Interface

USB2.0

Ink Used

Environmentally friendly water-based / UV ink

Curved Surface Obstacle Avoidance

Dual ultrasonic probe automatic sensing obstacle avoidance

Operating Languages

Chinese, English, Polish, French, etc.

Ink Supply System

Differential hydraulic ink supply, ink level sensing cartridge, automatic white ink stirring cartridge

All-Terrain Leveling Track

A set of 3 sections (1.3m * 3) can be cyclically spliced

Power-Off Brake

X-direction configured with power-off brake

×
