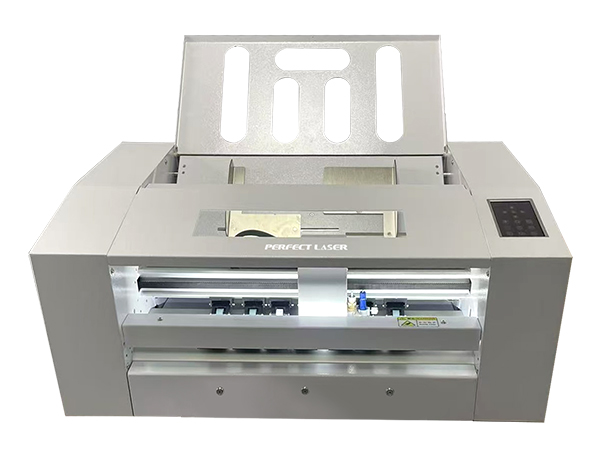

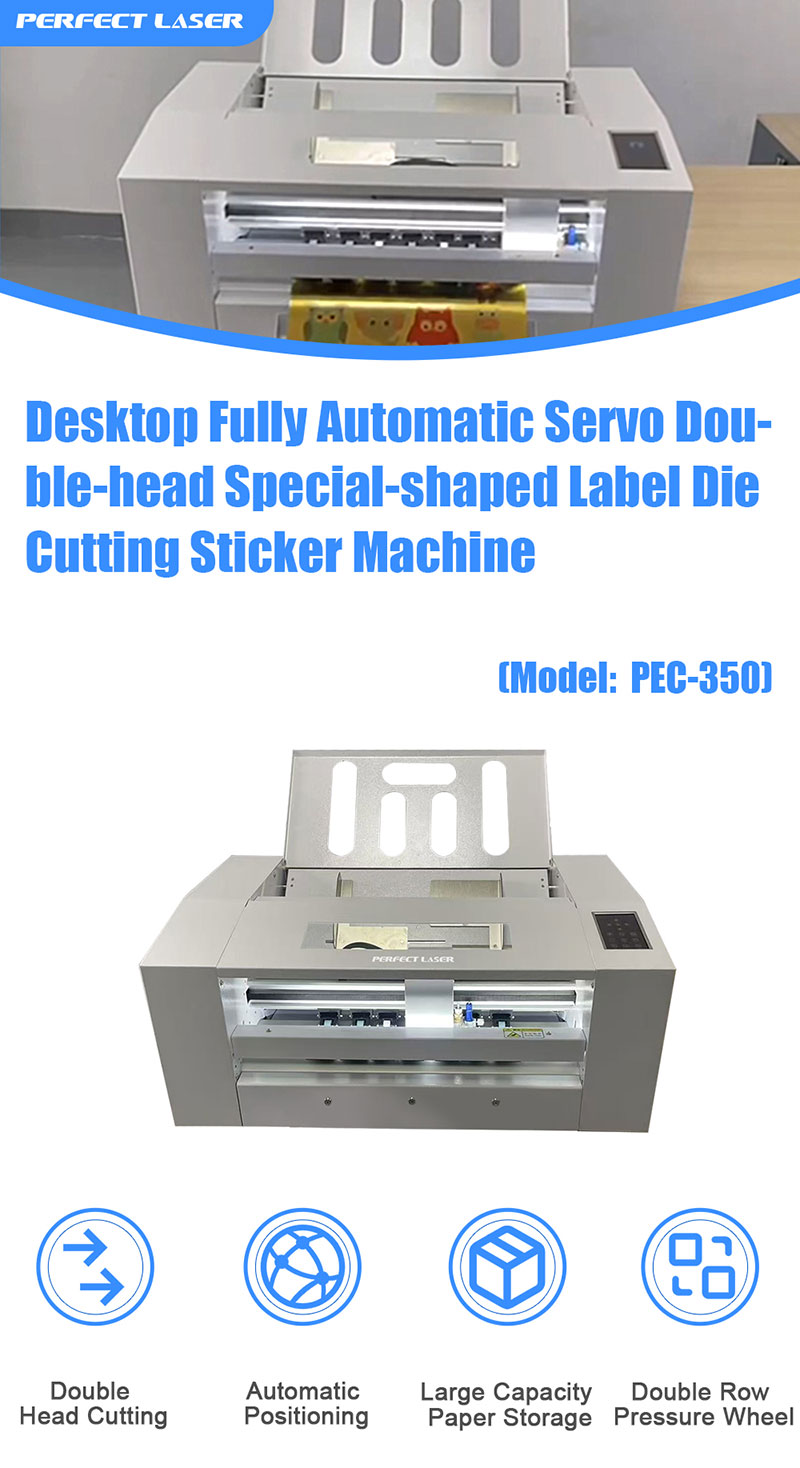

Desktop Fully Automatic Servo Double-head Special-shaped Label Die Cutting Sticker Machine

Model: PEC-350


Product Introduction


The desktop label digital die cutting machine produced by Perfect Laser is a special equipment tailored for cutting and die-cutting operations of various label materials. It has a wide range of application scenarios, especially suitable for small studios, family workshops, school teaching environments and daily office places. The digital die cutting machine stands out with its convenient operation, compact body design and relatively affordable price advantage, and can efficiently meet small-batch production tasks and personalized customization processing needs.

Product Features


1. The desktop die cut sticker machine features a high-precision photoelectric scanner that automatically detects registration marks for precise cutting, eliminating the need for complex manual adjustments. It can accurately cut large-scale graphics with a mere 0.2 mm edge-tracking deviation over a 5-meter cutting length.

2. Featuring both single-sheet and continuous automatic feeding, the system uses an integrated camera to capture images and intelligently locate mark points. With one click, it can extract contours and automatically generate cutting paths, streamlining the workflow.

3. The die cut sticker machine accurately identifies registration marks of any color on transparent or reflective materials. It can detect marks positioned close to the material's edge, increasing usable material area and reducing waste.

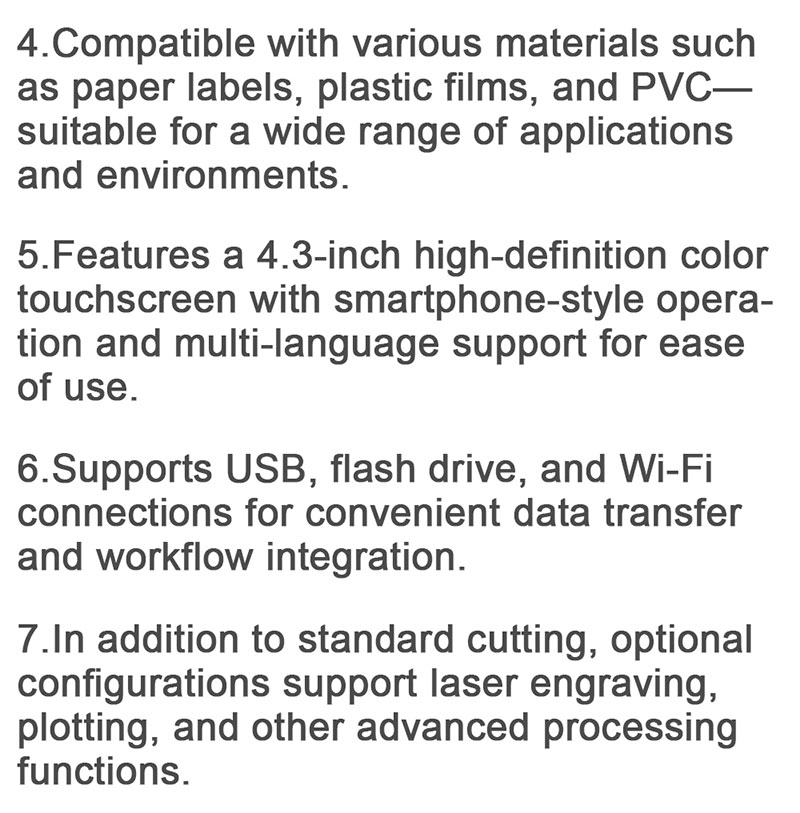

4. It supports a wide range of materials, including paper labels, plastic films, and PVC, making it suitable for various application scenarios.

5. Equipped with a 4.3-inch high-resolution color touchscreen, the interface supports multiple languages and offers a smartphone-style user experience for simplified operation.

6. The die cut sticker machine supports USB, USB flash drive, and Wifi connections, allowing for convenient data transmission and machine control.

7. In addition to basic cutting, functions such as optional laser engraving and lettering are also available.

Application


1. Application Industries

The die cut sticker printer is suitable for use in the automotive industry, packaging and printing, advertising and signage, and office stationery sectors.


2. Applicable Materials

The die cut sticker printer is compatible with coated paper, paper labels, plastic films, PVC, and other materials.

Technical Data

Product Name

Desktop Fully Automatic Servo Dual-Head Die-Cutting Machine

for Custom-Shaped Labels

Model

PEC-350

Max Cutting Speed

1200 mm/s

Max Feeding Width

350 mm

Max Cutting Width

320 mm

Max Cutting Thickness

80g–400g (white card and coated paper)

/ up to 1 mm

Positioning Method

CCD camera positioning

Margin Requirement

5 mm on each side

Mark Detection Method

HD camera detection / circular mark / L-corner mark

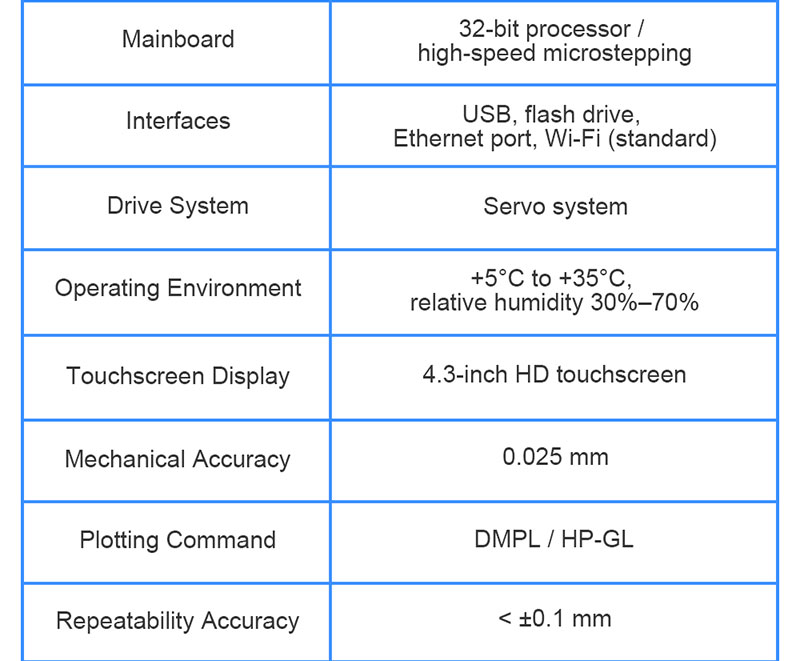

Mainboard

32-bit processor / high-speed micro stepping

Interfaces

USB, flash drive, Ethernet port, Wi-Fi (standard)

Drive System

Servo system

Operating Environment

+5°C to +35°C, relative humidity 30%–70%

Touchscreen Display

4.3-inch HD touchscreen

Mechanical Accuracy

0.025 mm

Plotting Command

DMPL / HP-GL

Repeatability Accuracy

< ±0.1 mm

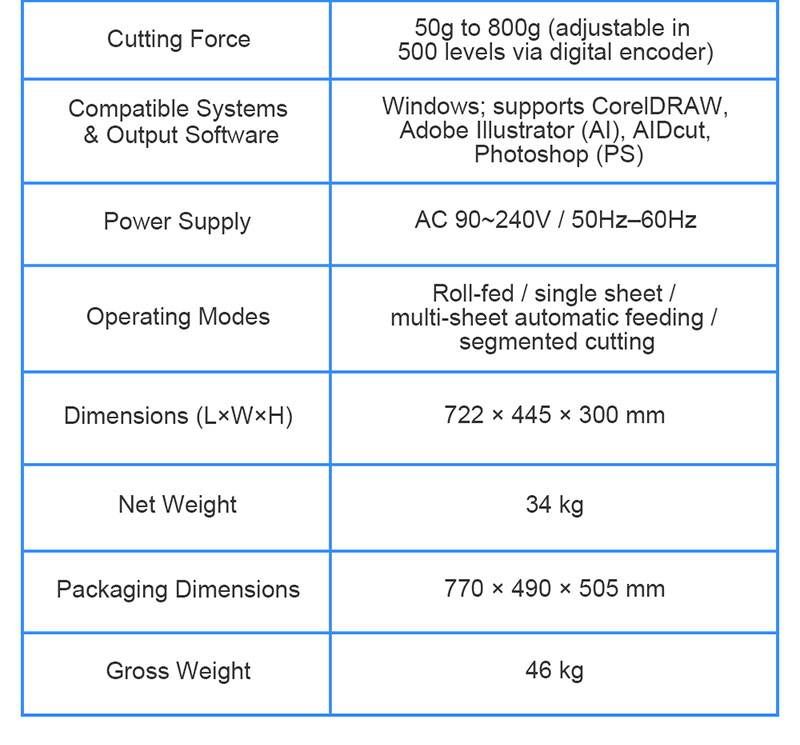

Cutting Force

50g to 800g

(adjustable in 500 levels via digital encoder)

Compatible Systems & Output Software

Windows; supports Corel DRAW, Adobe Illustrator (AI), AID cut, Photoshop (PS)

Power Supply

AC 90~240V / 50Hz–60Hz

Operating Modes

Roll-fed / single sheet / multi-sheet automatic feeding / segmented cutting

Dimensions (L×W×H)

722 × 445 × 300 mm

Net Weight

34 kg

Packaging Dimensions

770 × 490 × 505 mm

Gross Weight

46 kg

×
