Model: PE-100Z

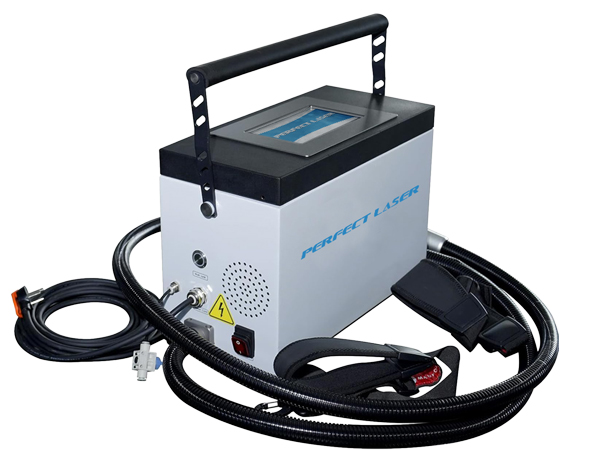

Perfect Laser's new handheld laser rust remover features lightweight design for multi-scenario applications including confined spaces, outdoor environments, and aerial operations. Equipped with an integrated multi-functional cleaning head, it integrates five core technologies: dustproof sealing, red-light precision positioning, roller guidance, auxiliary dust extraction, and dual-control protection, enabling efficient and intelligent cleaning. The handheld laser rust remover supports external battery packs to bypass power supply constraints, significantly enhancing cleaning efficiency and operational versatility in complex working conditions.
1. The laser rust cleaner is compact and lightweight, making it suitable for both hand-held and back-carrying, and fully aligns with ergonomic principles.
2. Equipped with an intelligent operating system, it provides a variety of working modes for users to flexibly choose.
3. The mini multi-mode cleaning head can accurately clean specific locations and sizes.
4. The laser cleaning system is stable and reliable, and the subsequent maintenance and maintenance costs are relatively low.
5. The operation process is simple and fast, and the handheld laser rust cleaner can be started by simply turning on the power, with low learning costs.
6. Made of metal material, combined with a double safety protection mechanism, it ensures that the product quality is stable and durable.
7. The laser rust cleaner is fully functional and comes complete with accessories that enhance operational safety and reduce physical effort.
8. There is no need for chemical cleaning fluids or any consumables, which truly realizes a safe and environmentally friendly cleaning method.
1. Applicable industries
The handheld laser cleaner is suitable for aerospace, automobile manufacturing, electronics and semiconductors, cultural relics protection, and food processing industries.
2. Applicable materials
This handheld laser cleaner is suitable for metal products, stone products, rubber molds, etc.
Product Name | 100W 150W 200W Portable Handhled Pulse Fiber Laser Rust Cleaner |
Model | PE-100Z |
Laser Type | Fiber Laser |
Laser Power (W) | 100~200 |
Operating Mode | Pulsed |
Center Wavelength (nm) | 1064±3 |
Laser Pulse Width Range (ns) | 150~340 |
Laser Frequency Range (kHz) | 20~200 |
Power Adjustment Range (%) | 10~100 |
Scanning Speed (mm/s) | ≤30000 |
Scanning Range (mm) | 100*100 (default) |
Field Lens Specification (mm) | F=210 (customizable - 7 specifications available) |
Fiber Length (m) | 3 (customizable) |
Cleaning Head Weight (kg) | 0.78 |
Cooling Method | Air-cooled |
Cabinet Dimensions (mm) | 420x190x280 / 390x260x280 |
Total Machine Weight (kg) | 15~22 |
Total Machine Rated Power (W) | <900 |
Power Supply Voltage (VAC) | 1∮110~240 |
Power Supply Frequency (Hz) | 50/60 |
Auxiliary Gas | Interface reserved (optional) - Compressed Air (oil and water filtration required) |
Air Pressure (MPa) | 0.3~0.8 |
Noise Db(A) | <60 |
Operating Temperature (℃) | 5~40 |
Equipment Standards | IS09001, CE-Intertek |
Placement Environment | Free from strong vibrations and impacts, level and balanced |
