20W Touch Screen Small Handheld Metal Stainless Steel Nameplate Laser Marking Machine-PEDB-150
20W Touch Screen Small Handheld Metal Stainless Steel Nameplate Laser Marking Machine-PEDB-150
20W Touch Screen Small Handheld Metal Stainless Steel Nameplate Laser Marking Machine

Model: PEDB-150


Product Introduction


The handheld laser marking machine features an all-in-one design that’s easy to use and built for portability. Its compact, innovative structure makes it ideal for both indoor and outdoor applications. Equipped with a high-precision laser system, it delivers clear, permanent, and visually appealing marks—well suited for industrial-grade marking needs.

Product Features

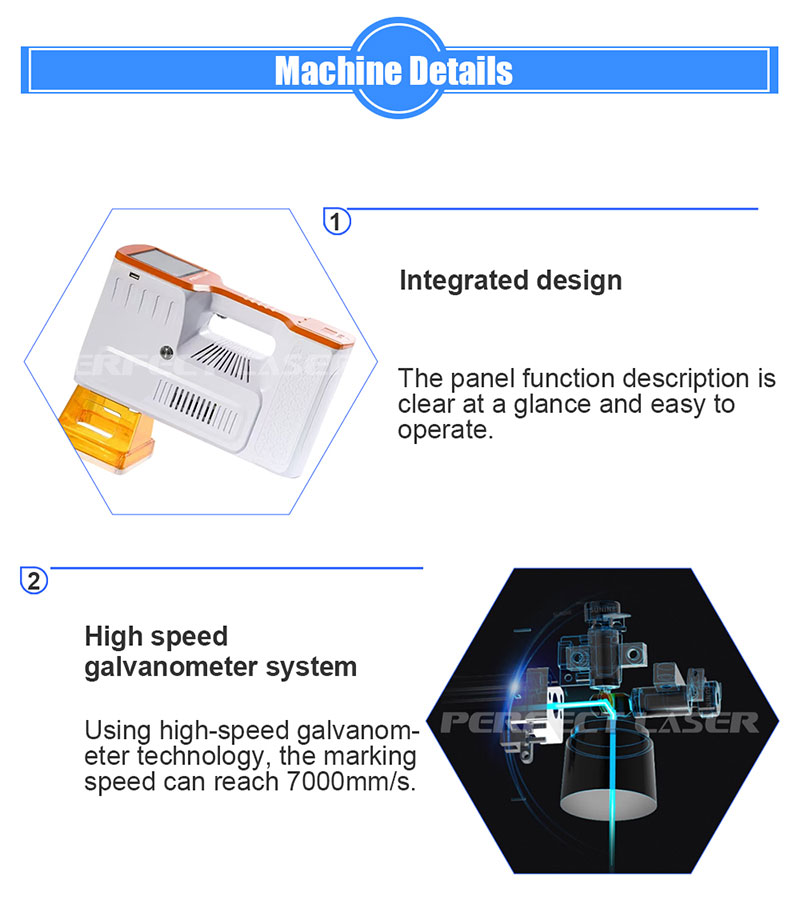

1. The handheld laser engraver features high-speed galvanometer technology, with marking speeds up to 7000 mm/s.

2. It allows for flexible, distance-free operation and supports easy switching between 50×50mm and 100×100mm marking areas for precise control.

3. Designed with a pull-out battery compartment, the handheld laser engraver supports hot-swappable high-capacity lithium batteries, offering 3 to 5 hours of runtime (actual duration may vary depending on usage and ambient temperature).

4. Powered by a self-developed chip, the system provides real-time intelligent matching and monitoring of marking performance, ensuring outstanding reliability.

5. Built with an integrated industrial design, the control panel function description of handheld laser engraver is clear at a glance and easy to operate.

Application


1. Applicable materials

Handheld laser coder can mark wood, plastic, metal, sheet metal, cardboard, and other common materials.


2. Applicable industries

Handheld laser coder is widely used in the packaging, home, construction, manufacturing, and DIY home industries.

Technical Data

Product Name

Small and Portable Metal LOGO Stainless Steel

Nameplate Laser Marking Engraving Machine

Machine Material

Engineering Plastics

Laser Type

Fiber Laser

Output Power

≥20W

Laser Wavelength

1064nm

Printing Method

High-precision two-dimensional scanning method

Marking Speed

≤7000mm/s

Master

Highly integrated motherboard, embedded 5 Inch screen

Maximum Pulse Energy

0.67mj

Frequency Adjustable Range

27-60kHz

Operating System

P9

Cooling System

Normal temperature air cooling

Marking Line Type

Dot matrix, vector all-in-one machine

(can print both dot matrix and vector)

Reflector Size

Standard: 10mm

Marking Range

100mm*100mm/50mm*50mm(Choose one)

Positioning Method

Red light positioning

Number of Character Lines

Any line within the marking range

Print Speed

650character/Seconds

(Specific speed depends on product material and printing content)

Font

Simplified Chinese, Traditional Chinese, English, Korean, Russian,

Arabic numerals and other standard fonts

Image Format

BMP/PNG/JPG/JPEG/PLT/GIF/PBM

(Recommended PLT Format)

Barcode/QR Code

CODE39,CODE128,CODE126,EAN13,PDF417,01CODE,

QR,AZTECCODE,DM,GS1DM,DOTCODE,HANXINCODE

Battery Capacity

6Ah

Maximum Power Consumption

≤150W

Machine Net Weight

(Fixed Focus Hood 100*100)

4kg

Control Box Size

(Fixed Focus Cover 100*100)

339mm*160mm*273mm

Pollution Degree

2

Over Voltage Category

Adapt to Temperature

5-40℃

Relative Ambient Temperature

≤85%RH(No condensation)

×
