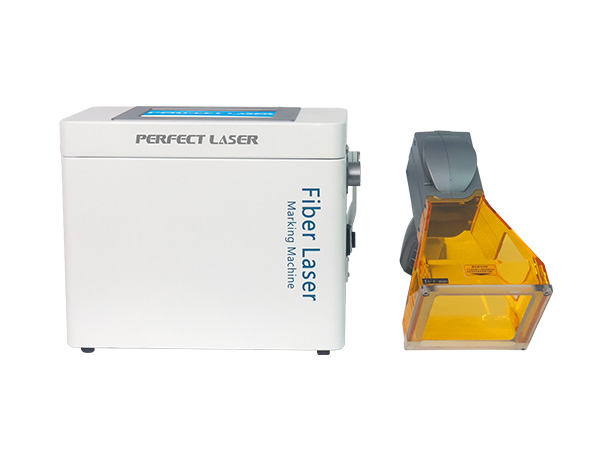

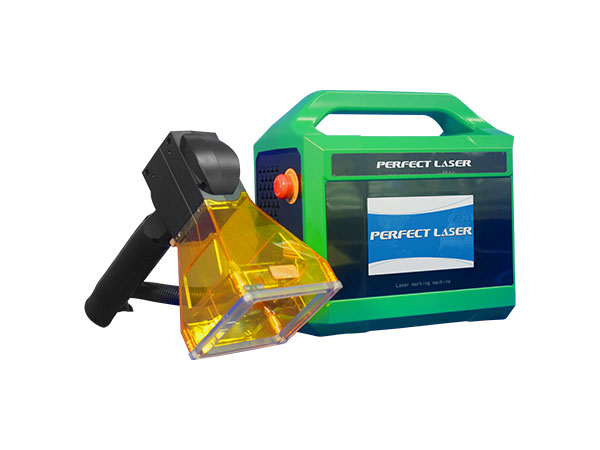

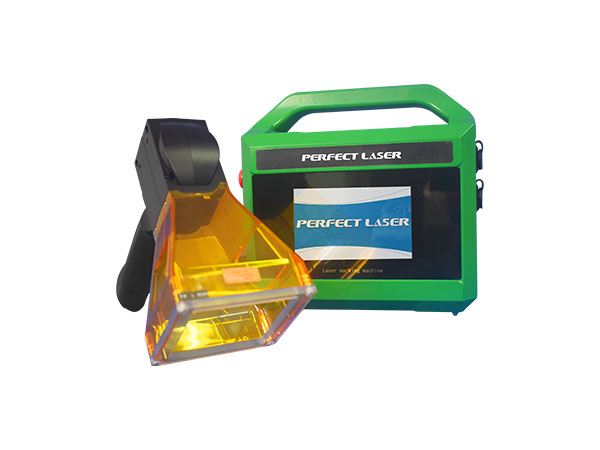

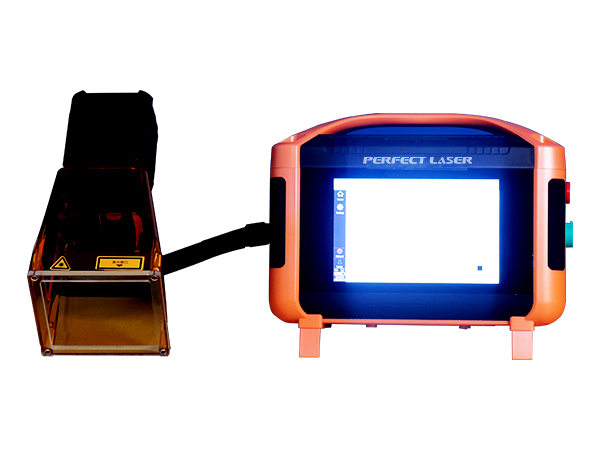

20w 30w Handheld Portable Small Metal Fiber Laser Marking Engraving Machine

Model: PEDB-160


Product Introduction


Perfect Laser's new generation of portable handheld laser marking machine is more timely and efficient in trouble-shooting and problem processing.Using programmable devices and high-speed and high-precision DA integrated circuits, the laser processing and positioning are accurate and fast.

All-optical coupling isolation technology is applied in this portable laser marking machine. The whole system has low power consumption, good stability and strong performance.

This mini laser marking machine is specially designed for marking on many kinds of metal products and some hard plastic products.

Product Features


1. High-hardness engineering-grade plastic machine body ensures that the body is not easily exposed to water and dust in various production environments.

2. The integrated structure of the handheld laser marking machine is small and compact, with friendly man-machine dialogue interface, and the operation is simple and easy to use.

3. It uses a two-dimensional magnetic levitation galvanometer laser scanning head, which is small in size, fast in speed and accurate in positioning.

4. The laser source has a long service life and is maintenance-free.

5. Highly sensitive touch screen, intelligent red light positioning, powerful system function, high efficiency, high speed and stability.

6. The plane and slope surface can be marked. It can be moved anytime, anywhere.

7. Any content of letters, numbers, date, Logo, picture, QR code, barcode can be marked.

8. This portable laser marking machine has 6 - 8 hours super long standby time.

Application


The handheld laser marking machine is suitable for marking on various production materials, such as: stainless steel, carbon steel, mild steel, iron, aluminum, zinc, copper, brass, etc. as well as curved objects, rigid plastics, etc.

Technical Data

Product Name

Handheld Portable Fiber Laser Marking Machine

Model No.

PEDB-160

PEDB-161

PEDB-162

PEDB-163

Machine Material

Engineering Plastic

Laser type

Fiber Laser

Laser Power

≥20W

≥30W

≥20W

≥30W

Laser Wavelength

1064nm

Marking Method

High-precision 2D Scanning Method

Marking Speed

≤7000mm/s

Main Control Board

Highly integrated main board with embedded 7-inches screen

Operating System

Linux

Cooling Method

Air Cooling

Marking Line Type

Dot matrix + Vector all-in-one machine

(both dot matrix and vector)

Mirror Size

8.5mm

Marking Area

50mmx50mm (Standard Marking Area)

100mmx100mm (Optional Marking Area)

Position Method

Red light positioning

Marking Speed

650 characters/second

(the specific speed is related to the material & marking content)

Font Support

English / Korean / Russian / Arabic / Chinese

numerals and other standard fonts

(only choose one of above)

File Format

BMP / DXF / HPGL / JPEG / PLT

Barcode/QR code

CODE39 / CODF128 / CODE126FAN13 / PDF417 / 01CODFOR / AZTFCCODF/ DM / GS1DM / DOTCODE / HANXINCODE

Power Supply

220V Plug In Mode

Battery Charging Mode

Maximum Power Consumption

≤300W

Battery Fully Charged Time

No

4 hours

Battery Continuous Working Time with Full Power

No

6-8 hours

Net Weight

6 kgs

Temperature

0-40℃

Ambient Relative Humidity

30%-85% RH

Training & After Sales Service

VCD training + 24 hours after-sales service

Warranty

36 month for fiber laser source

24 month for whole machine
