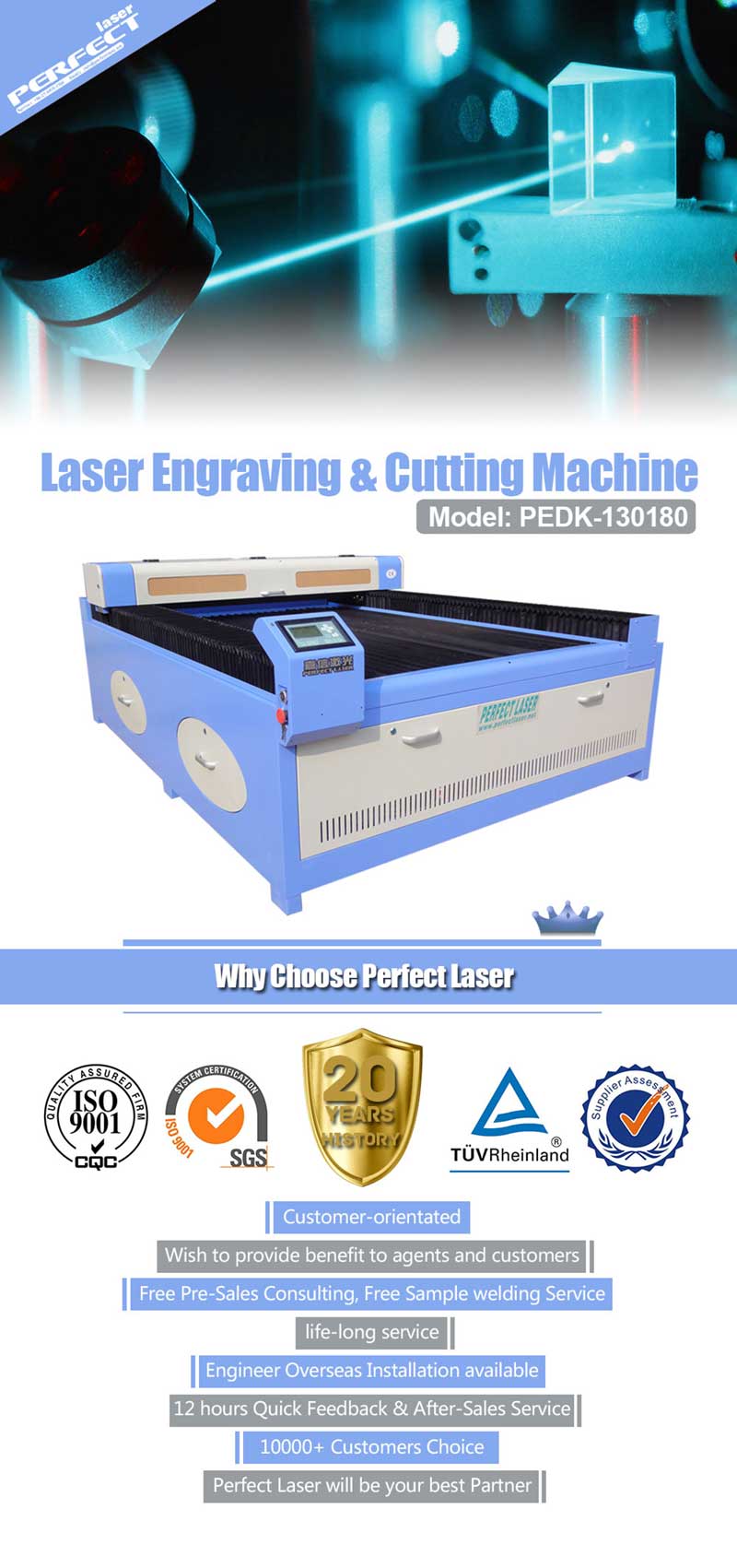

PEDK-130180 Co2 Laser Etching Machine for Fabric Leather

Style NO. :

Introduction

The flat bed laser etching machine is a multi-function laser process machinery, it combines the functions of drawing, engraving and cutting.

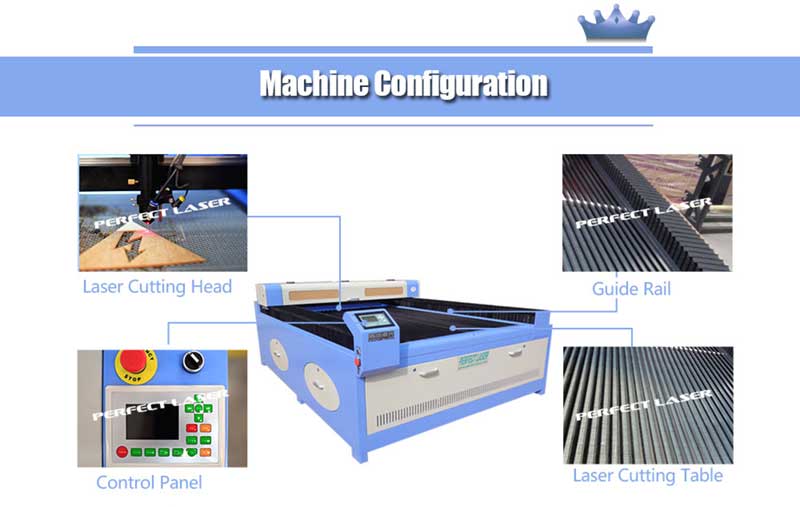

Perfect Laser this kind of PEDK-130180 CO2 large-format laser etching machine is a multifunctional laser processing equipment, widely used in apparel advertising and other industries. CO2 large-format laser leather etching machine adopts a stable and solid working chassis, which can guarantee the stability during quick work, small shaking, and does not affect the work accuracy. At the same time the laser etching machine is equipped with linear guides and precision gear transmission systems, special treatment of stainless steel crawler type steel mesh platform, high precision machining, easy operation, never deformation.


Features

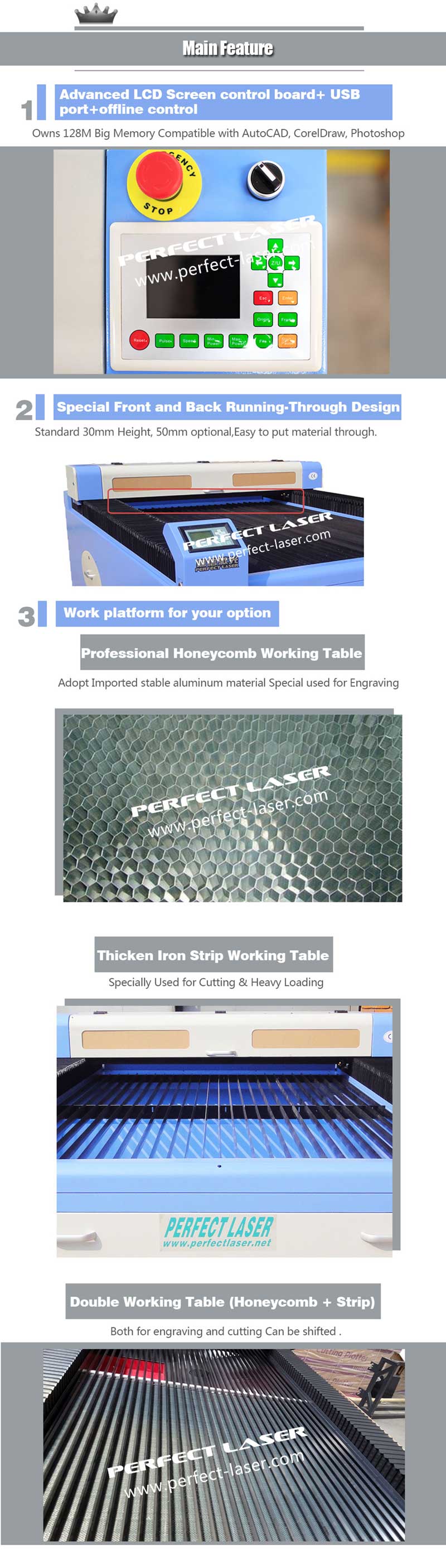

1. CO2 large-format laser etching machine adopts stainless steel crawler steel mesh platform, processing range is 1300X1800mm, a wide range of cutting area to meet the large-format cutting needs of apparel carpets and other fields.

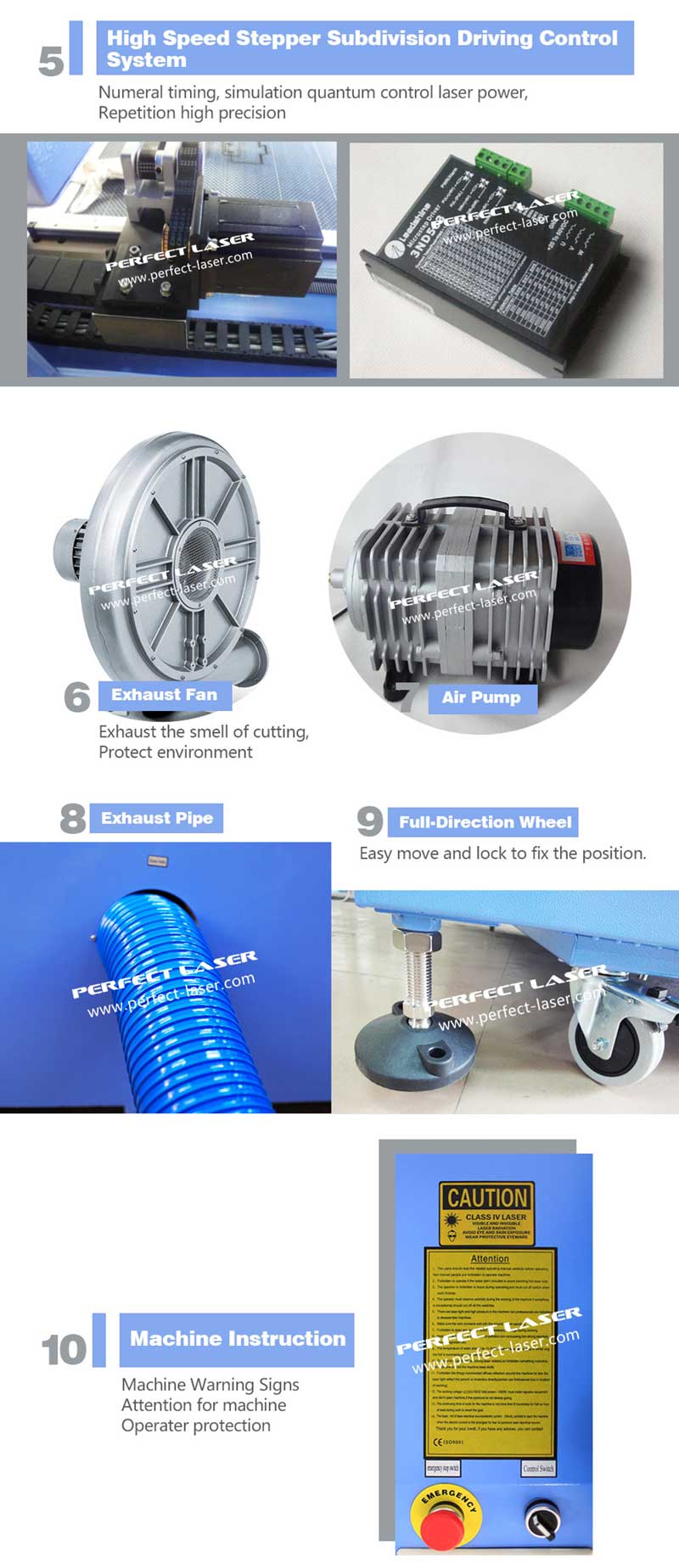

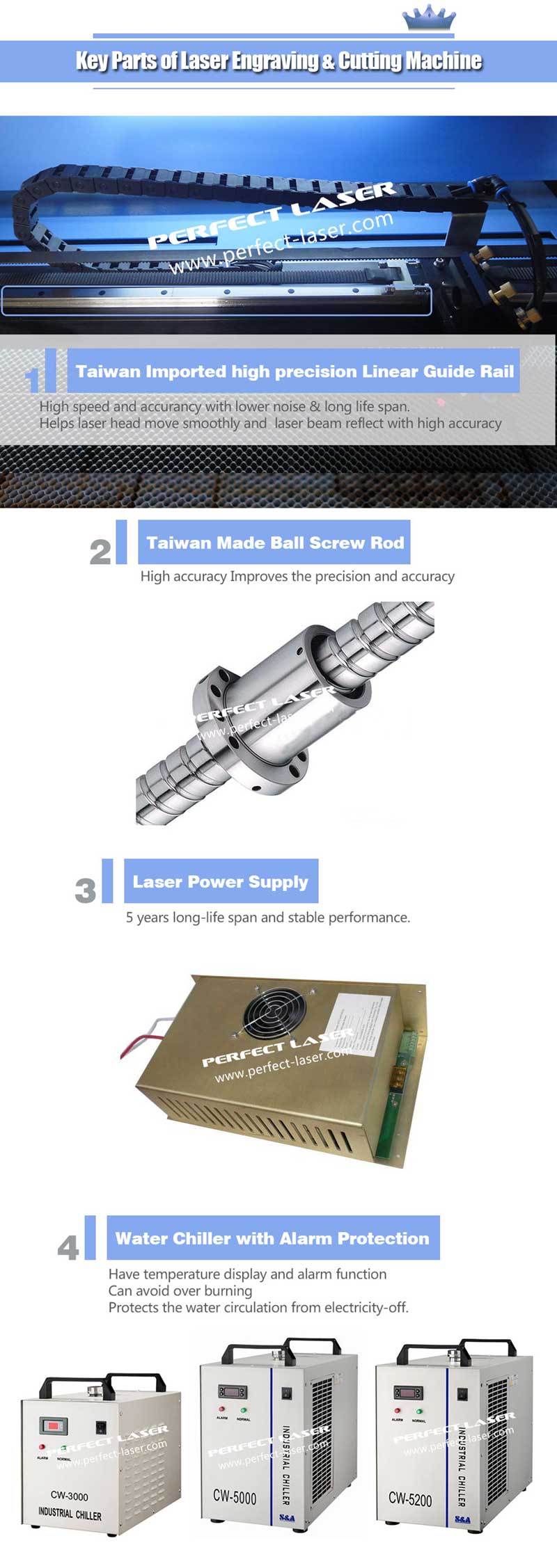

2. The cooling system is good: CO2 large format laser etch machine is equipped with professional CW-3000 chiller, and has an automatic alarm function, which can avoid the damage of the heat generated by long-time laser processing on the machine, automatic circulation of cold water, with a thermometer Display, intuitive control.

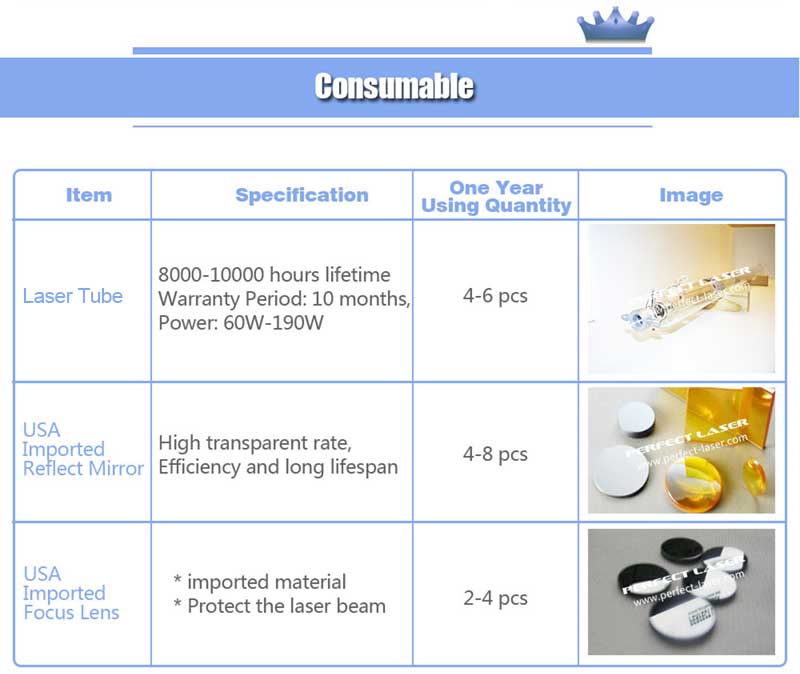

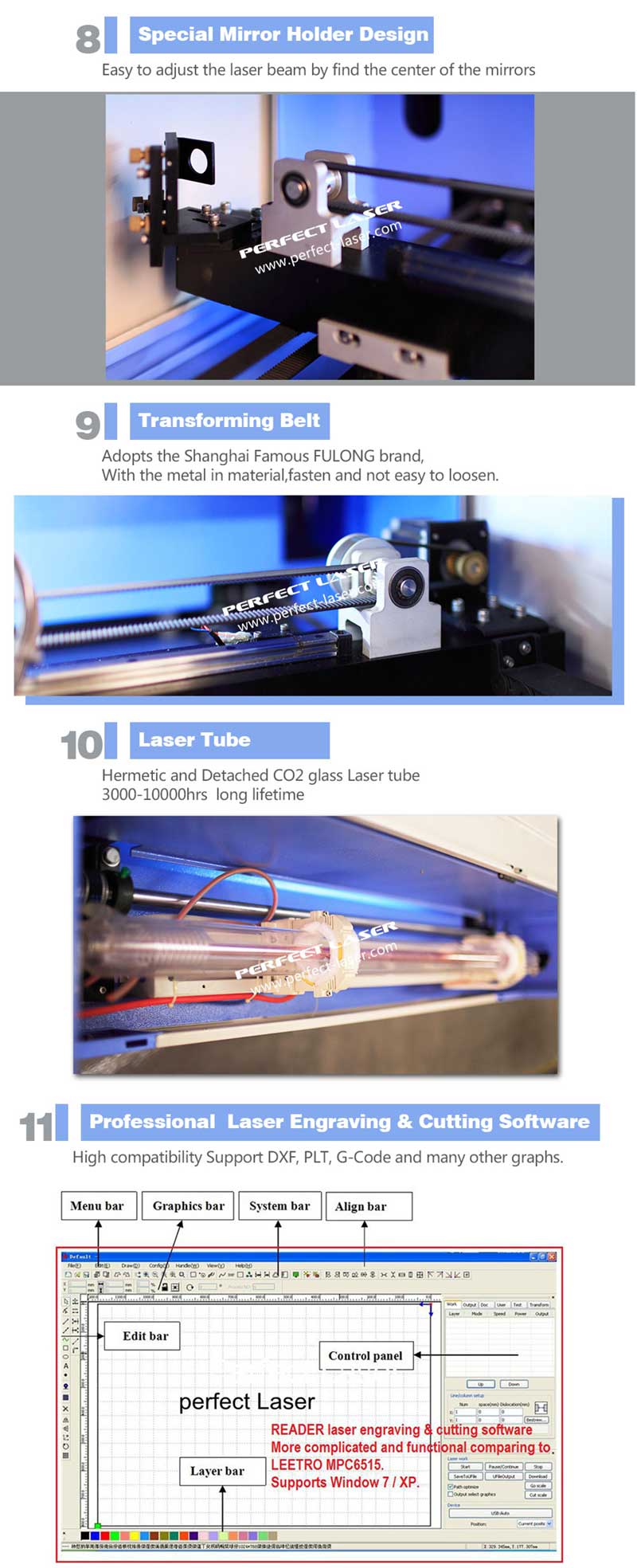

3. High quality of laser beam and good cutting effect: CO2 large-format laser etch machine adopts imported focusing lens and all-metal reflective lens, and the optical path propagation beam has low quality loss, and the lens is free of maintenance. A good laser source guarantees the final cutting effect of the fabric etching machine with high precision, no burrs and no yellowing.

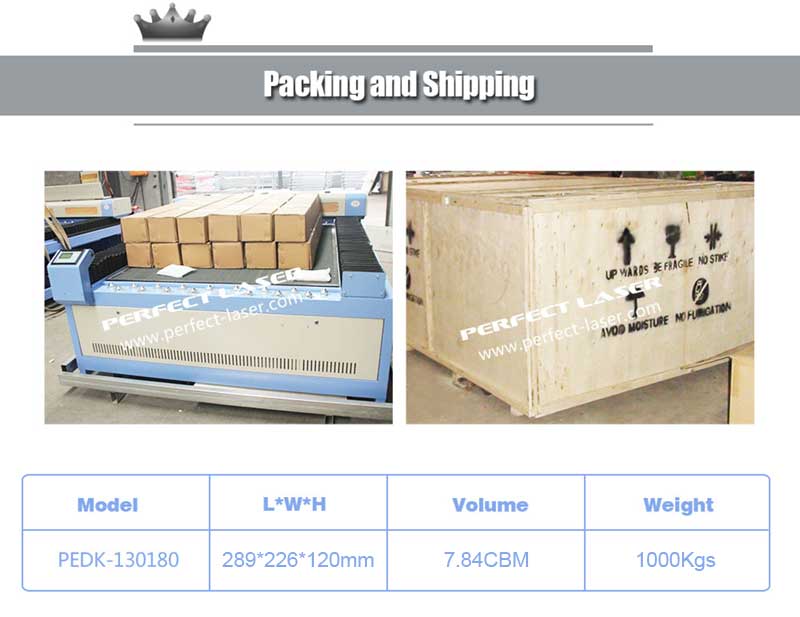

4. Packing Waterproof and Anti-seismic: In order to ensure that the goods reach the destination safely and safely, Perfect Laser will package the fabric etching machine from the inside to the outside with 4 layers of materials, waterproof plastic bags, foam boards, cartons, wooden boxes and all spare parts.

Application


1. Applicable materials: the CO2 laser etching machine is applied in cloth, plexiglass,leather fabric,carpet,acrylic, plastic,denim, double-color board, PVC board,rubber board, stamps and stamps, paper, organic glass, MDF,wood, plywood and other non-metallic materials

2. Applicable industries: the CO2 laser etching machine is usually applied in embroidery and leather, clothing , craft gifts, crystal ornaments, billboards, paper cutting, wood products, bamboo and decoration industries.

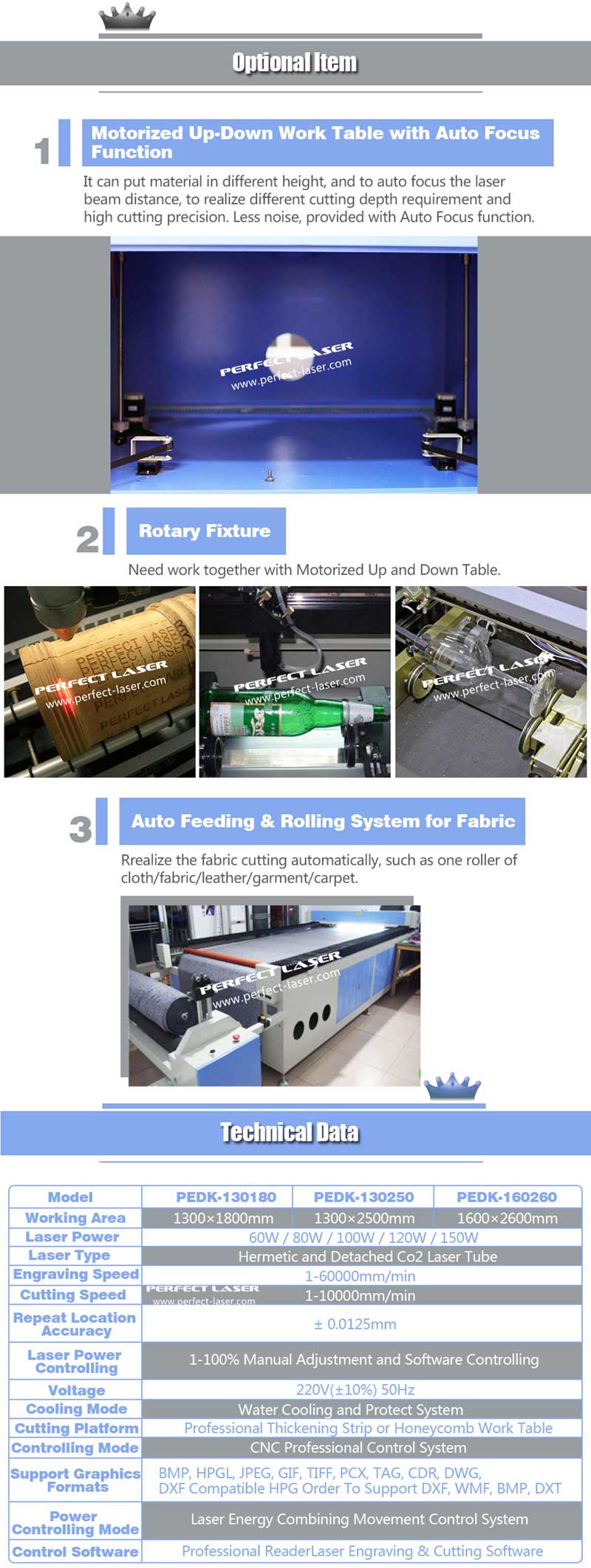

Technical Data

Model

PEDK-130180

PEDK-130250

PEDK-160260

Working Area

1300×1800mm

1300×2500mm

1600×2600mm

Laser Power

60W / 80W / 100W / 120W / 150W

Laser Type

Hermetic and Detached Co2 Laser Tube

Engraving Speed

1-60000mm/min

Cutting Speed

1-10000mm/min

Repeat Location Accuracy

± 0.0125mm

Laser Power Controlling

1-100% Manual Adjustment and Software Controlling

Voltage

220V(±10%) 50Hz

Cooling Mode

Water Cooling and Protect System

Cutting Platform

Professional Thickening Strip or Honeycomb Work Table

Controlling Mode

CNC Professional Control System

Support Graphics Formats

BMP, HPGL, JPEG, GIF, TIFF, PCX, TAG, CDR, DWG, DXF Compatible HPG Order To Support DXF, WMF, BMP, DXT

Power Controlling Mode

Laser Energy Combining Movement Control System

Control Software

Original Perfect Laser Engraving & Cutting Software
