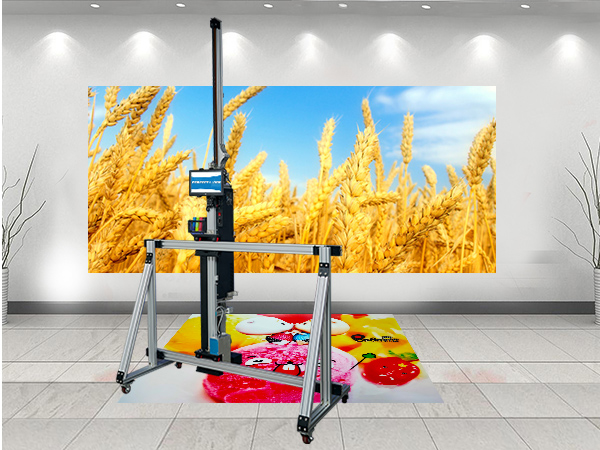

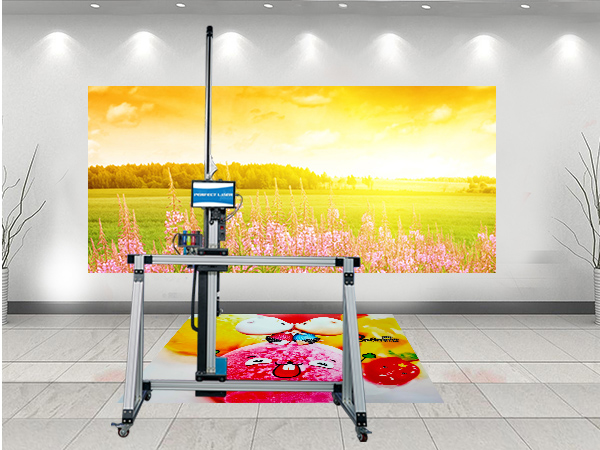

5D Floor Ground Wall Inkjet Printing machine

Model: PE-S10

Product Introduction

The 5D floor and ground inkjet printing machine is a new product strongly launched by Perfect Laser. It adopts imported Japan Epson high-definition print heads. The maximum spray speed can reach 64㎡/h. It’s fast, one-time imaging, with bright color, and will not get fade.

Product Features

1.Equipped with dual ultrasonic sensors, up and down two-way inductive surface tracking, automatic positioning, and automatic solution to uneven surface and floor tilt. .

2.AI intelligent image processing speed is fast and efficient.

3.Comes with 11.6 inch touch panel, easy and clear operation.

4.Negative pressure automatic ink supply ensures the continuity of ink supply, prevents dust from entering the ink tube and nozzle, prolongs the service life of the nozzle, and is more suitable for outdoor environments.

5. The printing head is automatically cleaned with one button, no need to be disassembled, and it can be completed automatically, which effectively guarantees the smooth flow of the ink path. The printing head adopts an automatic protection device, which greatly reduces the risk of the printing head being affected by the external environment.

6.High precision: the highest painting precision can reach 9600 DPI.

7.Built-in power supply backup. The floor ground inkjet printing machine can work continuously for up to 10-12 hours without external power supply or power failure.

Application

1. Applicable Materials

The floor ground inkjet printing machine is suitable for all kinds of white walls, such as: putty walls, ceramic tile walls, latex paint walls, cement walls, etc.,

2. Applicable industries

The floor ground inkjet printing machine is suitable for decoration industry, advertising industry, culture and education industry, government and community publicity, etc.

Technical Data

Product Name	Wall Floor Ground Printer Printing Machine
Model	PE-S10	PE-UV-10
UV Curing Lamp	No	Have
White Ink Painting	No	Have
Other Parameters
Data Transmission Method	Usb2.0/3.0/Bluetooth/Wireless Control (Optional)
Ultrasonic Sensor	Pair
Length * Width * Height (Host)	40cm32cm250cm
The Fastest Painting Speed	64 Square Meters/Hour
Highest Painting Accuracy	9600dpi
Ink Consumption Per Square	6-10ML
Nozzle Model	Epson Print Head (Industrial Grade)
X Axis Folding	Optional
Nozzle Guard	Have
Head Ink Tank	Can Be Split And Transported Separately
Motherboard Configuration	8-Core CPU, 4Gbddr Memory
Painting Direction	Vertical
X Axis Guide	2500mm (Can Be Raised And Lowered)
Y Axis Guide	4500mm (Can Be Switched Arbitrarily And Used Cyclically)
Z Axis Guide	170mm
Display Screen	Comes With 11.6-Inch Touch Panel
X Axis Effective Stroke	2000mm (The Height Can Be Raised And Lowered)
Y Axis Effective Stroke	Unlimited
Z Axis Effective Stroke	150mm
Synchronous Belt	No
Total Body Weight	32kg
Total Track Weight	38kg
Ink Tank Capacity	400Ml
Nozzle Cleaning	One Key Automatic
Wall + Floor Double Color Painting System	Have
Flash Spray Test	Touch
Inkjet Test	Touch
Automatic Nozzle Avoidance	Have
Spirit Level	Have
Print White	Optional
Painted Mode	Two-Way
Gallery Type	Beautifully Printed Gallery Book + Mobile Hard Disk
Picture Processing	AI Intelligent Image Processing
Automatically Block Large Images	Unlimited Height/Width Size Of Painted Pictures
Interrupt Automatic Marking	Have
Auto-Complement	Have
Quiet Zone Calibration	Have
Step Calibration	Have
Nozzle Buffer	Have
Spray Distance	0.5-2.0cm
Ink Supply Method	Negative Pressure Automatic Ink Supply
Color Processing	Automatic Color Matching
Painted Medium	All White Walls
Integrated Voltage Regulator	Have
Laser Positioning	Have
Magnetic Limit	Have
Automatic White Jump	Have
Battery Life	Have
Power-Off Endurance Time	About 12 Hours
Picture On Demand	Have
Machine Trailer	Optional
Certification	Green Environmental Protection Certification, National Standard Testing Qualified (Gb18582-2001, Gbt9756-2001), Ce Certification
Power Supply	Ac110V (90-132V)/Ac220V (180-264V) Ac, 47-63Hz
Power Consumption	No Load 20W, Generally 75W, Up To 250W
Noise	Standby <20dba, Drawing <50dba
Construction Temperature	-10°C-60°C (14°F-140°F) 10%-80% Relative Humidity, Non-Condensing
Storage Temperature	-30°C-60°C (-22°F-140°F) 10%-80% Relative Humidity, Non-Condensing
Language Switch	Chinese And English (Customizable)
The System Platform	Windows XP / Win7 / Win8 / Win10
