3 Nozzles Small Crystal Label Roll to Roll UV Flated Integrated Printing Machine

Model: PE-UV6060


Product Introduction

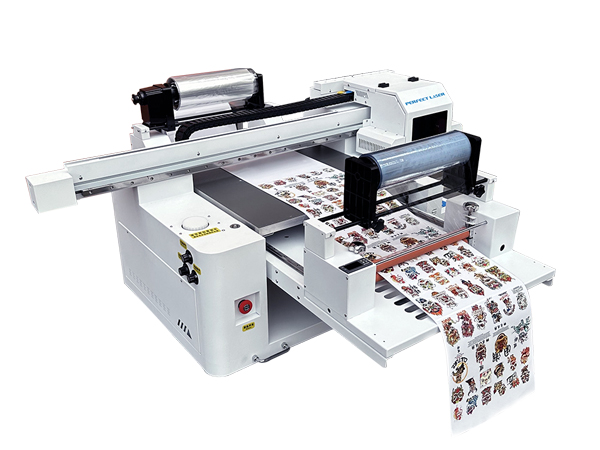

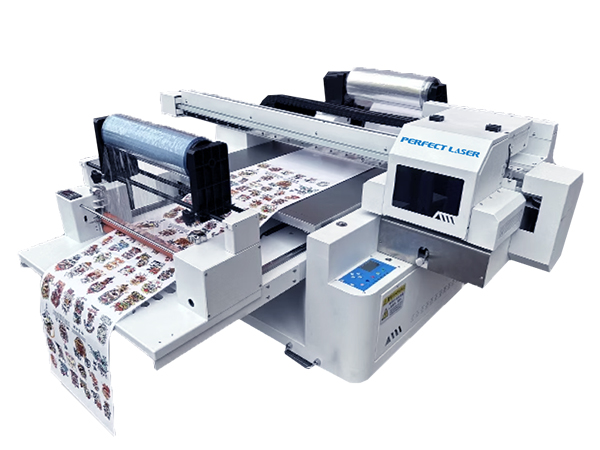

The flatbed and roll-to-roll integrated UV printer machine features three imported high-precision print heads, which can effectively improve the printing quality and speed. It supports white and color varnish, and the image is bright and does not fade. Designed for both flat and roll materials, the UV printer machine offers unlimited printing length, overcoming traditional digital inkjet limitations. With its versatile applications and enhanced production efficiency, it’s the perfect choice for UV inkjet printing professionals.


Product Features


1. The small uv flatbed printer adopts three imported high-precision nozzles, which has higher resolution, and multiple nozzles can work at the same time, which improves efficiency, distributes ink more evenly and improves printing quality.

2. Small uv flatbed printer can produce white color, gloss and oil at the same time, which significantly improves the gloss and brightness of the printed image and makes the image more vivid and lifelike. Glossy oil painting can produce a concave-convex feel effect and increase the artistic sense and texture of printed works.

3. You can print not only planes, but also cylinders and crystal markers. Roll to roll uv printer can automatically print infinitely and film automatically, saving labor cost and higher output.

4. A wide range of materials can be printed, such as ceramic tiles, gift boxes, wooden boards, acrylic, plastics, glass, metals and other materials.

5. Stereo effect, relief effect and gradient color can be achieved, and high resolution and fine printing effect can be achieved, with bright and vivid patterns and high printing quality.

6. Environmental protection and energy saving. Use UV environment-friendly ink, with bright colors and outdoor UV resistance for at least 2 years without fading. Low curing energy, environmental protection and no peculiar smell, which meets the requirements of modern environmental protection.


Application


1. Applicable industries

Roll to roll uv printer is suitable for advertising, decoration, signs, murals, decorative paintings, exhibition board production and other industries.


2. Applicable materials

Roll to roll uv printer is suitable for crystal labels, mobile phone cases, PVC, reliefs, glass, wood, wood boards, plastics, acrylic, leather, tiles, aluminum plates, metal plates and other materials.


Technical Data

Product Name

Three-Head Crystal Label UV Roll-to-Roll & Flatbed Integrated Printer

Model

PE-UV6060

Number of Print Heads

3

Print Platform

Aluminum Adsorption Platform

Net Weight

110kg

Gross Weight

140-170kg (may vary depending on accessories and ink quantity)

Product Dimensions

1600*1569*680mm (L x W x H)

Print Size

60cm Width * Infinite Length

Print Height

0-200mm

Ink Cartridge Quantity

8-Color Ink Cartridge

Ink Handling System

Automatic Ink Circulation with Stirring

Print Head Configuration

Professional High-Precision Imported Print Head

Height Adjustment

Automatic Adjustment / Electric Adjustment

Servo Motor

High-precision servo motor

Curing System

LED UV Lamp for Instant Drying (Dual UV Lamp)

Print Speed

Adjustable High, Medium, Low Speeds (supports bidirectional printing)

Ink Type

UV Ink / Textile Ink / Edible Ink

Print Software

Imported Color Management Software (Ultraprint)

Operating System

WINDOWS System (does not support Apple system)

Power Requirement

AC220/110+10%, 50-60Hz, P100v

File Format

TIFF, JPG, PDF, PNG, JPEG

Print Colors

Cyan (C) + Magenta (M) + Yellow (Y) + Black (K) + White (W) + Light Cyan (LC) + Light Magenta (LM) + Varnish (V)

Cleaning System

Automatic pre/post-print head cleaning with flash spray, idle-time timed flash spray moisturizing system


×
