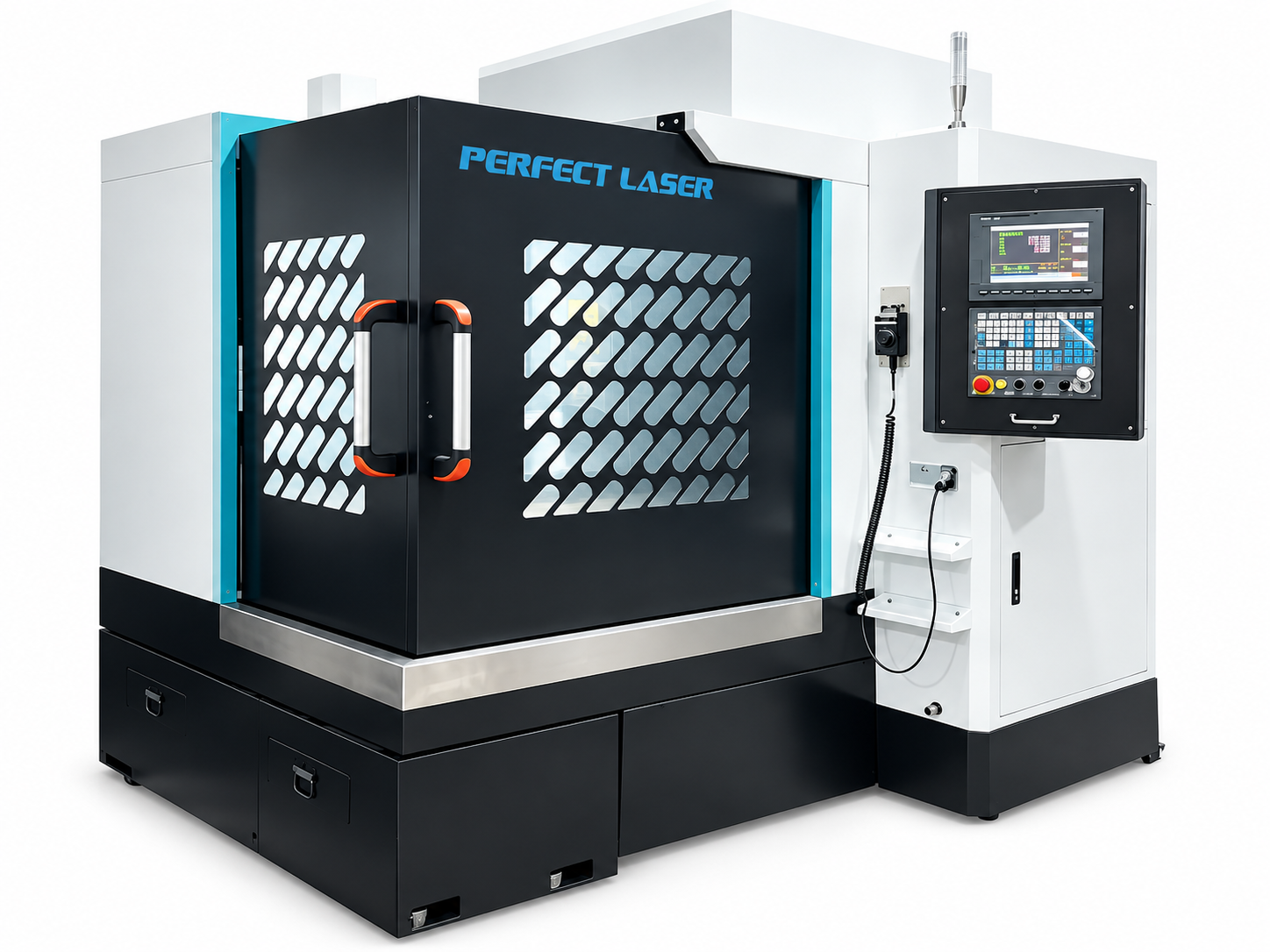

Small CNC Carving Moulding Machine for Metal and Non-metal Engraving-PEM-4040M
Small CNC Carving Moulding Machine for Metal and Non-metal Engraving-PEM-4040M
Small CNC Carving Moulding Machine for Metal and Non-metal Engraving-PEM-4040M
Small CNC Carving Moulding Machine for Metal and Non-metal Engraving

Model: PEM-4040M


Introduction


Perfect Laser new cnc carving moulding machine adopts integrated cast iron bed. It is small but stable in operation, not easy to deform. This cnc moulding machine adopts imported guide rail, ball screw transmission, servo motor and driver and three-axis control system to ensure the accuracy and efficiency of engraving.

The cnc carving machine is suitable for engraving metal materials, such as: aluminum, carbon steel, copper, iron, stainless steel and many other non-metallic materials such as wood, plastic, pvc, jade, etc. It is widely used for mould processing, advertising signs , badges, logo, mould construction, mould products, industrial mould engraving.


Features


1. The integrated cast iron bed can greatly improve the stability of the cnc moulding machine, with good cutting effect, and the body is not easy to deform.

2. The three-axis control system of cnc moulding machine has the characteristics of high reliability, stable performance, multi-functions and exquisite appearance; the keyboard keys are all imported micro switches; the use of efficient interpolation algorithms to ensure the processing quality and efficiency, and the use of hardware time encryption can protect customers rights.

3. It adopts a linear square guide rail, with rolling friction method, the friction coefficient is 1/50 of the ordinary sliding guide, so the rail wears is less and it can ensure working accuracy for a long time.

4. This cnc moulding machine adopts Taiwan TBI ball screw, which is more efficient than sliding screw. The required torque is less than 30%, which can easily transform linear motion into rotary motion.

5. The cnc moulding machine uses servo motor and driving system to ensure accurate positioning and dynamic response of optimal acceleration, which makes the automatic positioning mechanism running smoothly and reliably.

6. This small cnc engraving machine adopts 2.2 KW special water-cooled main shaft, with dust-proof and waterproof design, and the copper spout has better anti-rust effect. Adopts dynamic balancing nut, which has high precision and it’s durable.

7. The small cnc engraving machine supports all drawing software such as Ucancam / Art com / Power mill, etc. This professional engraving software can achieve different cutting accuracy levels by using the compensation function. And it can also optimize the completed graphic design immediately to increase productivity.


Application


Applicable material:

This cnc carving machine is suitable for metal materials, such as: aluminum, carbon steel, copper, iron, stainless steel and many other non-metallic materials, such as: wood, plastic, pvc, jade, etc.

Applicable industry:

This cnc moulding machine is good at processing all kinds of small work-piece. It is widely used in mould field, advertising signs, badges, logo, mould construction equipment, industrial mould, etc.


Technical Parameters

Product Name

CNC Caving Moulding Machine

Processing size

400×400×150mm

Machine Structure

Integrated cast iron bed (fully enclosed)

Main Spindle

2.2KW water-cooled spindle

Transfer Method

Square guide rail, screw rod transmission

Guide Rail

X, Y, Z all imported square guide rails

Control System

Three-axis control system

Control Box

Computer cabinet

Motor

Hybrid servo motor

Driver

Hybrid servo driver

Moving Method

Movable Cast iron table

Cooling System

Complete cooling system

Coolant: pure water

(deionized water or distilled water)

Oil Injection System

Automatic oil filling system

Environment Temperature

15-30℃

Environment Humidity

40%-80%no condensation

Power Supply

380V;50Hz / 100A

Power Grid Fluctuations

≤5%

Power Ground Resistance

≤4Ω

Foundation Requirements

Amplitude<50um

Vibration Acceleration <0.05g

Air pressure

86-106kpa

Machine Accessories

Optional Manual

1set

Knife Tool

1set

Data Cable

1set

Wrench

1set

Control Card

1set

Training CD

1pcs

Pressure Plate

1set

Water Pump

1pcs




×
