SS Aluminum Channel Letter Laser Welder-PE-W300 450 600
SS Aluminum Channel Letter Laser Welder-PE-W300 450 600
SS Aluminum Channel Letter Laser Welder-PE-W300 450 600
SS Aluminum Channel Letter Laser Welder-PE-W300 450 600

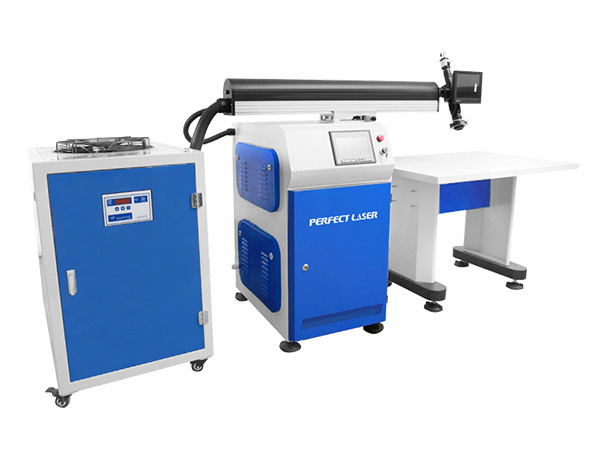

SS Aluminum Channel Letter Laser Welder

Model: PE-W300 450 600


Features
1.Laser head can electrically move back and forth, up and down, left and right and rotate 360 degree.
2. Heat affected zone of the stainless steel laser welding machine is small. The aluminum and stainless steel laser welding machine's work piece surface will not deformed.
3. For letters in the advertising industry, there is specially lengthened optical path and the telescopic scope can be added to 800mm.
4. There is no raised spot after welding. The aluminum and stainless steel laser welding machine doesn't need polishing process. Saving time and labor. The appearance is beautiful and tight.
5. The aluminum and stainless steel laser welding machine has optional CCD monitor. The welding effect is more clear and intuitive.
6. The specially designed aluminum and stainless steel letter laser welding machine's long focal distance lens F=200 mm to meet the demand for ultra-high font welding.
Application

The aluminum and stainless steel laser welding machine is used for making a variety of aluminum and stainless steel letter welding, LED luminous characters, AD Logos, aluminum signs and other fast welding.

The aluminum and stainless steel laser welding machine weld 0.1-2mm stainless steel, galvanized plate and bronzing plate; 2mm copper and aluminum alloy (use 500w laser welder).

The aluminum and stainless steel laser welding machine can be called channel lettter laser welder, aluminum and stainless steel letter laser welding machine,stainless steel tape welding machine,stainless steel strip laser welder.

Technical Data

Advertising Letter Laser Welding Machine

Model

PE-W300

PE-W450

Max laser power

300W

450W

Laser wave-length

1064nm

Single power energy

90J

90J

Welding Depth for Carbon Steel/ Stainless Steel / Galvanized Steel / Golden-Plate Steel

0.5-2mm

2mm

Welding Depth for Brass, Aluminum Alloy

0.1-1mm

2mm

Pulse width

0.3-20ms

Welding frequency

0.5-40HZ

Adjustable facular size

0.2-2mm

Power consumed

≤9KW

Laser Cavity

UK imported “Morgen” Brand

Laser Lamp

Single lamp

Double lamp

Electrical source

220V /1phase /50Hz/ 40A

380V /3phase /60Hz/ 40A

Standard worktable

800*1000mm

Positioning

CCD Screen + Red Dot Pointer

2-linertary

200mm

Mobile level

200mm
