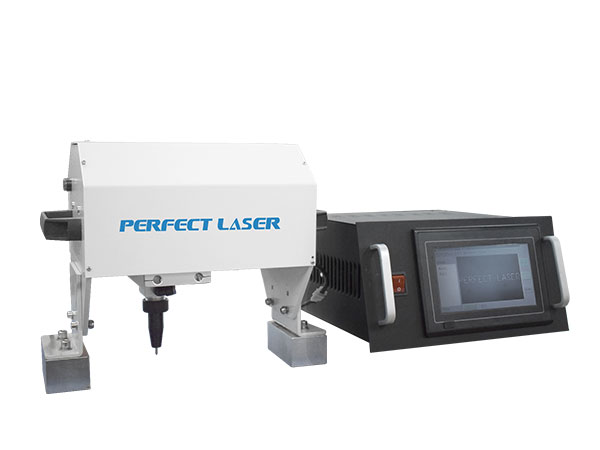

PEQD-030E LCD Control Protable Dot Peen Marking Machine

Style NO. :

Introduction

Perfect Laser is world leading manufacturers for dot peen markers.

Our hand-held dot peen markers works by the vibration caused by the compressed air and the mechanical device. This dot peen markers can mark logos, tags, characters, letters, VIN code, serial numbers, date and graph on work piece (metal / no-metal materials) permanently.

The portable dot markers is LCD control type, and doesn't need work with computer. This kind of dot peen markers is convenient to carry so the dot peen markers could be used on heavy work pieces that are hard to move.

Features

1. PEQD-030E type takes complete LCD control screen, integrates PC, display, and control system into one unit, no need to work with computer, with smaller size which can save space, easier to operate and high efficiency.

2. The portable marking head of the dot peen markers is Perfect Laser’s original design, only with 2 Kg, portable and smart, very easy to carry.

3. The marking pin head adopt imported hard alloy, and is made up by precision mould and molding for once. The rigidity of marking needle can reach-HRC92. Its’ excellent processing ability during work ensures the accuracy of high-speed marking and can make perfect marks on the work-pieces.

4. Adopts American MAC “High-Frequency Valve”. The vibration lifespan can reach 0.1-0.2 billion times, so as to ensure the long and stable operation of the machine.

5. Adopt Japan OMRON “positioning switch”, which can guarantee high accuracy& steadily performance.

6. Using Germany made “linear-moving guide rail”, which can do auto lubricating & air-proof as well as dust-proof. Therefore, it guarantees the equipment with long-time stable performance & high accuracy.

7. Adopt “marking steel-sheath system”, which own-exploited by Perfect Laser, can solve the problem of big-noise that frequently that offen occurred during marking. What’s more, with the advantages of little abrasion rate & only require about 0.2Mpa air pressure, so our machines are economical to avoid unnecessary wasting in energy & cost.

8. The lifetime of the dot peen markers could exceed 10 years. The average MTTF could exceed 15000 hours. This machine is free of maintenance and low running cost.

9. Support logos and graphs designed in DXF format from AutoCAD, CorelDraw.

10. This dot peen marking machine can support multi-kinds font: MG Font, SHX Font in Auto CAD, CHR in Borland, TTF in Windows.

Application
The dot peen marking machine is applicable for the fields of automobile, motorcycle, mechanism, aeronautical and space, electric apparatus and suitable for all kinds of metal and hard plastic marking on steel, such as stainless steel marking, mild steel plate marking, iron marking, aluminum marking, copper marking, brass marking, anodized and coated materials marking, hard plastic material marking, etc. It is portable and easily carried to mark on heavy and large mental body.
It's also called handheld dot peen marker,dot peen markers,copper mark machine,copper marker.
Technology Data

Item

LCD control handheld dot peen markers

Model

PEQD-030E

Standard Marking Area:

125×16mm

135×16mm

150×100mm

Customized

Marking Depth

0.01~0.2mm

Marking Speed

≤50mm/s (for Characters Height of 3mm / 3-4 Numbers/Second)

Marking Accuracy

0.01 mm

Air Pressure

0.2-0.6Mpa

Pin Hardness

HRC 92

Power Supply

220V±10%,50HZ

Air Pressure

0.2-0.6 Mpa

Machine Power

≤400 W

Working Environment

-5~40 ℃

Marking Head Weight

2 Kgs (Portable)

Whole Machine Weight

15 Kgs
