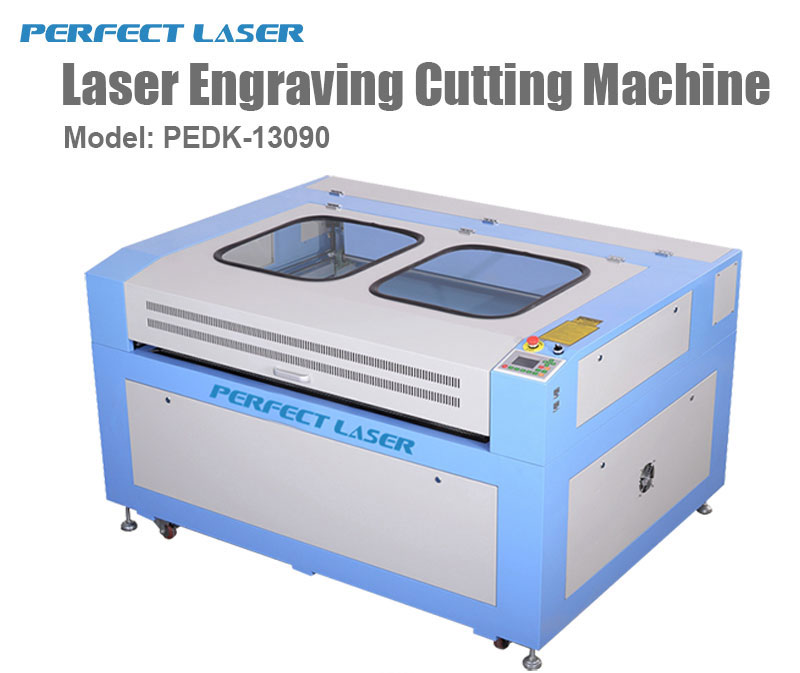

PEDK-13090 80w 100w 130w 150w Co2 Laser Cutters

Style NO. :

Introduction

Perfect Laser is a world leading manufacturers of Co2 laser cutters.

PEDK-13090 laser engraving machine is the most hot-selling model accepted by our customers. Co2 laser cutters has large 1300mm by 900mm working area, compact nesting, convenient storage materials.

The knife-shape aluminum heavy strip work of the platform can avoid defective products caused by reflection of backstop while cutting acrylic & wood materials.

If change into honeycomb working table, Co2 laser cutters can used to engrave and cut cloth, fabric, carpet, shoes, etc.

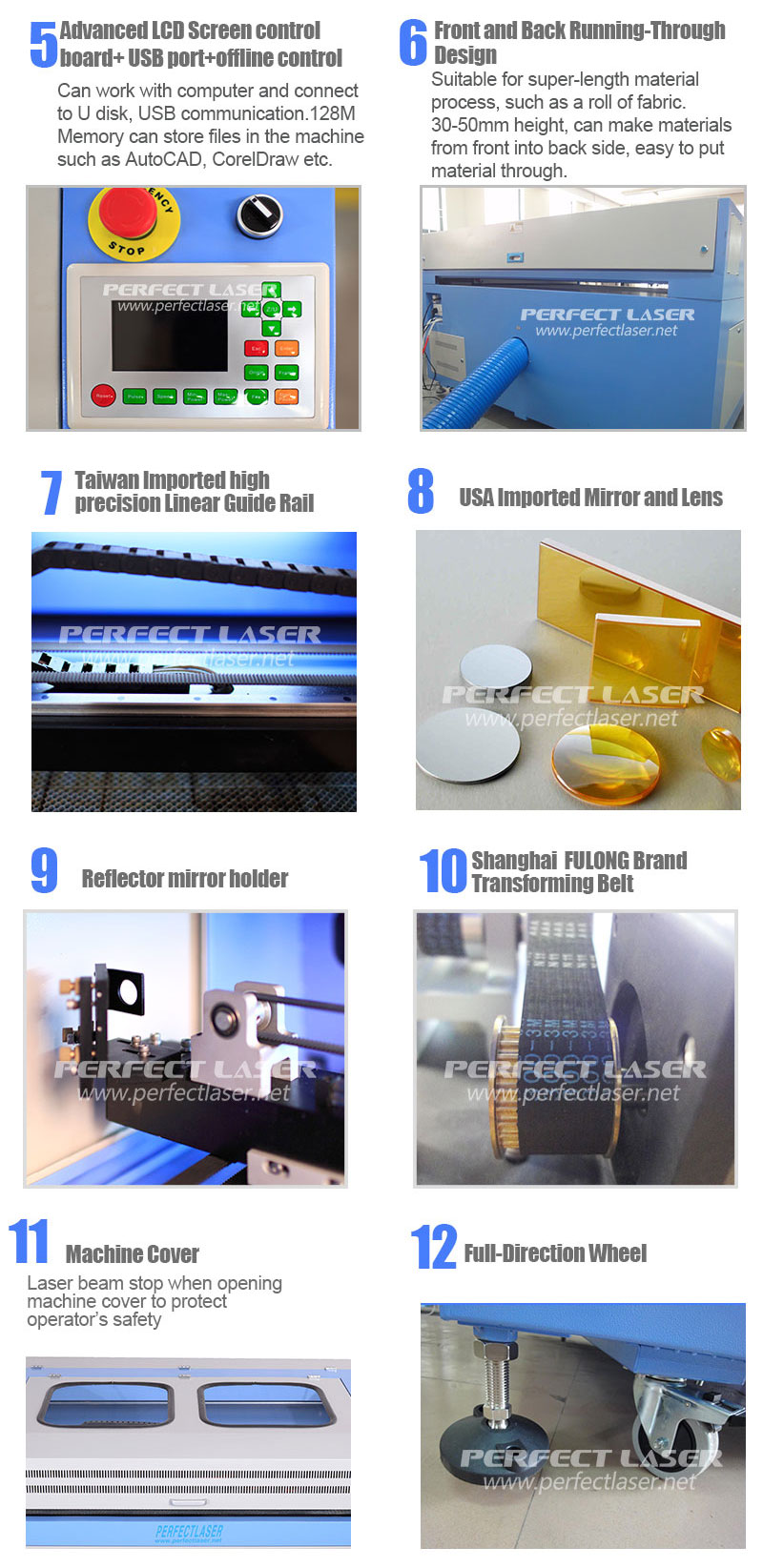

Features

1. Advanced LCD Screen+ USB port+ DSP Offline Control

Our Co2 laser cutters can not only work without computer, but also connect to U disk, USB communication.

2. Taiwan Imported high precision Linear Guide Rail
With high speed and accuracy
Co2 laser cutters is helpful for laser head to move smoothly and helpful for laser beam to reflect with high accuracy
3. Taiwan Made Ball Screw Rod

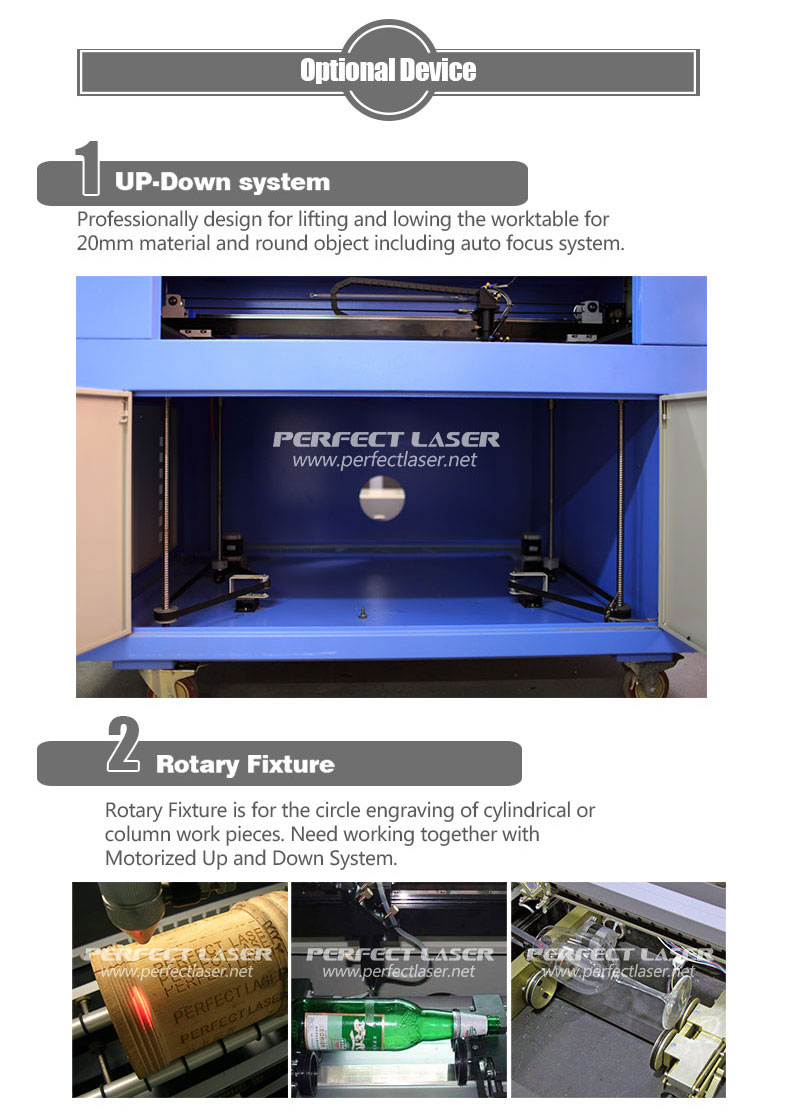

The motorized up and down table adopt Taiwan “Double-win” brand high precision ball screw rod and high accuracy linear running guide rail, can improve the precision and accuracy of the machine.

4. LCD Off-Line Control System owns 128M Big Memory, can store files in the machine for engraving and cutting, compatible with AutoCAD, CorelDraw, Photoshop and some other kinds of graph disposal software.

5. Special Front and back running-through design 30-50mm height, Co2 laser cutters can make a unique door for the limitless engraved materials come through from front into back side, easy to put material through.

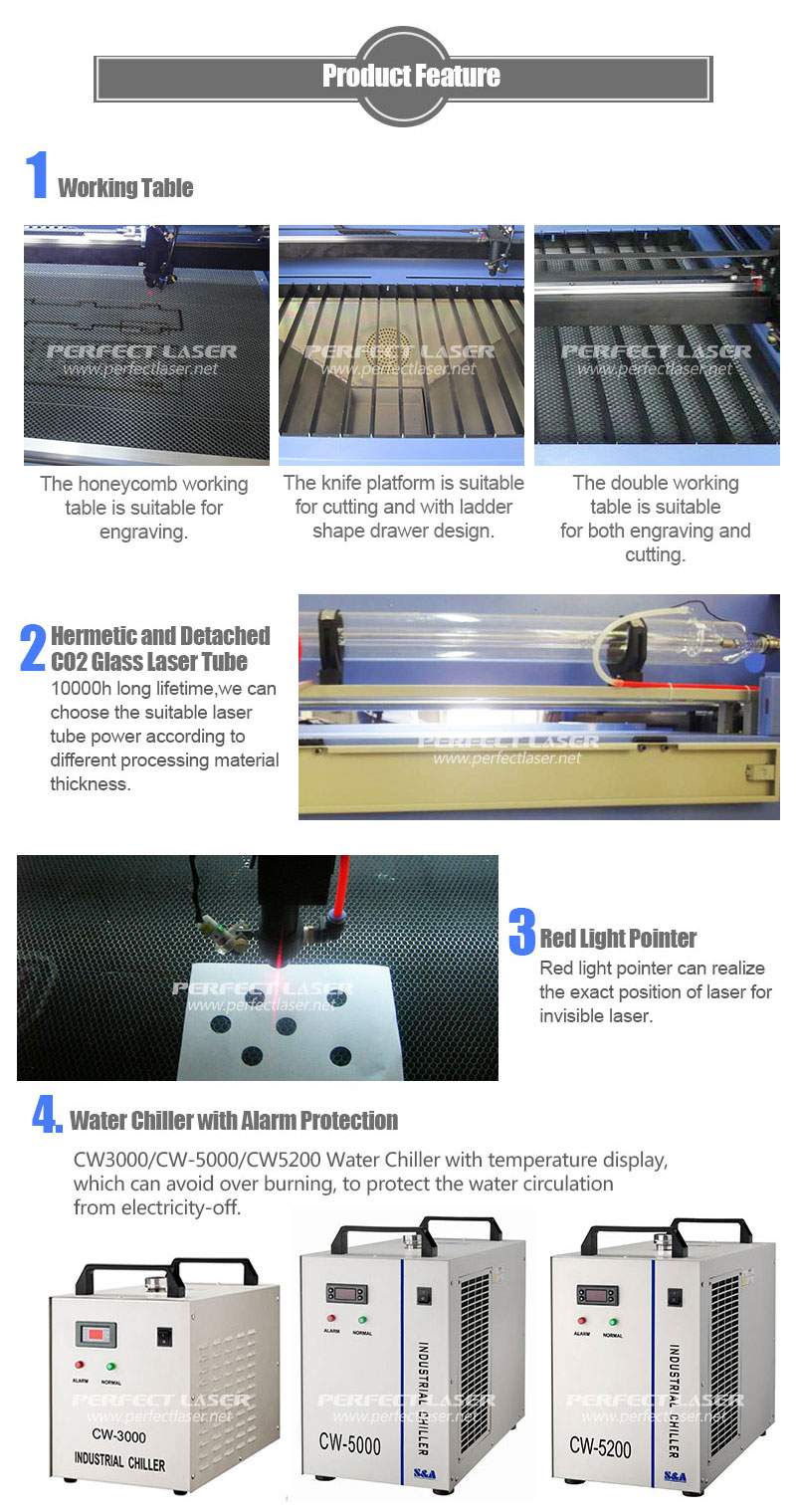

6. Professional Working Table
Honeycomb or Strip work table for you to choose, use imported stable aluminum material, can meet the needs of diversified laser procession.
7. Ladder-Shape Drawer Design: Easily Collect and Getting The Cutting Object.

8. Laser Beam Stop when Opening Machine Cover

We design a special function to stop the laser beam come out when operator open the machine’s cover. So that ensure operator won’t be hurt by laser beam, safe for operator. Other company don’t have such design, so it will hurt operator sometime when using it.

9. Red Light Pointer Function

As laser light is invisible, and the red light pointer can realize the exact position of laser beam.

10. We Do Strict Testing for Each Laser Tube

We will test every laser tube before using them, in order to make sure the performance of laser tube and it has nice laser facular.

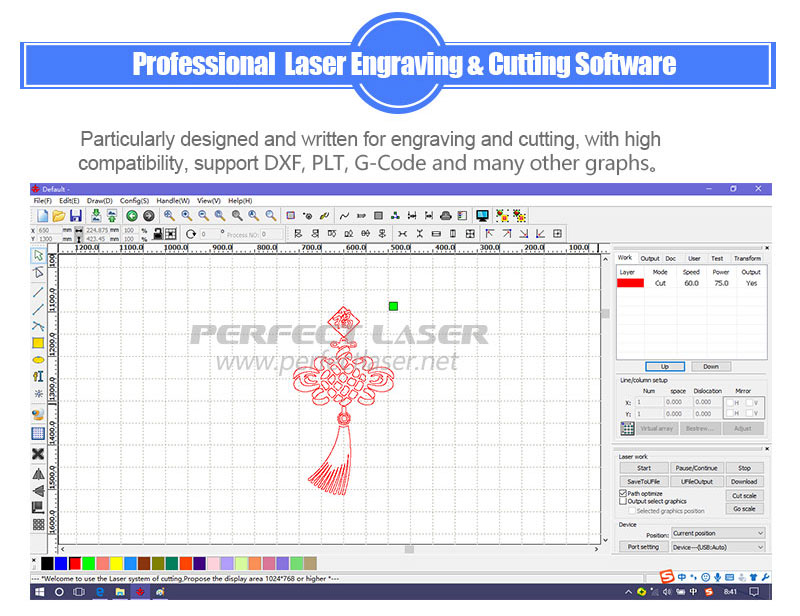

11. Professional Laser Engraving & Cutting Software

Particularly designed and written for engraving and cutting, with high compatibility, support any computer operating system.
12. Adopt CW-3000 Water Cooling System with Alarm Protection, temperature display, which can avoid over burning, to protect the water circulation from electricity-off.

13. The automatic rolling and feeding system is an optional item for you, it can realize the long work piece automatically completely, such as one roller of cloth/fabric/leather/garment.

14. Co2 laser cutters can be also called co2 laser cutters, 80w laser cutter,pvc laser cutter,100w laser cutter,130w laser cutter,150w laser cutter,plexiglass laser cutter.

Application
1. Available materials: acrylic, organic glass, wood, MDF, textile, fabric, cloth, leather, paper, EVA materials, PVC plastic, crystal, bamboo, plexiglass, seal, rubber plate, marble, granite, Gum, Ceramics, etc. nonmetal materials.

2. Application Industry: advertisement, arts and crafts, toys, car, mechanism, electron, as well as in trademarks, embroidery, clothing and other industries.

3. Material List for Cutting & Engraving

Material

Engraving

Cutting

Acrylic



MDF



Wood



PVC



Double Color Board



Rubber



Leather, Fabric



Cloth



Paper



Stone


×

Marble


×

Granite


×

Stainless steel

×

×

Carbon steel

×

×

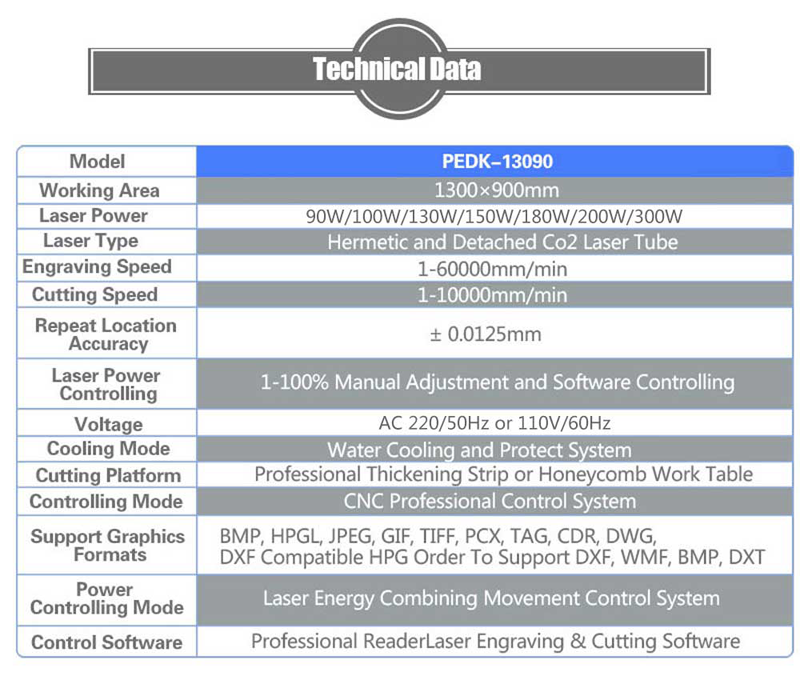

Technical Data
Working Area
1300x900mm (4 feet*3 feet)
Laser Power
60w / 80w / 100w / 130w / 150w
Laser Type
Hermetic and Detached Co2 Laser Tube
Engraving Speed
0-60000mm/s
Cutting Speed
0-10000mm/s
Cutting Thickness
0-25mm acrylic (Others Determined by Materials)
Repeat Location Accuracy
+/-0.0125mm
Driving Mode
DC0.8A 24V Stepper Motor
Position System
Red dot Laser Pointer
Interface
USB port transfer
Voltage
AC220v/50hz or 110v/60hz
Machine Power
900w
Controlling System
CNC Professional Control System
Support Graphics Mode
BMP,HPGL,JPEG,GIF,TIFF,PCX,TAG,DST, PLT,DXF etc.
Cooling Mode
CW-3000 Water Cooling (with Protection Function)
Auxiliary Devices
Exhaust Fan and Exhaust Pipe
Cutting Platform
Professional Thickening Strip or Honeycomb Work Table
Power Control Mode
Laser Energy Combining Movement Control System
Software
Professional Reader Laser Cutting Software
Operating Temperature
0-45C
Operating Humidity
5-95%
Packing
Wooden Box
Guarantee Time
12 Months for Machine, 3-10 Months for Laser Tube
Operation
VCD Training, Engineer Overseas Available
Machine Size
1970mm*1480mm*1250mm
