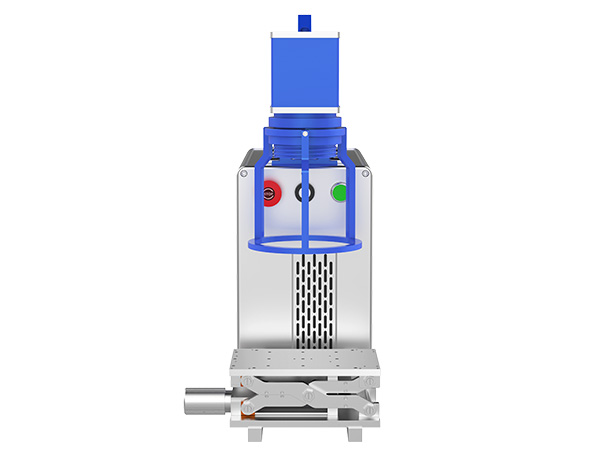

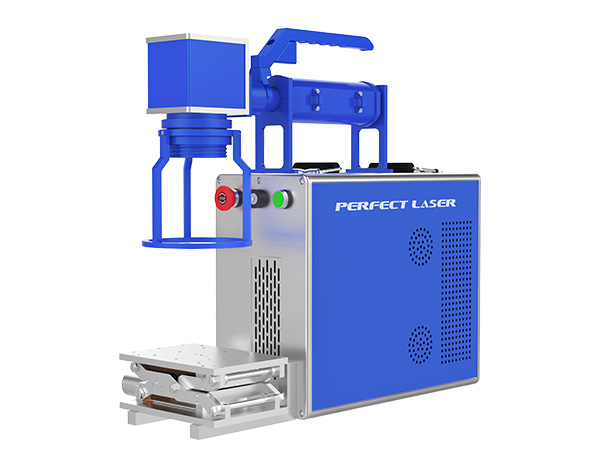

PEDB-400H Handheld Fiber Laser Marking Machine for Plastic and Metal

Style NO. :

Product description

Perfect Laser is the world famous fiber laser marking machine manufacturers and suppliers, recently launched a new laser marking machine: Handheld Fiber Laser Marking Machine, model PEDB-400H.

This type of laser marking machine can remove the original fixed bracket and make handheld marking, the laser marker desktop and handheld design can meet a variety of production needs, the laser marker is compact and portable, small footprint, marking speed is twice as the same type of laser. Adopting imported laser, the core components of the life length up to 100,000 hours or more, no need of consuming materials.

Features

1.Compact and portable:this laser marker with small size, light weight, laser marking machine is easy to carry, galvanometer can be rotated 90 degrees according to the requirements, this laser marker is suitable for side marking and pipeline work.

2. Desktop and handheld design: this laser marking machine with removable fixed bracket, to meet a variety of marking needs.

3.Fixed automatic focusing bracket: the laser marking machine adopts fixed automatic focusing bracket, and the laser marker is flexible and convenient to use.

4.Laser beam stabilization: laser stability, small loss, free from the outside dust and mechanical impact, laser marker beam stability.

5.The laser marker is maintenance-free, no supplies, and no need to adjust or clean the lens.

6.The laser marker processing speed is 2-3 times of the traditional laser marking machine.

7.The spot quality of laser marker is excellent and the peak power is high, and the best marking effect can be achieved in the same material.

8.Using automatic lift platform, integrated air-cooled system, integrated design, the appearance of laser marker is simple and beautiful.

Application

Electronic components, instrumentation, hardware tools, auto parts, daily necessities, jewelry, food and beverage packaging, precision instruments, gifts jewelry, medical equipment and other high-end products, high precision marking printing. Typical applications, such as plastic (PA66) insulation laser marking, metal plate automatic loading and unloading laser marking, packaging box online laser marking, metal mark.

Technical Date

Laser Marker Model

PEDB-400H

Type

Handheld

PC

Without PC

Laser Source

IPG Series

Pulse, high energy ytterbium doped fiber laser

Operating Mode

Pulse

Polarization

Random

Average output power

10W - 50W

Central emission wavelength

1060-1070 nm, Q switch operation Output power adjustment range is 10% -100%

Transmit bandwidth(FWHM)

<10nm

Long-term average power instability

<5%

Pulse width (FWHM)

100ns

Laser connection time

180 microseconds

Laser disconnect time

180 microseconds

Pulse repetition rate (kHz)

20-80kHz

Per pulse energy (PRR = 20 kHz)

0.95 MJ

Beam quality

<1.8

Output fiber transmission length

3m

working voltage

220V

Maximum power consumption

600W

Net size

70*20*50cm

Laser System

Scanning speed

0-7000mm/s

Marking speed

0-8000mm/s

Marking size

110mm×110mm (F-theta 160)

Spot size

≤ 40 micron (F-theta 160)

Cooling system

Air cooling

Pilot laser

650 nm laser diode, red light marking guide

Continuous working time

≥16h

Humidity

45 to 85% (without condensation)

Working temperature

0~40℃

Control system

Laser marking (Chinese version)
