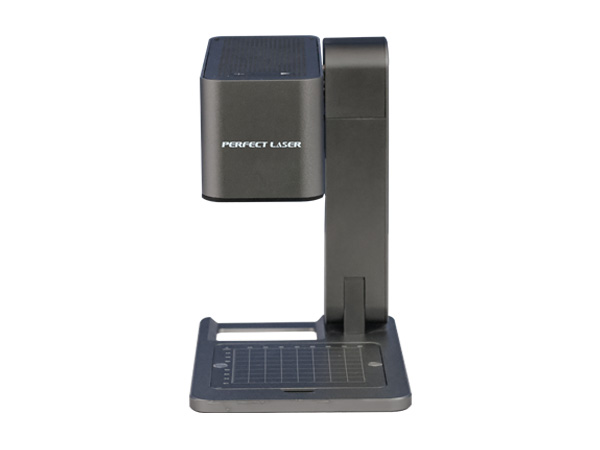

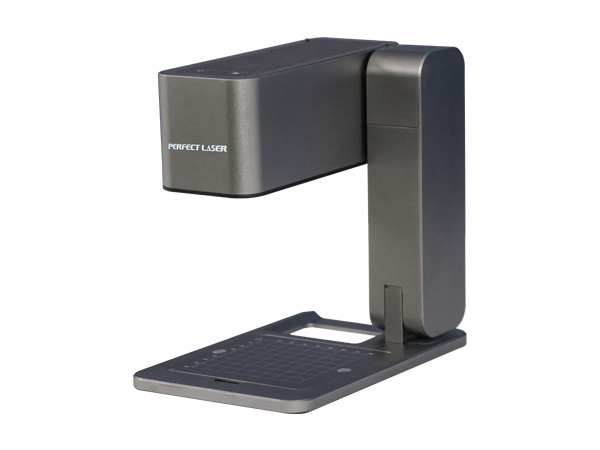

The PEDB-20 intelligent small laser marking machine has 5 core components such as fiber laser, 32-bit high speed MCU processor, stepper motor, motor driver and motherboard, the small laser marking machine realizes the cutting and horizontal, vertical, tilt and other angles of engraving needs. It is a small size, light weight, high speed, high flexibility, cost-effective intelligent small laser marking machine.
1. The portable laser marking machine is made of high-strength aluminum body, beautiful appearance, small size,weight less than 1.9kg, can be folded into the bag, easy to carry out in outside.
2. Motor control bracket lifting, one key automatic focus, easy to operate, high reliability, long service life.
3. R4 rotary shaft design, can be inclined to any Angle, with roller, can be cylindrical, curved surface and other large and small objects engraving.
4.The portable laser marking machine bottom plate adopts hollow design, engraving space is not restricted, help sculpt large objects.
5. The portable laser marking machine built-in gyroscope, with tipping protection function.
6. Integrated galvanometer design, matching field mirror reach at more than 600mm/s, sensitive response, good compatibility, marking more stable and higher sensitivity.
7. The intelligent portable laser marking machine uses the mainstream operating system, support Win, Mac, IOS and Android software operation.
8. Can carve and cut, can cut thickness of less than 2mm wood, paper, leather, etc.
1. The intelligent mini laser engraver can carve materials are: Board, wood, cloth, leather, stone, ceramic (need to be black), bamboo, plastic, food, glass (needs to be black), acrylic (White needs to be black), lacquer and other non-metallic materials..
The intelligent mini laser engraver can cut materials are: cardboard, wood, leather, bamboo etc.
2. Applicable industries
The mini laser engraver is widely used in construction, advertising, home, clothing, handicraft processing and home handmade, etc.
5W Intelligent Mini Fold-able Desktop Automatic Laser Engraving Cutting Machine PEDB-20
Laser spot compression
One-button autofocus/manual focus
Laser spot size
Laser module life
About 10000h at 27℃ ring temperature
XJ custom motherboard, FR4 double sided glass fiber
USB to serial cable transmission, Bluetooth 5.0 wireless transmission
XJ software platform (computer application + mobile App)
1. XJ format：XJ
2. Picture format：JPEG/BMP/PNG/JPG/GIF
3. Vector format：DXF/PLT/HPGL
Software platform(Windows OS、Mac OS、Android、IOS)
Stepper motor drive chip
32-bit high-speed MCU
Engraving size (mm)
Electric power of complete machine
Heat dissipation mode
Safety protection function
