Animal Ear Neck Tags Fiber Laser Marking Machine for Identification

Model: PEDB-400B/PEDB-400D


Introduction

Nowadays, animal identification systems are being implemented around the world to ensure food safety. By putting ear tag or neck tag for identification on animals such as cows, sheep and pigs, it can be effectively tracked in the event of a security incident and resolved in a timely manner.

On the other hand, as pets enter people's lives more and more, customizing their own pet tags with important information, such as pet names and master call markings on it, not only can show personality, but also can increase the return rate of lost pets.

Animal tags fiber laser marking machine is the first choice because of its high efficiency, low cost, beautiful effect and lasting time.

Features

1. Beautiful Marking Results

This animal tags fiber laser marking machine can meet user requirements for the various elaborate patterns on a tiny surface, and the pattern will never fade.

2. No power coupling loss, saves operating costs, the laser device has 100,000 hours life time, maintenance-free with no consumables.

3. High Speed High Efficiency

This neck tags laser marking machine significantly improves the marking quantity, and at the same time, accelerates user's return of the investment.

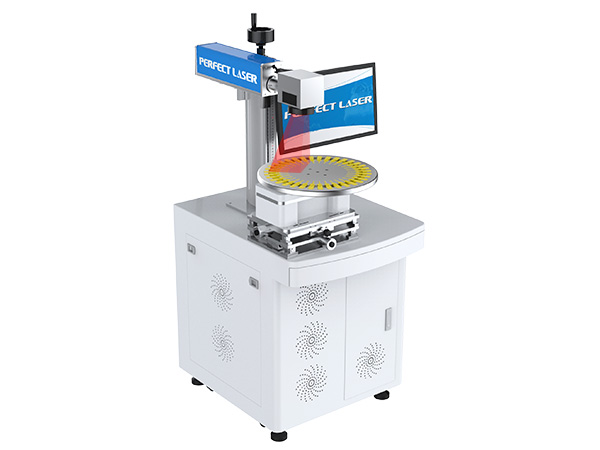

4. 4 station or 8 station turn-able working table available for mass production.

Application

1.Applicable materials:

This animal tags laser marking machine is widely used for various metals, such as: gold, silver, aluminum, brass, titanium steel, tungsten steel, stainless steel and some non-metallic materials such as: colorful acrylic, TPU, and plastic.

2.Applicable industry:

This ear tags fiber laser marking machine is widely used in farms, pastures, zoos, pet hospitals, pet supplies stores, creative gift shops, retail and other industries.

Technical Parameters

Model No.

PEDB-400A

PEDB-400B

PEDB-400C

PEDB-400D

Type

Portable

Desktop

Colorful

Standby

Computer

Not includes PC

Includes PC

Laser Source

IPG Series

Pulsed, High Energy Ytterbium Fiber Lasers

Mode of operation

Pulsed

Polarization

random

Nominal average output power

20W / 30W / 50W

Central emission wavelength

1060-1070 nm ,Q-switched operation Output power adjustment range 10%-100%

Emission Bandwidth

(FWHM)

<10 nm

Long-term average power instability

<5%

Pulse width, (FWHM)

100 ns

Laser switching ON time

180 μsec

Laser switching OFF time

180 μsec

Pulse Repetition Rate* kHz

20-80 kHz

Energy per pulse (PRR = 20 kHz)

0.95 mJ

Typical beam quality, M2

<1.8

Output fiber delivery length

3m

Operating voltage

220V

Max. Power consumption

600W

Package Dimensions

82x38x83cm

90x42x83cm

90x41x83cm

90*89*152cm

Net Weight

44 kgs

53 kgs

44 kgs

130 kgs

Gross Weight

60 kgs

64 kgs

60 kgs

175 kgs

Laser system

Scanning Speed

0-7000mm/s

Marking Speed

0-5000mm/s

Marking size

110mm×110mm (F-theta 160)

Spot size

≤ 40 micron (F-theta 160)

Cooling unit

Air cooled

Pilot laser

650nm diode laser, visible red light for marking guide

Continuous working time

≥16h

Humidity

4585% (no condensation)

Operating temperature

0~40℃

Control units

Laser Mark (English Version)
