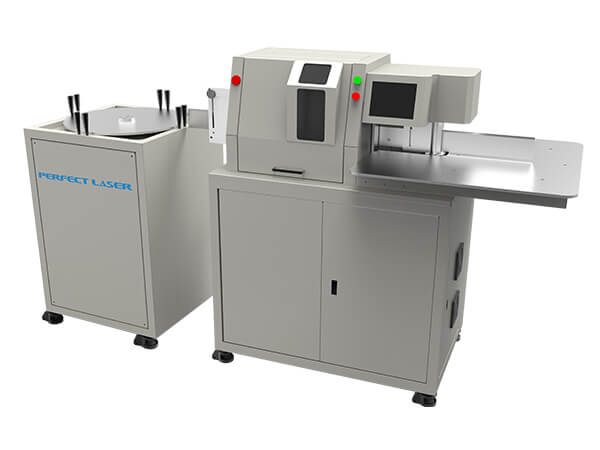

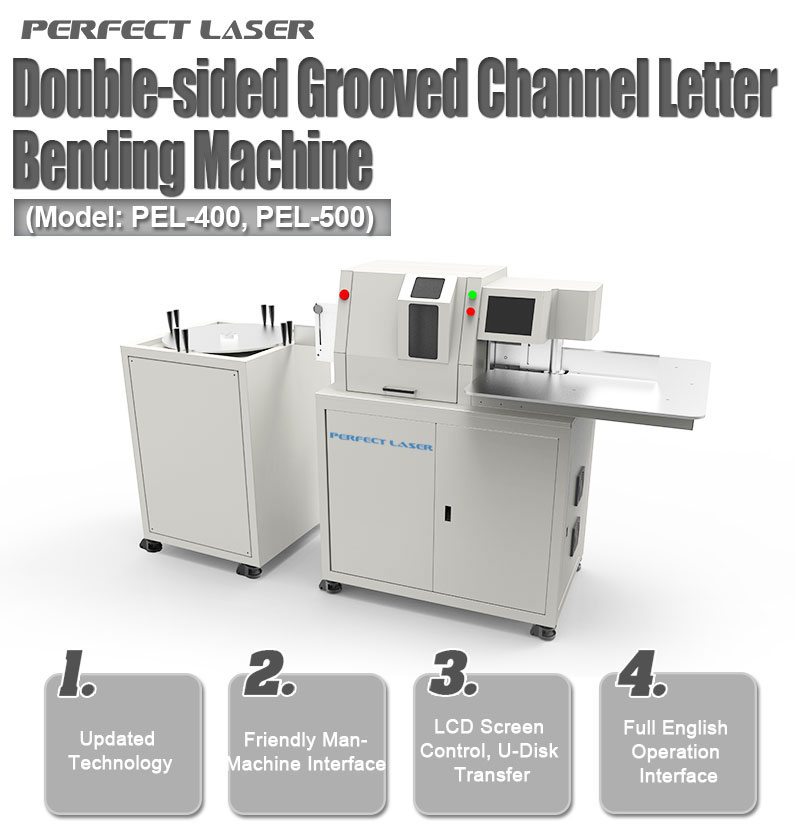

PEL-400/500 Channel Letter Bender with LCD Screen Control

Style NO. :

Brief Introduction


Perfect Laser is a professional metal processing equipment manufacturer integrating product development, production and sales. The company has passed the national ISO9001-2000 quality management system certification, and has a good image and brand reputation. PEL-500 LCD automatic letter bending machine is controlled by a touch-screen LCD screen, which is easy to operate. The LCD automatic double-side aluminium profile bending machine has high bending accuracy and high speed and is the first choice for advertising applications.

This kind of letter bending machine is also called letter bending machine,aluminium profile bending machine,led light making machine price,cnc bending machine,profile bending machine,stainless steel bending,channel letter machine.

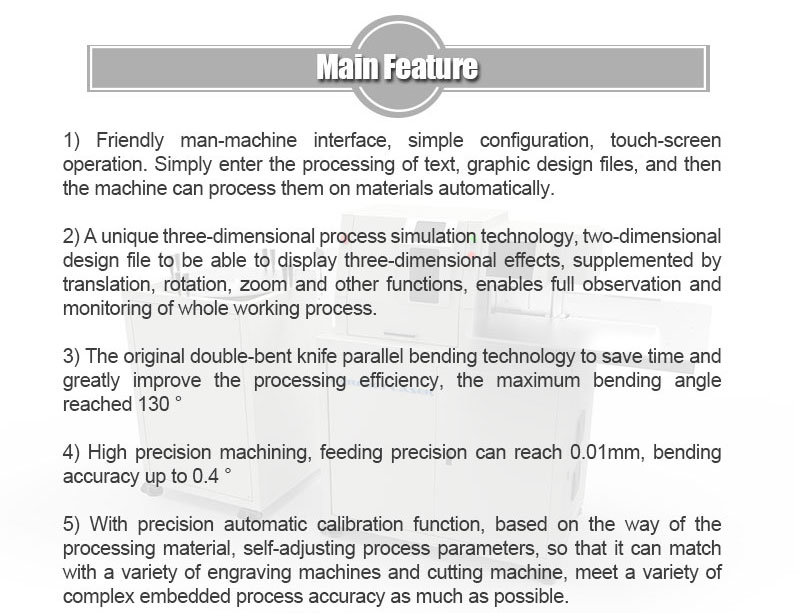

Features

1) Convenient operation interface: Simple configuration, LCD touch screen operation, the channel letter machine can automatic folding after inputting text and graphics;

2) Automatic calibration function: the aluminium profile bending machine can adjust the processing parameters according to different materials;

3) The display effect is good: The LCD automatic double-side slotting and bending machine has unique 3D process simulation technology, 2D design files, and 3D display effect, which is convenient for comprehensive observation and monitoring of the entire work flow;

4) High-precision machining: Feeding accuracy can reach 0.01mm, bending accuracy can reach 0.4°, working accuracy can reach 0.05;

5) High-efficiency processing: The double machete of the LCD automatic double-side channel letter machine can be folded in parallel to increase the processing speed, and the processing time is less. The maximum bending angle of the channel letter machine is up to 130°.

Application


1. Applicable materials: the letter bending machine is often applied in stainless steel, aluminum strip, galvanized steel, iron.

2. Applicable industries: the letter bending machine is suitable applied in advertising industry, such as outdoor advertisinglogos, billboards, neon signs, light box production, signs, and other advertising production.

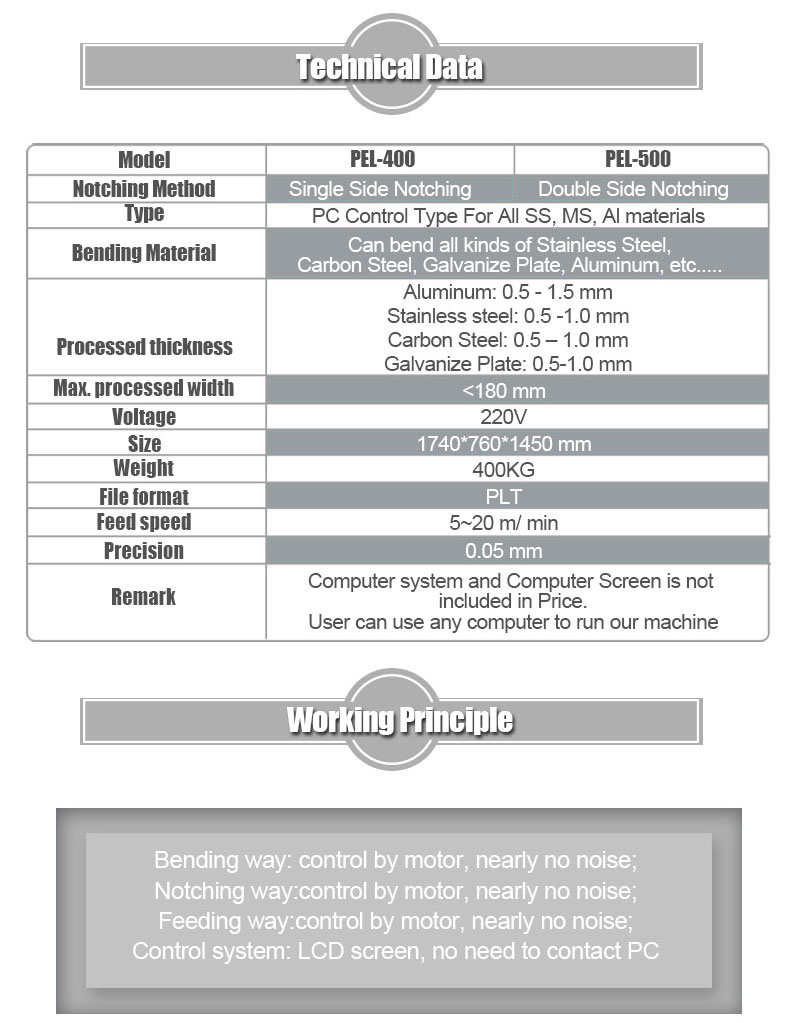

Technical Data

Model

PEL-400

PEL-500

Notching Method

Single Side Notching

Double Side Notching

Type

PC Control Type For All SS, MS, Al materials

Bending Material

Can bend all kinds of Stainless Steel,

Carbon Steel, Galvanize Plate, Aluminum, etc.....

Processed thickness

Aluminum: 0.5 - 1.5 mm

Stainless steel: 0.5 -1.0 mm

Carbon Steel: 0.5 – 1.0 mm

Galvanize Plate: 0.5-1.0 mm

Max. processed width

<180 mm

Voltage

220V

Size

1740*760*1450 mm

Weight

400KG

File format

PLT

Feed speed

5~20 m/ min

Precision

0.05 mm

Remark

Computer system and Computer Screen is not included in Price.

User can use any computer to run our machine
