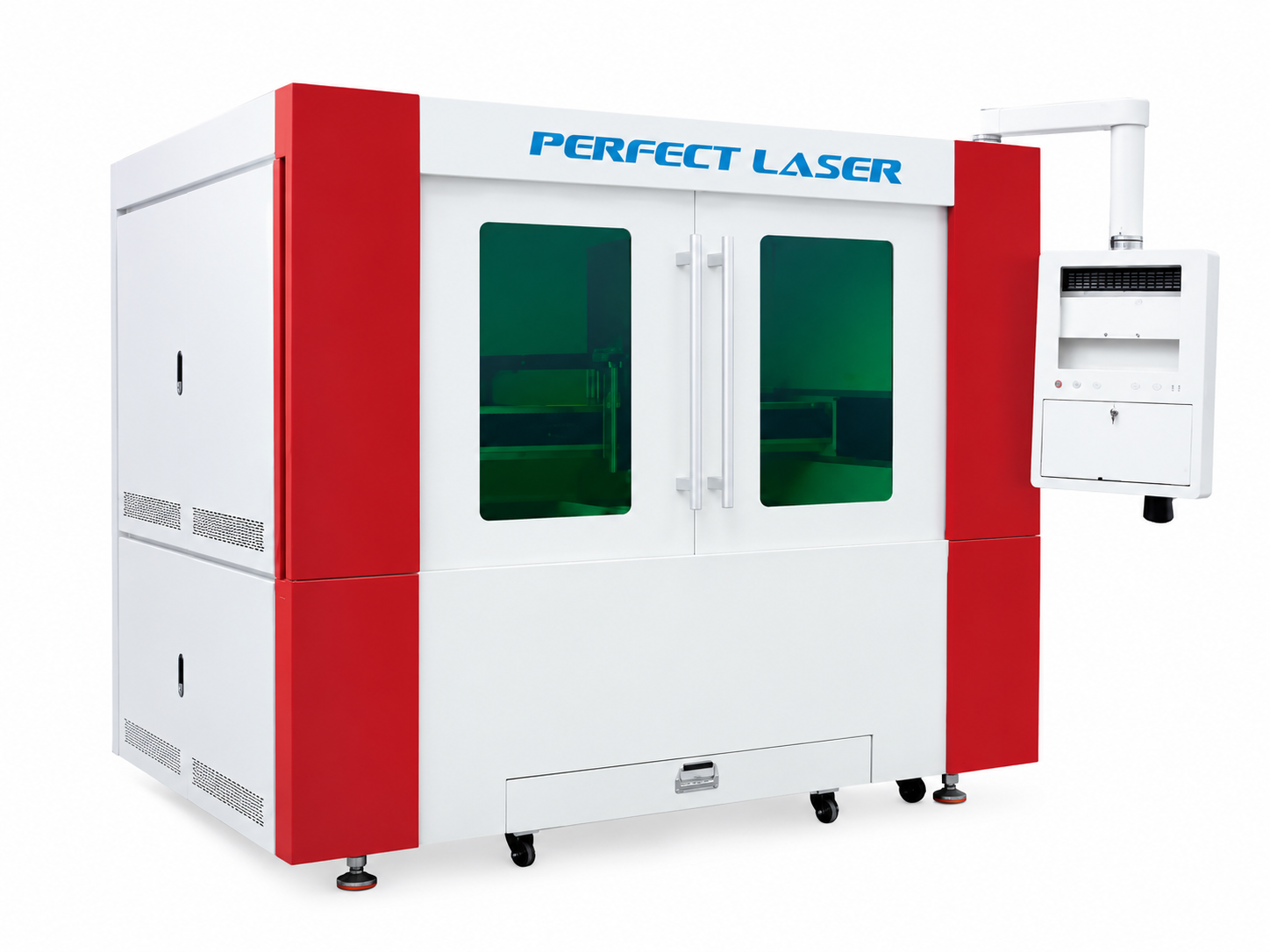

Small Scale Fiber Laser Steel Cutting Machine for Carbon Steel Cutting PE-F4040 6060 6040

Style NO. :

Product description

Perfect Laser specializing in the production of various laser cutter and engraver. In order to meet the market processing needs of new and old customers, Perfect Laser recently developed a small scale cheap laser cutting machine: model PE-F4040 6060 6040.

Small Scale Fiber Laser Cutter is suitable for the small metal cutting, we have the 400*400mm, 600*600mm and 600*400mm working area for customer. This kind of small laser metal cutting machine is not only save the space to customer, but also save the cost and the use ratio. The appearance of the fiber laser cutter is very small and easy to move. At the same time, the small laser metal cutting machine with the high precision and fast speed. No consumable, maintenance-free and has long life are the most advantages of the fiber laser cutter. All in all, this small laser metal cutting machine is the best choice for cutting small metal requirement customers.

Product features

1. Low operation cost: The power consumption of the metal sheet cutting machine is only 70-80% of Co2 laser.

2. High cutting speed: The speed of the metal sheet cutting machine is 2-3 times faster than YAG or Co2 laser.

3. High cutting accuracy: The finest laser beam of the fiber laser cutter is up to 0.01mm.

4. Low maintenance: This kind of fiber laser cutter is almost totally free of maintenance.

5.The small laser metal cutting machine is adopted advanced Germany technology, ensure most high tech in the world.

6.With advanced optical system: To ensure excellent laser beam quality can strongly improve the laser power and laser beam quality.

7.With dynamic auto-focus system: To keep the same distance between the metal sheet and laser head. So that the fiber laser cutter realized the accuracy of cutting effect.

8.With pre-run function: To simulate the laser cutting path, Pre-run the cutting path in advance, ensure finding the accurate cutting position for the fiber laser cutter.

9.With red light pointer: As the laser beam is in-visible, we adopt red light pointer to indicate the real position of the laser beam make cutting more accurate.

10.With unique mirrors and lens cooling technology: All mirrors and lens is cooled by water. Takes the mirror heat during working. Prolong it’s lifetime. Save future operation cost.

11.With auto oil-filling system.

Application

Applied materials: This kind of metal sheet cutting machine is widely applied in carbon steel cutting, mild steel, stainless steel, silicon steel, aluminum alloy, titanium alloy, galvanized steel sheet, pickling board, aluminum zinc plate, copper and many kinds of metal materials.

Applied Industry: This kind of metal sheet cutting machine is widely applied in sheet metal processing, aviation, spaceflight, electronics, electrical appliances, subway parts, automobile, machinery, precision components, ships, metallurgical equipment, elevator, household appliances, gifts and crafts, tool processing, adornment, advertising, metal foreign processing various manufacturing processing industries.

Technical Parameters

Model

PE-F4040

PE-F6040

PE-F6060

Laser type

Fiber laser

Laser power

200w/300w/500w

Max.cutting thickness(CS)

1-2mm(200w)/1-3mm(300w)/1-5mm(500w)

Laser technology

Germany technology

XY working area

400*400mm

600*400mm

600*600mm

Laser source

Germany import laser fiber laser source

Max. cutting speed

5-20meters/min(up to materials)

Max. location speed

60m/min

Laser wavelength

1070nm

Minimum line width

0.1mm

Location precision

±0.05mm

Re-location precision

±0.02mm

Max. Moving speed

100m/min

Supporting format

PLT,DXF,BMP,AI

Power demand

380V/50Hz

Cooling way

Water cooling

Worktable max. load

1000kgs

Transmission method

Ball screw transmission

Table-driven system

Japanese imported Yaskawa servo motor& driving system

Taiwan Hiwin/KH Precision Gear Track

Taiwan Hiwin/KH Precision Ball Track

Focus method

Following and automatic adjust focus

Control method

Offline movement control

Control software

Perfect laser professional laser cutting software
