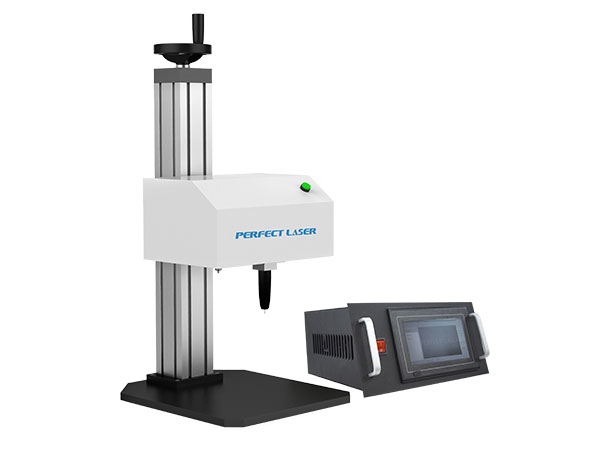

PEDQ-100E LCD Control Dot Peen Marking Machine

Style NO. :

Introduction
Perfect Laser is world leading nameplate marking machine manufacturers.
Our nameplate marking machine is a kind of pneumatic marking machine that works by the vibration caused by the compressed air and the mechanical device.
The nameplate marking machine contains complete LCD control screen, integrates PC, display, and control system, that means it can work offline without computer.
The nameplate marking machine is convenient and effective for work.
Product Features
1.The nameplate marking machine takes complete LCD control screen, integrates PC, display, and control system into one unit. There is no need to work with computer, and its smaller size can save space, easier to operate and high efficiency.
2.The processed letters, words, or graphics can be saved in a U disk, then input to the machine, it can work offline without computer, more convenient to operate and working efficiency much enhanced.
3.The marking pin head adopts imported hard alloy, and is made up by precision mould and molding for once. The rigidity of marking needle can reach-HRC92. Its’ excellent processing ability during work ensures the accuracy of high-speed marking and can make perfect marks on the work-pieces.
4.Permanent part marking machine adopts American MAC “High-Frequency Valve”. The vibration lifespan can reach 0.1-0.2 billion times, so as to ensure the long and stable operation of the machine.
5.Adopt Japan OMRON brand “positioning switch”, which can guarantee high accuracy& steadily performance.
6.Adopt Germany original “linear-moving guide rail”, it can lubricate automatically. Enable air-proof as well as dust-proof. Therefore, it guarantees the equipment with long-time stable performance & high accuracy.
7.Adopt “marking steel-sheath system”, which own-exploited by Perfect Laser, had solved the problem of big-noise that frequently occurred in dot marking system during marking processing. What’s more, with the advantages of little abrasion rate & only require about 0.2Mpa air pressure, so our machines are economical to avoid unnecessary wasting in energy & cost.
8.The lifetime could exceed 10 years. The average MTTF could exceed 15000 hours. This machine is free of maintenance and low running cost.
9.Support multi-kinds font: MG Font, SHX Font in Auto CAD, CHR in Borland, TTF in Windows.
10.The software is with powerful edit function, can layout any kind of characters and graphics, and is compatible with AutoCAD software.
Application
The nameplate marking machine is applicable for the fields of automobile, motorcycle, mechanism, aeronautical and space, electric apparatus and is suitable for all kinds of metal and hard plastic marking on steel, such as stainless steel marking, mild steel plate marking, iron marking, aluminum marking, copper marking, brass marking, anodized and coated materials marking, hard plastic material marking, etc. Permanent part marking is an industrial marking equipment which can make logo (characters, letters, VIN code, serial numbers, date and graph) on work piece (metal / no-metal materials) permanently.
The nameplate marking machine can be also called permanent part marking machine, marking metal machine,aluminum marking machine,engine marking machine, dot peen marking machine for sale.
Technical Data
Item
LCD Desktop Nameplate Marking Machine
Model
PEQD-100E
Standard Marking Area
150×100mm
200×100mm
300×200mm
400×300mm
Customized
Marking Depth
0.01~2mm
Marking Speed
≤50mm/s (for Characters Height of 3mm / 3-4 Numbers /Second)
Air Pressure
0.2-0.6Mpa
Z-Axis Lifting Range
0-300 mm or Customized
Marking Accuracy
0.01 mm
Pin Hardness
HRC 92
Power Supply
220V±10%, 50HZ
Air Pressure
0.2-0.6 Mpa
Machine Power
≤400 W
Working Environment
-5~40 ℃
Whole Machine Weight
56 Kgs
Measurement
0.15 m2
