Multi-Function Laser Welding Machine

Style NO. :

Product Description

Perfect Laser is a leading brand for professional laser welding machine . In order to satisfy the different needs of the market for laser welding, Perfect Laser developed a type of Multi - function laser welding machine.

With the help of CNC 2000 control system, this welding machine can automatically generate the movement trajectory according to the specific shape of the workpiece to control all functions and make best welding effect.

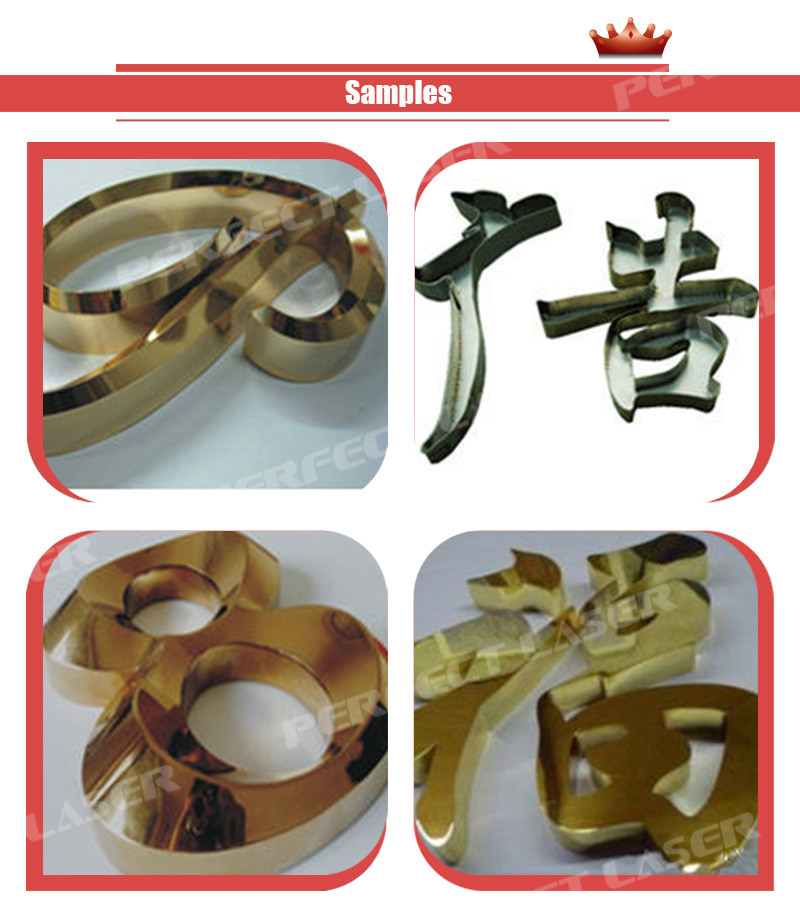

Application

Application Field: aviation, machinery, electronics, communications, power, chemical, automobile manufacturing, institutions and research institutes and other industries. Such as auto parts welding, lithium-ion battery sealing welding, electronic components such as precision spot welding.

Production Feature

1.High conversion efficiency, high energy stability, good beam mode.the overall performance of the device has significantly improved, which enhanced the operation of the equipment ductility. Wide range of applications, and easy to operate.

2.Integrated designs, beautiful and gorgeous appearance, compact and reasonable structure.

using Germany's advanced combined gold-plated reflective laser cavity technology, high output power, excellent beam mode.

3.Double pulse xenon lamp, constant current switching power supply, programmable pulse and intelligent system management, and it has a misuse and over-temperature water flow automatic protection.

4.Three-axis table system and light guide system by the IPC or CNC control, so it can achieve three or four-axis movement.

5.Optional closed chamber or airtight room, manual table lifting mechanism, automatic rotation mechanism and coaxial monitoring system and other institutions.

6.The width of the weld is small, the heat affected area is small, Also the deformation is small, and the welding speed is fast and so on.

7.Welding groove is smooth and beautiful, no need to deal with anything after welding, high welding quality, no pores, this can reduce or optimize the base metal impurities, welding can be refined after welding.

8.It can achieve precise automatic control, little laser output power changes, and focus spot is small, high precision positioning.

9.It comes with a rotating fixture, and can weld the round tube and other special parts.

10.Automatically welding or manual welding can be selected to rapidly weld all kinds of components.



Technical Data

No.

Project

Tender specifications

Model

PE-W500D 300D 400D

1

Input voltage

Three-phase four-wire system, 380V ± 5%

2

Maximum output power


12KW

3

Full mirror

Reflectivity≥99.7%

4

Power supply feedback type

Current feedback

5

Condenser chamber

Gold-plated single-chamber design, dual-lamp

single rod

6

Laser wavelength

1.064μm

7

Beam divergence angle

≤8mrad/m

8

Peak output power

500W

9

Laser head adjustment

360 degrees

10

Pulse frequency

1~150Hz

11

Pulse Width

0.1~20ms

12

Current regulation

50-500A

13

Beam expander

3 times

14

Focus spot diameter

0.2-2mm

15

X-axis and Y-axis travel

X*Y=300mm*300mm

16

Table size

X*Y=400mm*400mm

17

Moving speed range

0-50mm/s

18

Reset accuracy

0.03mm

19

positioning accuracy

≤0.025mm

19

Z axis

Electric lift height 200mm

Manual lift 100mm

20

Rotating fixture

Diameter Ф100mm rotating fixture, angle 0-90º manually adjustable, can be locked in any

position between them, using stepper motor

drive, step equivalent of 0.01 degrees,

positioning

accuracy of 0.1 degrees, repeat positioning

accuracy of 0.05 degrees

21

Displaying method

Coaxial CCD LCD screen observation

22

Targeting method

Positioning method red + positioning rod

23

way of light

Automatic + manual switchable

24

Cooling system

Double cycle system, heat exchange titanium

tube, over temperature alarm, flow protection,

water level protection.

25

Control System

Industrial computer

CNC2000 control software
