Perfect Laser auto cutting channel letter benders machine for LED logo

Home > Advertising Machinery > Channel Letter Bender > PEL-300

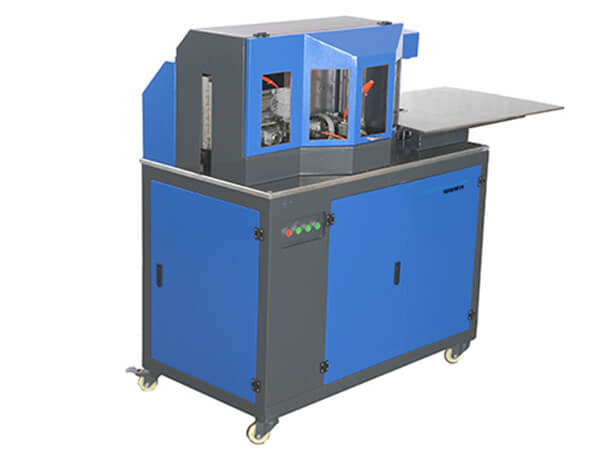

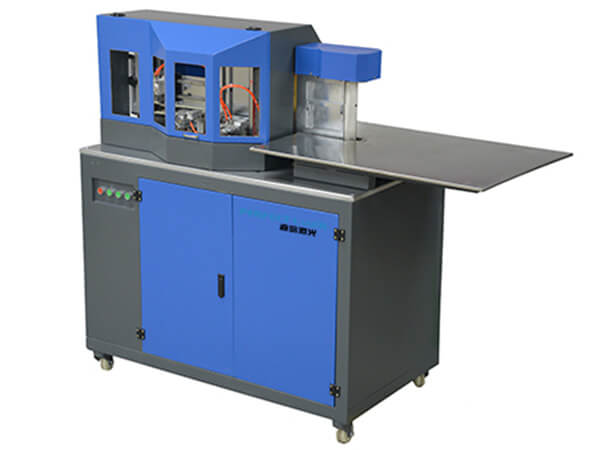

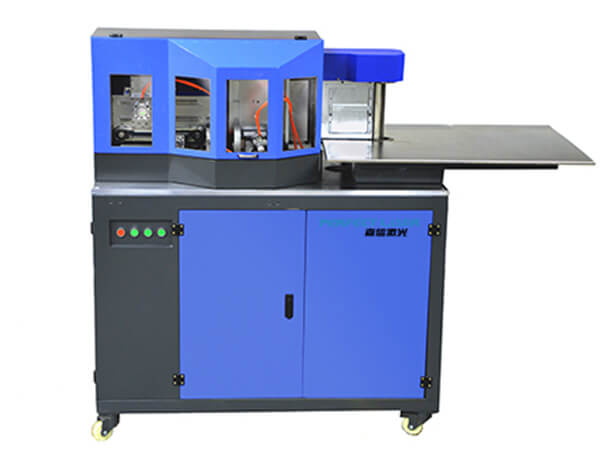

Channel Letter Bender with Edge Auto Cutting Function-PEL-300
Channel Letter Bender with Edge Auto Cutting Function-PEL-300
Channel Letter Bender with Edge Auto Cutting Function-PEL-300
Channel Letter Bender with Edge Auto Cutting Function-PEL-300
Channel Letter Bender with Edge Auto Cutting Function

Model: PEL-300


Introduction

Our auto edge cutting channel letter benders are new benders for LED logo.It can be applied in signs, Iron production, and other advertising production. Also, the auto cutting channel letter benders have a special function which is to cut the letter edge after bending.

The auto cutting channel letter benders can be called auto cutting channel letter benders,auto letter bender,benders for LED Logo,channel letter benders for logo.

Application
The auto cutting channel letter benders is widely used in aluminum strip letters, stainless steel letters, iron, galvanized steel, ect.
Features
1) Friendly man-machine interface, simple configuration, touch-screen operation. Simply enter the processing of text, graphic design files, and then the machine can process them on materials automatically.
2) A unique three-dimensional process simulation technology, two-dimensional design of the Channel Letter Benders for Logo file to be able to display three-dimensional effects, supplemented by translation, rotation, zoom and other functions, enables full observation and monitoring of whole working process.
3) Using original double-bent knife parallel bending technology, saving time and greatly improve the processing efficiency, the maximum bending angle of this auto letter bender can reach 130 °.
4) High precision machining, the Auto Letter Bender's feeding precision can reach 0.01mm, bending accuracy up to 0.4 .
5) With precision automatic calibration function, based on the way of the processing material, self-adjusting process parameters, the Auto Cutting Channel Letter Benders can match with a variety of engraving machines and cutting machine meet a variety of complex embedded process accuracy as much as possible.
Technical Data

Item No

Bend Material

Max Cutting Thickness / Width

PEL-100 Computer Control Type

Aluminum

Computer Control Type, only used to bend Aluminum Strip

(0.5-1.5MM thickness /12-18CM width).

PEL-200
Conputer Control Type

Aluminum

Conputer Control Type.

Aluminum: 0.5 - 1.5 MM / 10-18CM width.

Stainless S

0.5-1.0 MM / 18CM

Carbon Steel

0.5-1.2 MM / 18CM

(If 1.5MM,price a little different)

Mild Steel

0.5-1MM / 18CM

Iron Steel

0.5-1.0 MM / 18CM

Galvanize Plate

0.5-1.2 MM / 18CM

PEL-300
Auto Bending & Cutting Type

Aluminum

Auto Bending & Cutting Type. Aluminum: 0.5 - 1.5 MM thickness. (This model has the function of Automatic Cutting the Letter after finishing bending)

Stainless S

0.5-1.0 MM / 18CM

(If 1.5MM thickness,we have another machine)

Carbon Steel

0.5-1.2 MM / 18CM

Mild Steel

0.5-1 MM / 18CM

Iron Steel

0.5-1.0 MM / 18CM

Galvanize Plate

0.5-1.2 MM / 18CM

PEL-400
LCD screen Control Type

Aluminum

LCD Touch Screen Control Type. Aluminum: 0.5 - 1.5 MM. (Adopt advanced LCD Touching Screen to control. No need PC system with the machine, Simple and compact.Only need computer to make drawing).

Stainless S

0.5-1.0 MM / 15 CM

(If cut 1.5MM thickness, we will have another machine)

Carbon Steel

0.5-1.2 MM / 15CM

Mild Steel

0.5-1 MM / 15CM

Iron Steel

0.5-1.0 MM / 15CM

Galvanize Plate

0.5-1.0MM / 15CM
